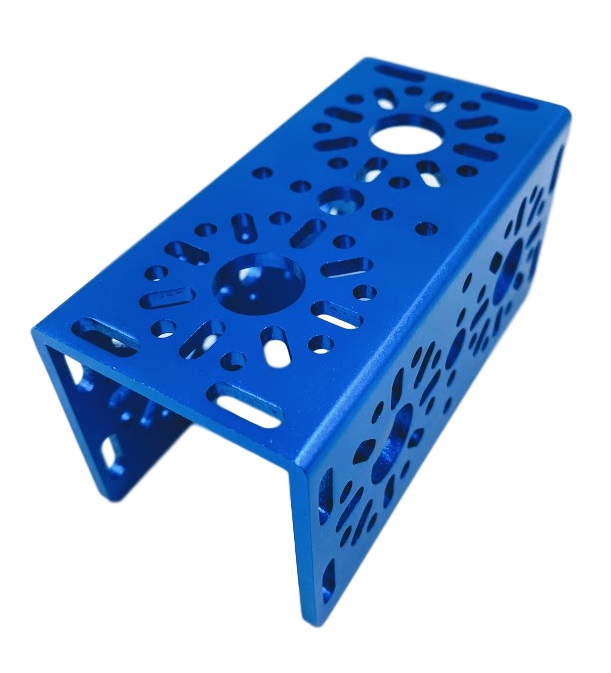

    96mm U-Channel (2 pack)

    Soyez le premier a tester ce produit

    The Studica U Channel is 3mm thick and has a 48mm x 48mm profile. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

    Specifications:

    • Material: 6061-T6 Aluminum
    • Thickness - 3mm
    • Height - 48mm
    • Width - 48mm
    • Length - 96mm
    • Hole pattern - 2
    • Step File
    # Pièce: 76017-2
    $13.88
    Disponibilité: 1056 en stock
