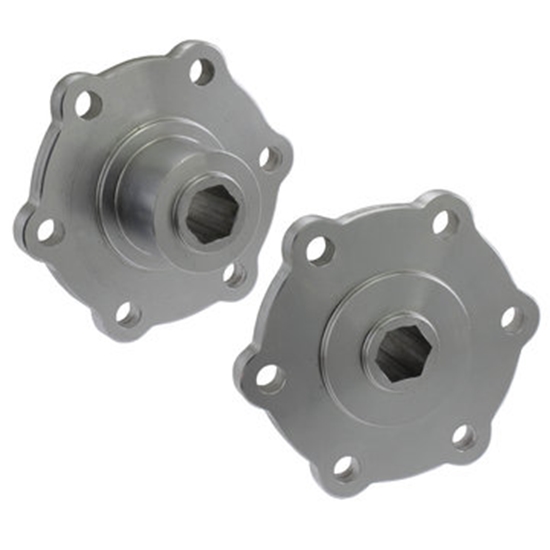

Andymark Hubs 1/2 in. Hex

This item can only be purchased in multiples of 25

Specifications:

• Material: Steel
• Coating: Zinc Plated
• Thread: #10-32
• Thickness: 0.249"
• Thread: Fine
• Thread Size: 32
• Type: Nylon Insert Lock Nut
• Wrench Size: 3/8"

Specifications:

• Material: Steel
• Coating: Zinc Plated
• Thread: 10-32
• Length: 3/4"
• Head: Socket Head Cap Screw

Specifications

• Drive: 5/32 in. Hex
• Finish: Zinc
• Head: Socket Cap
• Length: 1.5 in.
• Material: Steel
• Thread: 10-32
• Weight: 0.02 lbs

This item can only be purchased in multiples of 10

Must be ordered in mulitples of 25

Specifications:

• Material: Steel
• Coating: Zinc plated
• Thread: 1/4-20
• Length: 1/2"
• Head: Button Head Cap Screw

This is a Trilobe, thread forming, or thread rolling screw, ideal for applications where the screw is being threaded into plastic or metal.

A flat washer is part of the 5/16 hex head, providing more surface area contact than a regular hex head. The increased bearing area decreases the likeliness of crushing mating surfaces. Trilobe, or Thread Rolling, screws have a blunt tapered point that requires a pre-drilled or punched hole; eliminates chips and permits replacement with standard screw. Zinc plating froms a zinc carbonate film that greatly retards the corrosion rate in a normal atmosphere, which is similar to the aluminum oxide film that forms on aluminum that accounts for its low corrosion rate.

Product Overview:

• Quantity: 50
• Diameter: #10
• Finish: Zinc
• Head: 5/16 Hex with integral washer
• Thread Length: 3/4"
• Material: Steel
• Thread Size: 10-24
• Thread Type: Trilobe, Thread Rolling
• Weight per Screw: 0.007 lbs
• Package Weight: 0.34 lbs

This is a Heavy Duty Hex Bearing which outperforms our previous 1/2" Hex Bearings as it has a Heavy Duty Inner Race. This FR8ZZ-HexHD bearing, 1/2" hex bore, flanged, heavy duty inner race, shielded ball bearing, has an inner race that is thicker and stronger than our recent offering of a similar bearing (am-0279). This bearing has more material between the corners of the hex bore and the edge of the race making it stronger and much less likely to crack under high load.

This bearing is guaranteed to have a stronger, thicker race. 100% of these bearings have been quality checked for a smooth fit over 1/2" hex stock here at AndyMark. Many of our long-time customers will recognize this bearing, as it is the same version we sold back in 2008-2011, and we did not have any failures. Now, it is renamed and quality checked for your high load needs - including drive chassis with cantilevered wheels.

Specifications:

• Inside diameter: 0.500-0.502 inch hex bore
• Outside diameter: 1.125 inch
• Flange thickness: 0.062 inch
• Overall thickness: 0.312 inch
• Weight: 0.05 pound

Compliant wheels are not intended for moving robots, but moving objects. Compliant wheels give way to allow rigid objects to be manipulated easily. A line of multiple wheels on a driven hex shaft creates a very effective roller that ignores variations in the objects being driven. This makes for high-performance intakes and internal conveyors. The wheels are sized for an interference fit and tend to stay in place on a shaft, though a shaft collar may be used to make absolutely sure the wheels stay clear of other mechanisms or maintain consistent spacing.

The hex bore versions of this wheel are undersized, and are intended to be an interference fit on their respective hex shafts. This interference fit allows for effective torque transfer from the hex shaft to the wheel, as well as allowing the wheel to remain in place along the shaft without the need for spacers or collar clamps:

Different durometer ratings give each wheel unique characteristics. Green wheels (35A durometer) are the softest and most compliant around objects, while orange (40A), maroon (45A), and blue (50A) wheels are increasingly firm. The increased firmness also allows the latter wheels to carry a higher RPM rating. Check out the downloads tab for a chart showing wheels and their maximum RPM.

Specifications

• Bore: 1/2 in. Hex, 3/8 in. Hex, Nub Bore
• Diameter: 2 in.
• Durometer: 35A (Green), ⠀40A (Orange), ⠀45A (Maroon), ⠀50A (Blue), 60A (Black)
• Hole Pattern: Qty 2 3.5 mm Holes on a 16 mm Circle for 8 mm bore wheels
• Material: TPU
• Maximum RPM: 6000 - 9000
• Weight: 0.035 lb.
• Width: 0.5 in.

Documents

Layout Print(s)

am-3571 2IN 375 Hex Compliant Wheel REV3.PDF

am-3462 2IN 500Hex Compliant Wheel REV3.PDF

am-3572 2IN 8mm Compliant Wheel REV4.PDF

CAD File(s)

am-3571 2IN 375Hex Compliant Wheel REV2.STEP

am-3572 2IN 8mm Compliant Wheel REV2.STEP

am-3462 2IN Molded 500Hex Compliant Wheel REV2.STEP

Additional File(s)

2 inch Compliant Wheel Expansion.pdf

Don't see what you need?

Specifications:

• Material: Steel
• Coating: Zinc plated
• Thread: 1/4-20
• Width across hex: 7/16"

This item can only be purchased in multiples of 25

This is a thread rolling screw that is 0.75 in. long.

This item can only be purchased in multiples of 10

Specifications

• Drive: 3/8 in. Unslotted Hex
• Finish: Zinc
• Length: 0.75 in.
• Material: Steel
• Thread: 1/4-20
• Weight: 0.02 lbs
