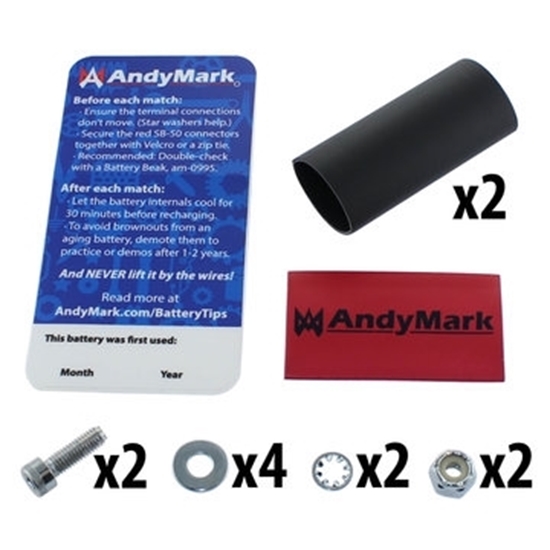

Battery Cable Hardware Kit

This item can only be purchased in multiples of 25

Specifications:

• Material: Steel
• Coating: Zinc Plated
• Thread: #10-32
• Thickness: 0.249"
• Thread: Fine
• Thread Size: 32
• Type: Nylon Insert Lock Nut
• Wrench Size: 3/8"

This is a heavy-duty compression lug from BURNDY for 06 AWG wire. This compression log can be easily crimped with the Cable Lug Crimping Tool.

Specifications

• Gauge: 06 AWG
• Hole Size For Stud: 0.25 in.
• Material: Copper
• Overall Length: 2.03 in.
• Tongue Width: 0.48 in.
• Weight: 0.01 lbs
• Wire Strip Length: 1.18 in.

This spacer is used in the AM14U Family Vertical Battery Mount Kit (am-3964a) But is a great spacer for #10 screws wherever you might need it.

Specifications

• Inside Diameter: 0.192 in.
• Length: 1 in.
• Material: Aluminum
• Outside Diameter: 0.375 in.
• Wall Thickness: 0.09 in.

Anderson Power Products Connector with 2 contacts.

Specifications:

• Material (APP Connector): Red Plastic
• Weight: 0.060
• Mounting holes: 0.15" diameter, 3/4" apart

Included Hardware:

• One - SB-50A red plastic connector
• Two - Anderson Power Products crimp contacts (sized for 6 gauge wire)

Tip-to-tip length is approximately 12.6 inches.

You asked, we listened! These 3" diameter HD (heavy-duty) solid-core Compliant Wheels are intended for manipulating objects where you need a little 'give' in your intake system. These wheels deform out of the way to allow rigid objects to be manipulated easily. This makes for high-performance intakes and internal conveyors. These wheels do not require the use of expensive hubs to be driven, thanks to their integrated high strength polycarbonate hubs - which are made from the same mold that creates our Hex Molded Spacers.

Different durometer ratings give each wheel unique characteristics. Green compliant wheels (35A durometer) are the softest and most compliant around objects, while maroon (45A) blue (50A) and black (60A) wheels are increasingly firm.

Specifications

• Bore: 0.375 in. Hex, 0.5 in. Hex, 5 mm Hex
• Color: Green, Black, Blue, Black
• Core Material: Polycarbonate
• Diameter: 3 in.
• Durometer: 35A (Green), 40A (Orange), 50A (Blue), 60A (Black)
• Tread Material: TPU
• Weight: 0.12 lbs
• Overall Width: 1 in.

Documents

Layout Print(s)

am-3946 3IN 375Hex Compliant Wheel REV3.PDF

am-3945 3IN 500Hex Compliant Wheel REV3.PDF

am-4537 3in 5mm Hex Molded Compliant Wheel.PDF

CAD File(s)

am-3946 3IN 375Hex Compliant Wheel REV 3.STEP

am-3945 3IN 500Hex Compliant Wheel REV 3.STEP

am-4537 3in 5mm Hex Molded Compliant Wheel.STEP

Compliant wheels are not intended for moving robots, but moving objects. Compliant wheels give way to allow rigid objects to be manipulated easily. A line of multiple wheels on a driven hex shaft creates a very effective roller that ignores variations in the objects being driven. This makes for high-performance intakes and internal conveyors. The wheels are sized for an interference fit and tend to stay in place on a shaft, though a shaft collar may be used to make absolutely sure the wheels stay clear of other mechanisms or maintain consistent spacing.

The hex bore versions of this wheel are undersized, and are intended to be an interference fit on their respective hex shafts. This interference fit allows for effective torque transfer from the hex shaft to the wheel, as well as allowing the wheel to remain in place along the shaft without the need for spacers or collar clamps:

Different durometer ratings give each wheel unique characteristics. Green wheels (35A durometer) are the softest and most compliant around objects, while orange (40A), maroon (45A), and blue (50A) wheels are increasingly firm. The increased firmness also allows the latter wheels to carry a higher RPM rating. Check out the downloads tab for a chart showing wheels and their maximum RPM.

Specifications

• Bore: 1/2 in. Hex, 3/8 in. Hex, Nub Bore
• Diameter: 2 in.
• Durometer: 35A (Green), ⠀40A (Orange), ⠀45A (Maroon), ⠀50A (Blue), 60A (Black)
• Hole Pattern: Qty 2 3.5 mm Holes on a 16 mm Circle for 8 mm bore wheels
• Material: TPU
• Maximum RPM: 6000 - 9000
• Weight: 0.035 lb.
• Width: 0.5 in.

Documents

Layout Print(s)

am-3571 2IN 375 Hex Compliant Wheel REV3.PDF

am-3462 2IN 500Hex Compliant Wheel REV3.PDF

am-3572 2IN 8mm Compliant Wheel REV4.PDF

CAD File(s)

am-3571 2IN 375Hex Compliant Wheel REV2.STEP

am-3572 2IN 8mm Compliant Wheel REV2.STEP

am-3462 2IN Molded 500Hex Compliant Wheel REV2.STEP

Additional File(s)

2 inch Compliant Wheel Expansion.pdf

Don't see what you need?

Tip-to-tip length is approximately 12.6 inches. Want it longer or shorter? We offer this cable in custom lengths! Both end connectors are crimped with a 6-ton pneumatic crimping tool. One end has connections to attach to the battery and the other has an SB50 Anderson Connector. This cable is resistant to oil, most acids, grease, and even abrasion! That's a TOUGH cable.

Which do you prefer a stiff cable or a flexible cable? No matter your choice we have the best option in either camp. PVC insulated cables create a stiff wire route maintaining shape for repeatable connections. EPDM jacketed cables cand bend and twist to accommodate tight spaces and small places.

Specifications

• Connector : SB50, 1/4 in. Ring Terminal
• Gauge: 6
• Insulation: PVC or EPDM
• Operating Temperature: 257°F to -59°F
• Stranding: 263 inside EPDM Jacketed Wire
• Voltage: 60V Max
• Wire Type: Stranded

BLUE Cordura nylon bumper material. Each piece is 161 x 19.5 inches, enough to cover the entire perimeter of your FRC robot. The material is heavy-duty nylon cloth, much like the material used on backpacks.

Additional Information:


We also have stick-on numbers available (not included with material).

Specifications

• Color: Blue
• Denier: 1000
• Length: 161 in.
• Material: Nylon
• Width: 19.5 in.

RED Cordura nylon bumper fabric material. Each piece is 161 x 19.5 inches, enough to cover the entire perimeter of your FRC robot. The material is heavy-duty nylon cloth, much like the material used on backpacks.



Additional Information:


We also have stick-on numbers available (not included with the material).

Specifications

• Color: Red
• Denier: 1000
• Length: 161 in.
• Material: Nylon
• Width: 19.5 in.
