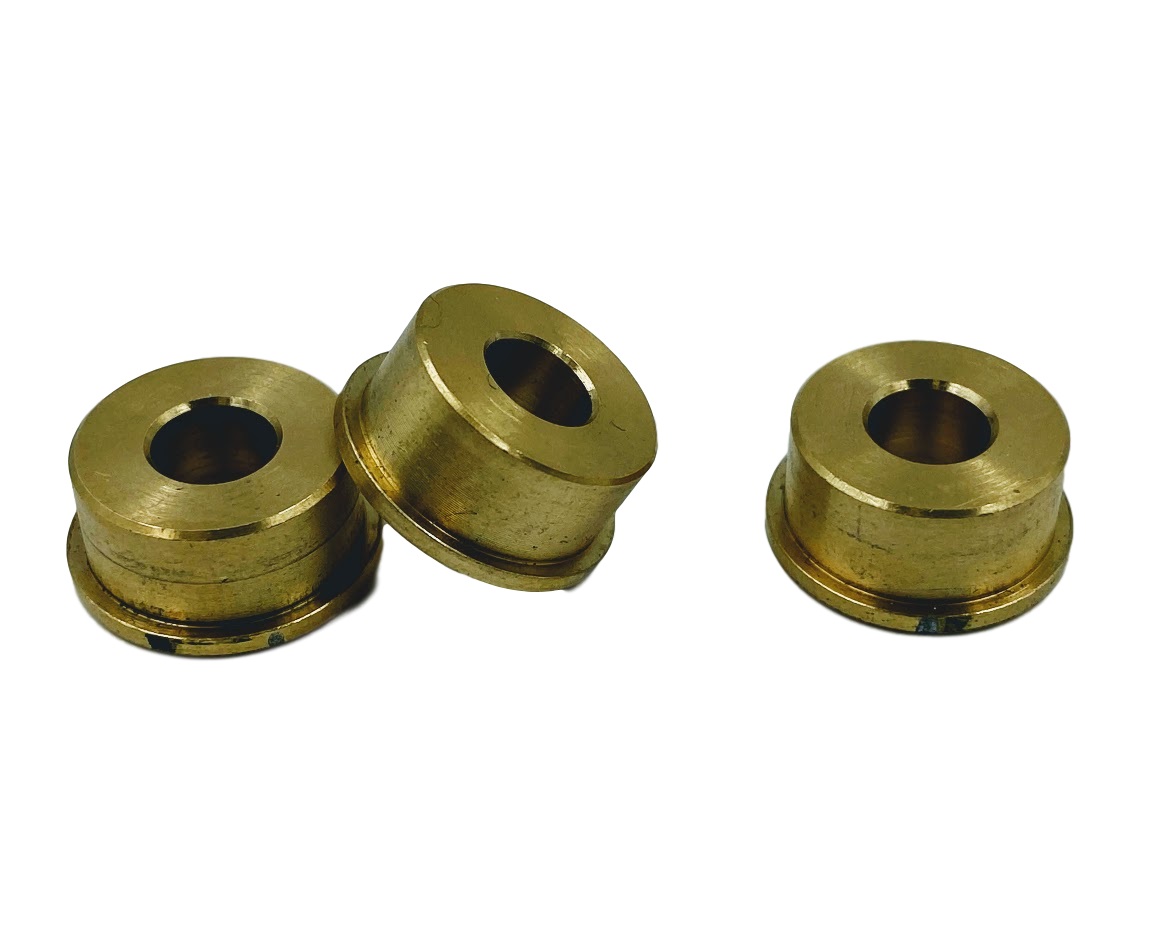

Bronze Bushing 6mm ID x 14mm OD (12 pack)

Soyez le premier a tester ce produit

The Bronze Bushing 6mm ID x 14mm OD fits any of the channel and flat brackets having the common center hole pattern of 14mm. The inside diameter will fit any of the D-Shaft axels.

Material: bronze
Inside Diameter: 6 mm
Outside Diameter: 14 mm

Step File

# Pièce: 76301-12

$31.94

Disponibilité: 1155 en stock

Quantité:

Commentaires

Écrivez votre propre commentaire

Le produit peut être examinée que après l'achat
Seul les utilisateurs enregistrés peuvent écrire une critique

Titre du commentaire:

texte du commentaire:

Notation:

Mal
Excellent

A également acheté

6mm D Shape Collar Clamp

#76320

$6.93

(1196 En stock)

May be used with 6mm D-Shape Shaft to secure wheels in their position.

Specifications:

Φ20.0mm*8.0mm thick
1*M3 thread for M3 SHCS on the clamp side
Φ6.0mm D hole
AL6061-T6
Step File

The Motor Mount Plate is used with the Maverick 12V DC Gear Motor (Part# 75001) to attach it inside the anyone of the U Channels 76010 to 76018. This is an example of a chassis with 4 motors mounted inside the U-Channel using a Motor Mounting Plate.

Step File

336mm U-Channel

#76012

$18.04

(1226 En stock)

The Studica U Channel is 3mm thick and has a 48mm x 48mm profile. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

Specifications:

Material: 6061-T6 Aluminum
Thickness - 3mm
Height - 48mm
Width - 48mm
Length - 336mm
Hole pattern - 7
Step File

30 Tooth Bevel Gear x 1-to-1 Set (2 pack)

#76219-2

$31.99

(606 En stock)

Used to change motor to axle motion 90 degrees. This can be used in between the U-channel.

Specifications:

Material: Steel
Number of teeth: 30
Set of 2 for 1-1 drives
Step File

Combination Wrench, 5.5mm

#70145

$9.71

(3386 En stock)

D-Shaft Collar 6mm ID, 12mm OD (6 pack)

#76304-6

$5.54

(1063 En stock)

The D-Shaft Collar is 6mm ID and 12mm OD. The inside diameter will fit any of the D-Shaft axels.

Specifcations:

Material: 6061-T6 Aluminum
Step File

192mm Square Beam

#76105

$9.02

(1196 En stock)

The Studica Square Beam is 8mm by 8mm. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

Specifications:

Material - Anodized 6061-T6 Aluminum
Holes - 3.5mm diameter spaced 8mm apart
Length - 192mm
Step File

2.5mm Hex Ball End Screwdriver

#70142

$8.32

(2270 En stock)

Used with M3 screws

TETRIX MAX TorqueNADO Motor Gearbox 20:1

#45424

$17.25

(17 En stock)

These gearboxes are designed with the same 37 mm diameter as the original 60:1 gearbox, while using the same 6 mm D-shaft and alignment pins, so getting the additional speed you need is a breeze.

432mm Low Profile U-Channel

#76025

$18.04

(618 En stock)

The Studica Low Profile U Channel is 3mm thick and has a 48mm x 14mm profile. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

Specifications:

Material: 6061-T6 Aluminum
Thickness - 3mm
Height - 14mm
Width - 48mm
Length - 432mm
Hole pattern - 9
Step File
