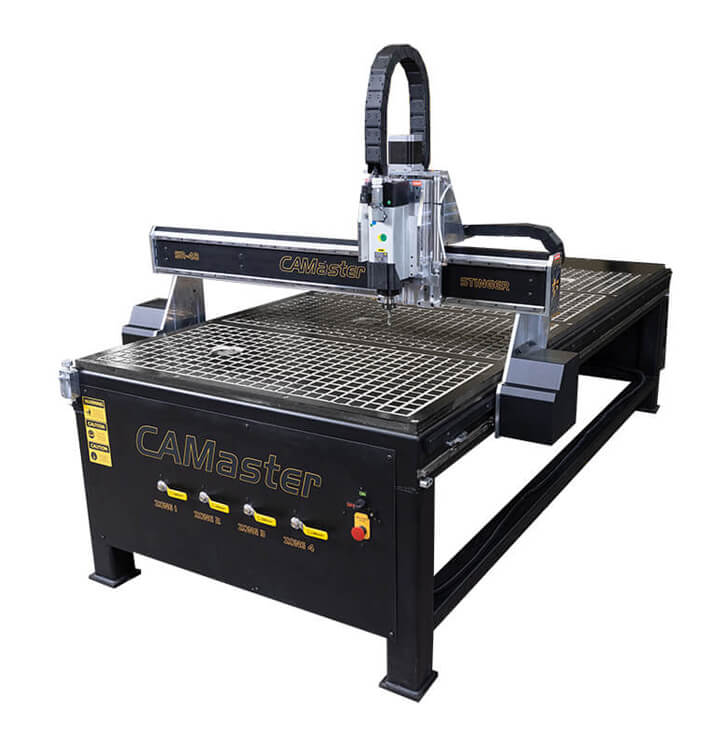

    CAMaster Stinger II - CNC Router (SR-44 - Cutting Size (X,Y,Z) 49” X 49” X 8”)

    CAMaster Stinger II CNC Router is the most industrial machine in its class. Each Stinger is made with high quality parts and backed by CAMaster CNC’s impeccable service. The Stinger II is constructed with a welded steel frame and industrial quality precision bearings with hardened steel rails on each axis, giving it a smooth and rigid travel at top speeds. Each machine is shipped fully assembled and tested to get the customer up and running as fast as possible.
    # Pièce: SR-44
    Demander un devis

    The Stinger II includes:

    • 3.25 HP Porter Cable Router
    • E Chain on all Axis
    • Hiwin Rails & Bearings on all Axis
    • Welded Steel Frame
    • Industrial quality electronic components
    • Dust Boot
    • Limit Switches on all Axis
    • Emergency Stop
    • Z-Zeroing Plate
    • 4th Axis ready gantry width
    • Control PC with 19” Monitor, Keyboard, & Mouse
    • WinCNC Industrial Controller
    • Free Tech Support and Fourm



    Stinger II SR-34 Router Specifications:

    • Cutting Size (X,Y,Z): 36” X 48” X 6”
    • Footprint Size: 66” X 79”



    Stinger II SR-44 Router Specifications:

    • Cutting Size (X,Y,Z): 49” X 49” X 8”
    • Footprint Size: 77” X 79”



    Specifications for both Stinger II models:

    • Rapid Speeds (X,Y,Z): 850,850,400 ipm
    • Cut Speeds (X,Y,Z): 500,500,300 ipm
    • Step Resolution: 0.0005”
    • Repeatability: 0.002” (+/-)
    • X and Y Axis Drive: Rack and Pinion
    • Z Axis Drive: Ball Screw
    • Standard Work Surface: Sealed 1” MDF



    Input Voltage:

    • Standard Router: 110V (15 A)
    • 1.0 KW Spindle: 110V (15 A)
    • 1.7 KW Spindle: 220V (20 A)
    • 3.0 KW Spindle: 220V (40 A)
    Écrivez votre propre commentaire
    • Le produit peut être examinée que après l'achat
    • Seul les utilisateurs enregistrés peuvent écrire une critique
    • Mal
    • Excellent

    The Stinger II includes:

    • 3.25 HP Porter Cable Router
    • E Chain on all Axis
    • Hiwin Rails & Bearings on all Axis
    • Welded Steel Frame
    • Industrial quality electronic components
    • Dust Boot
    • Limit Switches on all Axis
    • Emergency Stop
    • Z-Zeroing Plate
    • 4th Axis ready gantry width
    • Control PC with 19” Monitor, Keyboard, & Mouse
    • WinCNC Industrial Controller
    • Free Tech Support and Fourm



    Stinger II SR-34 Router Specifications:

    • Cutting Size (X,Y,Z): 36” X 48” X 6”
    • Footprint Size: 66” X 79”



    Stinger II SR-44 Router Specifications:

    • Cutting Size (X,Y,Z): 49” X 49” X 8”
    • Footprint Size: 77” X 79”



    Specifications for both Stinger II models:

    • Rapid Speeds (X,Y,Z): 850,850,400 ipm
    • Cut Speeds (X,Y,Z): 500,500,300 ipm
    • Step Resolution: 0.0005”
    • Repeatability: 0.002” (+/-)
    • X and Y Axis Drive: Rack and Pinion
    • Z Axis Drive: Ball Screw
    • Standard Work Surface: Sealed 1” MDF



    Input Voltage:

    • Standard Router: 110V (15 A)
    • 1.0 KW Spindle: 110V (15 A)
    • 1.7 KW Spindle: 220V (20 A)
    • 3.0 KW Spindle: 220V (40 A)
