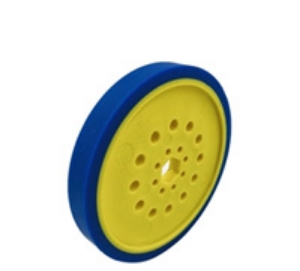

100mm Drive Wheel - 50A - 12.5mm wide - 1/2" Inner Hex - Blue
The 100mm Drive Wheel (4") can be used as a simple wheel providing good traction on carpet and tile flooring. They can also be used for intake systems.
Use with 1/2" hex shaft of use 6mm Shaft Hub to use connect 6mm D-Shaft Axles.
Specifications:
- Diameter: 100mm (4")
- Axial width: 12.5mm
- Hub: 1/2" Inner Hex
- Inner Material: Molded Plastic in Yellow
- Outer Material: TPU Polyurethane in Blue
- Outer Material Durometer: 50A
- Weight: 0.068kg
- Step File

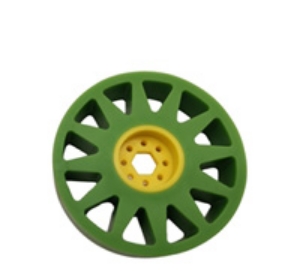

100mm Flex Wheel - 35A - 25mm wide - 1/2" Inner Hex - Green
The 100mm (4") Flex Wheel can be used for intake systems and conveyors.
Specifications:
- Diameter: 100mm (4")
- Axial width: 25mm
- Hub: 1/2" Inner Hex
- Inner Material: Molded Plastic in Yellow
- Outer Material: TPU Polyurethane in Green
- Outer Material Durometer: 35A
- Weight: 0.038kg
- Step File
100mm Flex Wheel - 50A - 25mm wide - 1/2" Inner Hex - Blue
The 100mm (4") Flex Wheel can be used for intake systems and conveyors.
Specifications:
- Diameter: 100mm (4")
- Axial width: 25mm
- Hub: 1/2" Inner Hex
- Inner Material: Molded Plastic in Yellow
- Outer Material: TPU Polyurethane in Blue
- Outer Material Durometer: 50A
- Weight: 0.038kg
- Step File
100mm Flex Wheel - 60A - 25mm wide - 1/2" Inner Hex - Black
The 100mm (4") Flex Wheel can be used for intake systems and conveyors.
Specifications:
- Diameter: 100mm (4")
- Axial width: 25mm
- Hub: 1/2" Inner Hex
- Inner Material: Molded Plastic in Yellow
- Outer Material: TPU Polyurethane in Black
- Outer Material Durometer: 60A
- Weight: 0.038kg
- Step File

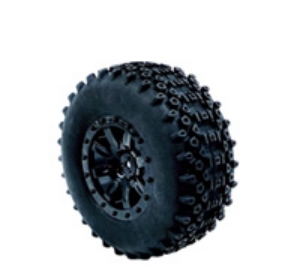

110mm All-Terrain Tire w/6mm Adapter
- Diameter: 110mm
- Width: 45mm
- Inner diameter of wheel frame: 75mm
- Hexagon connector: 12mm
- Unit weight: 128g
- 6mm axle adapter
38mm Omni Wheel
The 38mm Omni Wheel was designed as an odometry wheel that can fit inside most channel sizes. For ease of use, three cores were designed to fit 6mm D-Shaft, 5mm Hex Shaft, and 7mm Hex Shaft. The wheel is open for easy use in any ecosystem with the provided different-sized cores.
Specifications:
- Diameter: 38mm
- Number of rollers: 8
- Body Material: Delrin
- Roller Material: TPE/TPU 80A
- Max Load: 2kg
- Weight:
Includes,
- 38mm Omni wheel
- 38mm 6mm D-Shaft Hub, pre-installed
- 38mm 5mm Hex Shaft Hub
- 38mm 7mm Hex Shaft
All Terrain Pack
Includes,
- 4 - 110mm All-Terrain Tire 2/6mm Adapter 76250
- 2 - Shock Absorber, 1/10 Aluminum, 100mm (2 pack) 76351-2
- 1 - 6mm x 96mm D-Shaft (6 pack) 76161-6
- 1 - Collar 6mm ID D-Shaft, 12mm OD (6 pack) 76304-6
- 1 - Flange Bearing 6mm ID, 14mm OD, 15mm Flange (12 pack) 76302-12
- 1 - Shaft Spacer Plastic 6mm ID x 10mm OD x 1mm L (24 pack) 76305-24

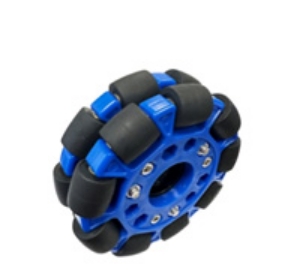

100mm Omni Wheel
The 100mm (4 inch) Double Plastic Omni Wheel provides rotational and sideways 360° maneuverability. Great for omni directional movement and rotation, easy direction control and tracking, and for fast turning,
100mm Drive Wheel - 50A - 25mm wide - 1/2" Inner Hex - Blue
The 100mm (4") Drive Wheel can be used as a simple wheel providing good traction on carpet and tile flooring. They can also be used for intake systems.
Use with 1/2" hex shaft of use 6mm Shaft Hub to use connect 6mm D-Shaft Axles.
Specifications:
- Diameter: 100mm (4")
- Axial width: 25mm
- Hub: 1/2" Inner Hex
- Inner Material: Molded Plastic in Yellow
- Outer Material: TPU Polyurethane in Blue
- Outer Material Durometer: 50A
- Weight: 0.068kg
- Step File
50mm Drive Wheel - 35A - 25mm wide - 1/2" Inner Hex - Green
The 50mm (2") Drive Wheel can be used as a simple wheel providing good traction on carpet and tile flooring. They can also be used for intake systems.
Use with 1/2" hex shaft of use 6mm Shaft Hub to use connect 6mm D-Shaft Axles.
Specifications:
- Diameter: 50mm (2")
- Axial width: 25mm
- Hub: 1/2" Inner Hex
- Inner Material: Molded Plastic in Yellow
- Outer Material: TPU Polyurethane in Green
- Outer Material Durometer: 35A
- Weight: 0.038kg
- Step File
50mm Drive Wheel - 40A - 25mm wide - 1/2" Inner Hex - Orange
The 50mm (2") Drive Wheel can be used as a simple wheel providing good traction on carpet and tile flooring. They can also be used for intake systems.
Use with 1/2" hex shaft of use 6mm Shaft Hub to use connect 6mm D-Shaft Axles.
Specifications:
- Diameter: 40mm (2")
- Axial width: 25mm
- Hub: 1/2" Inner Hex
- Inner Material: Molded Plastic in Yellow
- Outer Material: TPU Polyurethane in Orange
- Outer Material Durometer: 40A
- Weight: 0.038kg
- Step File
50mm Drive Wheel - 50A - 25mm wide - 1/2" Inner Hex - Blue
The 50mm (2") Drive Wheel can be used as a simple wheel providing good traction on carpet and tile flooring. They can also be used for intake systems.
Use with 1/2" hex shaft of use 6mm Shaft Hub to use connect 6mm D-Shaft Axles.
Specifications:
- Diameter: 50mm (2")
- Axial width: 25mm
- Hub: 1/2" Inner Hex
- Inner Material: Molded Plastic in Yellow
- Outer Material: TPU Polyurethane in Blue
- Outer Material Durometer: 50A
- Weight: 0.038kg
- Step File
50mm Drive Wheel - 60A - 25mm wide - 1/2" Inner Hex - Black
The 50mm (2") Drive Wheel can be used as a simple wheel providing good traction on carpet and tile flooring. They can also be used for intake systems.
Use with 1/2" hex shaft of use 6mm Shaft Hub to use connect 6mm D-Shaft Axles.
Specifications:
- Diameter: 50mm (2")
- Axial width: 25mm
- Hub: 1/2" Inner Hex
- Inner Material: Molded Plastic in Yellow
- Outer Material: TPU Polyurethane in Black
- Outer Material Durometer: 60A
- Weight: 0.038kg
- Step File
75mm Drive Wheel 60A 12.5mm wide 1/2" Inner Hex Black
The 75mm Drive Wheel can be used as a simple wheel providing good traction on carpet and tile flooring. They can also be used for intake systems.
Use with 1/2" hex shaft of use 6mm Shaft Hub to use connect 6mm D-Shaft Axles.
Specifications:
- Diameter: 75mm
- Axial width: 12.5mm
- Hub: 1/2" Inner Hex
- Inner Material: Molded Plastic in Yellow
- Outer Material: TPU Polyurethane in Black
- Outer Material Durometer: 60A
- Weight: 0.05kg
- Step File
Wheel Pack
Includes,
- 4 - 100mm Drive Wheel, 50A, 12.5mm wide, 1/2" Inner Hex, Blue 76261
- 4 - 100mm Drive Wheel, 50A, 25mm wide, 1/2" Inner Hex, Blue 76262
- 4 - 50mm Drive Wheel, 50A, 25mm wide, 1/2" Inner Hex, Blue 76269
- 4 - 100mm Omni Wheel 76272
- 2 - 6mm x 96mm D-Shaft (6 pack) 76161-6
- 1 - 6mm x 432mm D-Shaft (2 pack) 76162-2
- 1 - Bushing Bronze 6mm ID x 8mm OD (12 Pack) 76300-12
- 1 - Bushing Bronze 6mm ID x 14mm OD (12 Pack) 76301-12
- 1 - Flange Bearing 6mm ID, 14mm OD, 15mm Flange (12 Pack) 76302-12
- 3 - 6mm Shaft Hub (4 pack) 76284-4
- 2 - Collar 6mm ID D-Shaft, 12mm OD (6 pack) 76304-6
- 1 - Shaft Spacer Plastic 6mm ID x 10mm OD x 1mm L (24 pack) 76305-24
100mm Flex Wheel - 40A - 25mm wide - 1/2" Inner Hex - Orange
The 100mm (4") Flex Wheel can be used for intake systems and conveyors.
Specifications:
- Diameter: 100mm (4")
- Axial width: 25mm
- Hub: 1/2" Inner Hex
- Inner Material: Molded Plastic in Yellow
- Outer Material: TPU Polyurethane in Orange
- Outer Material Durometer: 40A
- Weight: 0.038kg
- Step File
