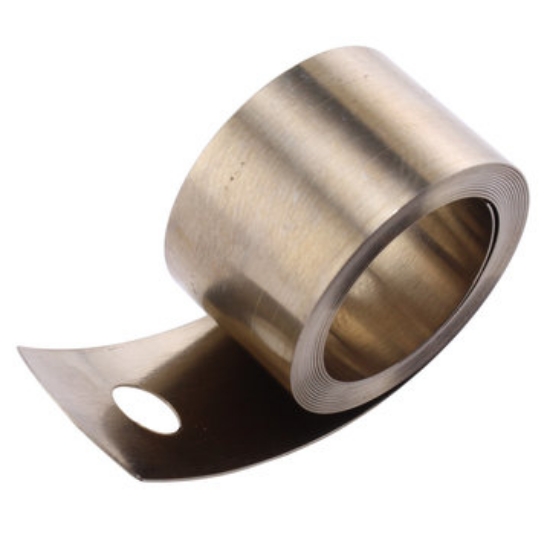

Photo de 0.5 in. Wide 30 in. Long Constant Force Spring

0.5 in. Wide 30 in. Long Constant Force Spring

No matter how far you extend them, these springs pull back with the same amount of force. Compact and tightly coiled, these springs extend to nearly 2 1/2 feet in length to pull objects in a linear direction. Please allow for 1 1/2 coils on the shaft at full extension to hold the spring in place.

Specifications

Extended Length: 30 in.
Inside Diameter: 0.588 in.
Load: 2.6 lbs
Material: Spring Steel
Mounting Hole: 0.188 in.
Outside Diameter: 0.6 in.
Thickness: 0.008 in.
Width: 0.5 in.

# Pièce: am-4666

$15,00

Rupture de stock - en rupture de stock et sera expédié une fois en stock.

Quantité:
