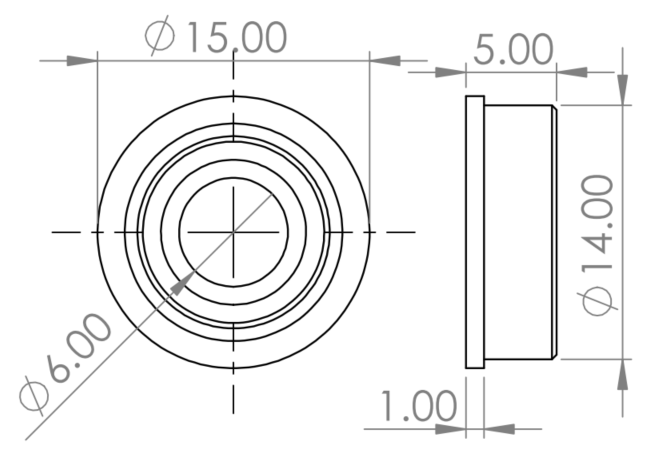

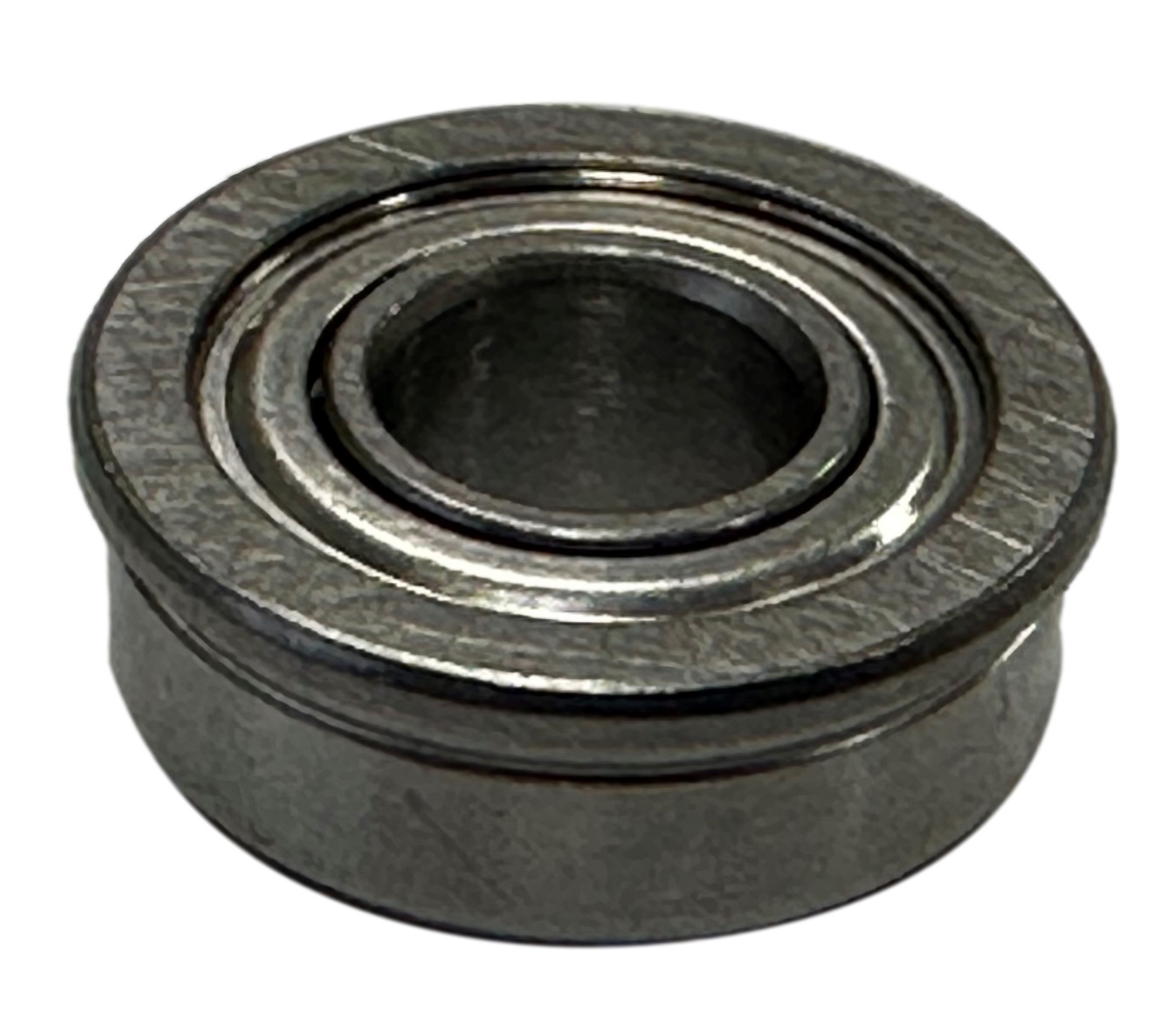

    Flange Bearing 6mm ID, 14mm OD, 15mm Flange (12 pack)

    The Flange Bearing 14mm OD fits any of the channel and flat brackets with the common hole pattern having a center hole of 14mm. The inside diameter will fit any of the D-Shaft axels.

    • Quantity: 1 or 12
    • Material: AISI440C stainless steel
    • Sealed Type: ZZ metal shields
    • Precision: ABEC-3
    • Clearance: C0
    • Lubrication:Kyodo SRL Grease
    • ID (inner diameter)/Bore:6 mm
    • OD (outer diameter): 14 mm
    • OD of Flanged Size: 15 mm
    • Width: 5 mm
    • Thickness of Flange: 1 mm
    • Step File
    # Pièce: 76302-12
    $24.99
    Disponibilité: 1062 en stock

    Écrivez votre propre commentaire
    • Le produit peut être examinée que après l'achat
    • Seul les utilisateurs enregistrés peuvent écrire une critique
    • Mal
    • Excellent

    Les clients ayant acheté cet article ont également acheté

    6mm D Shape Collar Clamp

    #76320
    $6.93
    (163 En stock)

    May be used with 6mm D-Shape Shaft to secure wheels in their position.


    Specifications:

    • Φ20.0mm*8.0mm thick
    • 1*M3 thread for M3 SHCS on the clamp side
    • Φ6.0mm D hole
    • AL6061-T6
    • Step File



    6mm Shaft Hub (4 pack)

    #76284-4
    $13.88
    (714 En stock)

    The 6mm Shaft hub is used to connect any Studica wheel and the Studica motor or any motor with a 6mm shaft.

    Specifications:

    • Material: 6061-T6 Aluminum
    • 6mm ID
    • Hole pattern for connecting to structure
    • Step File

    TETRIX MAX TorqueNADO Motor Gearbox 20:1

    #45424
    $17.25
    (19 En stock)

    These gearboxes are designed with the same 37 mm diameter as the original 60:1 gearbox, while using the same 6 mm D-shaft and alignment pins, so getting the additional speed you need is a breeze.

    TETRIX MAX TorqueNADO Motor Gearbox 40:1

    #45423
    $22.23

    The NEW 40:1Tetrix Max; TorqueNADO Motor Gearboxes give more rpm when compared to the 60:1 gearbox included with the TorqueNADO motor. These gearboxes are designed with the same 37 mm diameter as the original 60:1 gearbox, while using the same 6 mm D-shaft and alignment pins, so getting the additional speed you need is a breeze.

    Clamping Shaft Hub

    #76281
    $11.10
    (1653 En stock)

    Made of aluminum, the Studica Clamping Shaft Hub is used with flex and drive wheels

    Specifcation:

    • Material: 6061-T6 Aluminum
    • 6mm ID
    • Hole pattern for connecting to structure
    • Step File

    D-Shaft Collar 6mm ID, 12mm OD (6 pack)

    #76304-6
    $5.54
    (1133 En stock)

    The D-Shaft Collar is 6mm ID and 12mm OD. The inside diameter will fit any of the D-Shaft axels.

    Specifcations:
