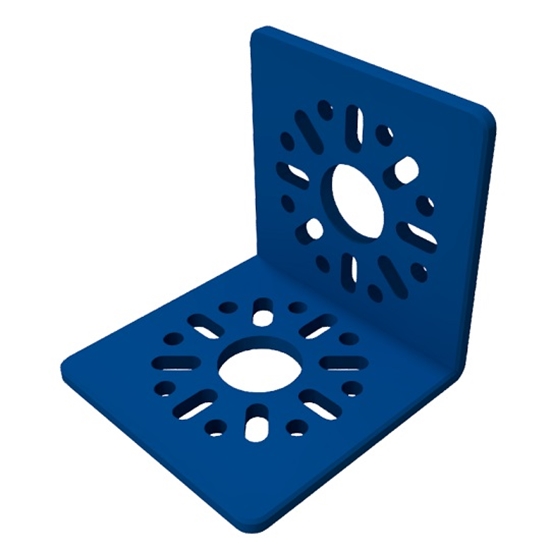

L Bracket (2 pack)

The WorldSkills Mobile Robotics Collection – Shanghai 2022 by Studica is the authorized collection for the WorldSkills Mobile Robotics Competition. Featuring the Studica VMX Robotics Controller for WorldSkills, the Titan Quad Motor Controller and Servo Power Block. This comprehensive Collection also includes electronics, accessories, motors, servos, mounts, U-Channel, mounting plates, flat brackets, irregular brackets, and flat beams. You'll also find gears, sprockets, pulleys, belts, axles, slides, rack & pinion, wheels, bushings, bearings, coupling, collars, spacers, screws, nuts, and standoffs. Includes Everything You Need (Over 1500 components).

Download brochure and BOM

Includes,

• 3 - 120 Degree Bracket (2 pack)  76080-2
• 2 - 90 Degree Bracket (2 pack)  76081-2
• 2 - 135 Degree Bracket (2 pack)  76082-2
• 2 - 96mm Adjustable Flat Bracket (2 pack)  76083-2
• 1 - T Bracket (2 pack)  76084-2
• 1 - X Bracket (2 pack)  76085-2
• 4 - Inside U Bracket (2 pack)  76086-2
• 4 - L Bracket (2 pack)  76087-2
• 4 - Inside L Bracket (2 pack)  76089-2

Includes,

• 2 - 336mm U-Channel  76012
• 1 - 288mm U-Channel (2 pack)  76013-2
• 2 - 144mm U-Channel (2 pack) 76016-2
• 2 - 96mm U-Channel (2 pack)  76017-2
• 2 - 48mm U-Channel (2 pack)  76018-2
• 2 - 336mm x 40mm Flat Bracket  76060
• 1 - 288mm x 40mm Flat Bracket (2 pack)  76061-2
• 1- 192mm x 40mm Flat Bracket  76063-2
• 1 - 144mm x 40mm Flat Bracket  76064-2
• 1 - 96mm x 40mm Flat Bracket  76065-2
• 1 - 192mm x 96mm Flat Bracket (2 pack)  76066-2
• 3 - L Bracket (2 pack)  76087-2
• 3 - Inside L Bracket (2 pack)  76089-2
• 1 - 6mm x 96mm D-Shaft (6 pack)  76161-6
• 2 - Collar 6mm ID D-Shaft, 12mm OD (6 pack)  76304-6
• 1 - Bushing Bronze 6mm ID x 8mm OD (12 Pack) 76300-12
• 1 - Bushing Bronze 6mm ID x 14mm OD (12 Pack) 76301-12
• 1 - Flange Bearing  6mm ID, 14mm OD, 15mm Flange (12 Pack) 76302
• 1 - Shaft Spacer Plastic 6mm ID x 10mm OD x 1mm L (24 pack)  76305-24
• 1 - Shaft Spacer Plastic 6mm ID x 10mm OD x 2mm L (24 pack)  76306-24
• 2 - 6mm Shaft Hub (4 pack)  76284-4
• 2 - 32 Tooth Gear (2 pack)  76220-2
• 1 - 64 Tooth Gear (2 pack)  76221-2
• 2 - 128 Tooth Gear  76222
• 1 - Rack & Pinion (2 pack)  76170-1
• 1 - Multi-Mode Smart Servo  75002
• 1 - M3 x 8mm Socket Head Cap Screw (pack of 100)  76200-100
• 1 - M3 x 10mm Socket Head Cap Screw (pack of 100)  76201-100
• 1 - M3 x 12mm Socket Head Cap Screw (pack of 100)  76202-100
• 1 - M3 x 10mm Button Head Cap Screw (pack of 50)  76203-50
• 1 - M3 Kep Nut (pack of 100)  76204-100
• 1 - 25mm Standoff (12 pack)  76182-12
• 1 - 48mm Standoff (12 pack)  76181-12

The WorldSkills Mobile Robotics Junior Collection by Studica is the authorized collection for the WorldSkills Asia Mobile Robotics Junior Competition. This comprehensive Collection includes over 1,400 items including controller, electronics, motors, structure, gears, sprockets, pulleys, belts, axles, slides, rack & pinion, wheels, bushings, bearings, coupling, collars, spacers, screws, nuts, and standoffs.

The 120 Degree Bracket is perfect for connecting two channel pieces at 120 degrees from each other. Each side is 48mm wide to fit perfectly on the channel. Use three brackets with 3 channel pieces to make 3 wheeled robots. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

Specifications:

• Material - Anodized 6061-T6 Aluminum
• Thickness - 3mm
• Step File

The 90 Degree Bracket is perfect for connecting two channels pieces at 90 angle from each other. Each side is 48mm wide to fit perfectly on the channel. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

Specifications:

• Material - Anodized 6061-T6 Aluminum
• Thickness - 3mm
• Step File

The 135 Degree Bracket is perfect for connecting two channels pieces at 45 degrees from each other. Each side is 48mm wide to fit perfectly on the channel. Used for intake systems, elevator systems, or structure where 45 degrees is required. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

Specifications:

• Material - Anodized 6061-T6 Aluminum
• Thickness - 3mm
• Step File

The Studica Adjustable Angle Flat Bracket is perfect for connecting two channels pieces together at various angles. It is 3mm thick and as with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

Specifications:

• Material - Anodized 6061-T6 Aluminum
• Thickness - 3mm
• Width - 48mm
• Length - 96mm
• Step File

The T Bracket is perfect for connecting two or three channels together. Each side is 48mm wide to fit on the U Channel, low profile channel or other brackets. The overall size is 144mm x 96mm

Specifications:

• Material - Anodized 6061-T6 Aluminum
• Thickness - 3mm
• Step File

The X Bracket is perfect for connecting four channels pieces together. Each of the 4 sections is 48mm wide and the overall dimmension is 144mm x 144mm.

Specifications:

• Material - Anodized 6061-T6 Aluminum
• Thickness - 3mm
• Step File

Made from 3mm thick heavy 6061-T6 Aluminum, the Inside U Bracket is 42mm x 45mm and is used inside the U Channel or Low profile channel.. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

Specifications:

• Material - Anodized 6061-T6 Aluminum
• Thickness - 3mm
• Step File

Made from 3mm thick heavy 6061-T6 Aluminum, the Inside L Bracket is 42mm x 45mm and is used inside the U Channel or Low profile channel.As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

Specifications:

• Material - Anodized 6061-T6 Aluminum
• Thickness - 3mm
• Step File
