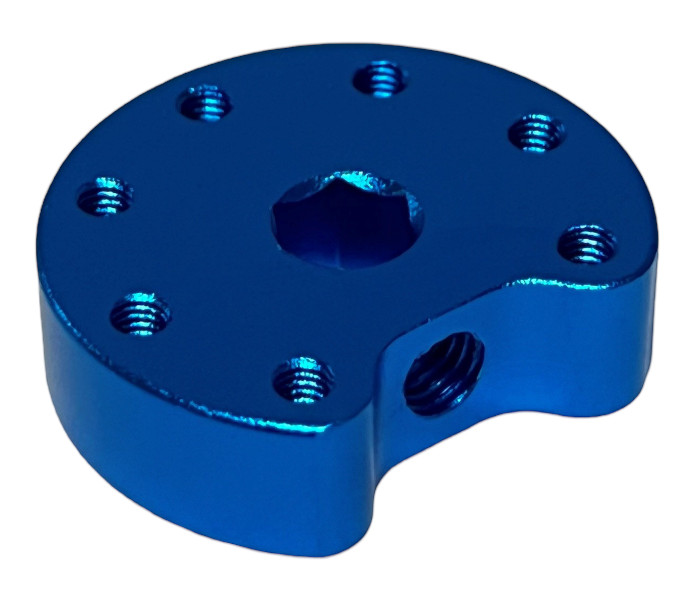

6mm Hex-shaft Light Weight Shaft Hub

GT2-6mm Smooth Idler Pulley, H Type, w/3mm Inner Bore Bearing

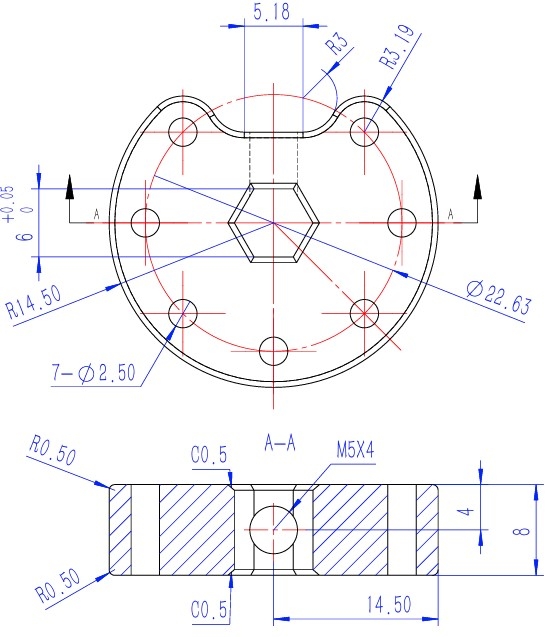

The Studica Light Weight Shaft Hub is used with the 6mm D shafts. It has a 5mm set screw for tight clamping and seven M3 tapped mounting holes.

Specifcation:

• Material: 6061-T6 Aluminum
• 6mm D Shaft ID
• M3 tapped hole pattern for connecting to structure
• Step File

The GT2-6mm Timing Belt Clamp w/Set Screw is used with all the GT2 belts.

Specifications:

• Step file

The Studica Robotics Hex-Shaft Coupling has an ID of 6mm and an OD of 12mm.  It can be used with the 6mm Hex-Shaft Axle and a 6mm shaft DC motor.

The Studica Robotics Clamping 6mm Hex-Shaft Hub is used with flex and drive wheels and is improved for the absolute strongest hold.

The Studica Robotics 6mm Hex-Shaft Servo Hub 25T is made of anodized 6061-T6 Aluminum and is used to connect a servo motor to a Hex-Shaft axle.

Made of aluminum, the Studica Clamping Shaft Hub is used with flex and drive wheels

Specifcation:

• Material: 6061-T6 Aluminum
• 6mm ID
• Hole pattern for connecting to structure
• Step File

The Studica Servo Hub Pro can be used with the Multi Mode Servo, Multi Mode Servo 200, or most servos with a 25 Tooth gear.

Specifcations:

• Spline: 25 Tooth, 3.8mm deep
• Height: 9mm
• OD: 30mm
• Material: 6061-T6 Aluminum
• Step File

The 6mm round ID Flanged Bearing fits any of the channel and flat brackets with the common hole pattern having a center hole of 14mm. The inside diameter will fit any of the D-Shaft axels.

• Quantity: 12
• Material: AISI440C stainless steel
• Sealed Type: ZZ metal shields
• Precision: ABEC-3
• Clearance: C0
• Lubrication:Kyodo SRL Grease
• ID (inner diameter)/Bore:6 mm
• OD (outer diameter): 14 mm
• OD of Flanged Size: 15 mm
• Width: 5 mm
• Thickness of Flange: 1 mm
• Step File

Our improved and  stronger 12-volt DC motor with 100 rpm and 708 oz-in. of torque. The motor features a built-in, high-resolution Hall effect encoder for precise motor control and comes with an encoder cable.

A 61:1 gearbox comes standard.

Output Counts per Revolution of Output Shaft (cpr) 1,464 pulses

This motor is FTC Competition Legal
