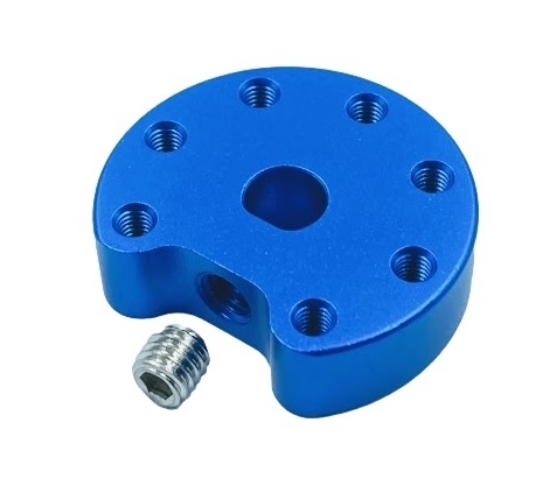

The Studica Light Weight Shaft Hub is used with the 6mm D shafts. It has a 5mm set screw for tight clamping and seven M3 tapped mounting holes.
Specifcation:
Used with Studica Omni and Mecanum wheels for a strong axel hold.
Specifications:
Our Entrapption Stars have two bore options, making them viable parts for both FRC and FTC! This product is frequently used as intake wheels for picking up game pieces. Made from silicone, they are flexible, yet firm, allowing for the ability to pick up objects of irregular shape.
The 1/2 in. Hex Bore option is designed to be an interference fit on any 0.5 in. Hex Shaft. This means the bore is actually 0.425 in. and it will be a tight press on, but keep the entrapption star from rotating.
Used to change motor to axle motion 90 degrees. This can be used in between the U-channel.
This 0.5 in. long 8-32 Button Head Cap Screw is used on the end of a Falcon 500 motor to retain pinions, adapters, or other spline hardware. It is included with the Falcon 500 Spline to 1/2 inch Hex Shaft Adapter.
The Motor Mount Plate is used with the Maverick 12V DC Gear Motor (Part# 75001) to attach it inside the anyone of the U Channels 76010 to 76018. This is an example of a chassis with 4 motors mounted inside the U-Channel using a Motor Mounting Plate.
A better way to Hall Effect is here. Now you can easily see when the magnet is close to this hall effect sensor as there is a blue LED, on to know it's powered, that will turn off when the magnet is near. This Hall Effect is designed specifically for FRC use and is featured in the DART, Sensor Kit (am-3077) for the DART, 12" Actuator Kit (am-3072a) and DART, 6" Actuator Kit (am-3076a). The sensor works with either pole of the magnet and reading the sensor is easy, 5v means component is safe to move 0v means the magnet is under it. This hall effect sensor board has four mounting holes. You can use two for mounting and two for a cable tie to hold the connecting cable in place. Features:
Dimensions:
Φ29.0mm*16.0mm thick 6*M3 thread tapping through (including 2*M3 thread for M3 SHCS) Φ6.0mm D hole AL6061-T6
Made of aluminum, the Studica Clamping Shaft Hub is used with flex and drive wheels
#25 Connecting Link (Master Link) Specifications:
Replacement Hub for Studica Omni or Mecanum wheels
The 6mm Servo Hub 25T is made of anodized 6061-T6 Aluminum and is used to connect a servo motor to a D-Shaft axel.
The 6mm Shaft hub is used to connect any Studica wheel and the Studica motor or any motor with a 6mm shaft.
This Hub allows user that have existing Studica OMNI wheels (Part# 76260) or Mecanum Wheels (Part# 76243) to use REV Robotics 5mm Hex shafts and Hex Motors.
The Studica Servo Hub Pro can be used with the Multi Mode Servo, Multi Mode Servo 200, or most servos with a 25 Tooth gear.
Specifcations:
