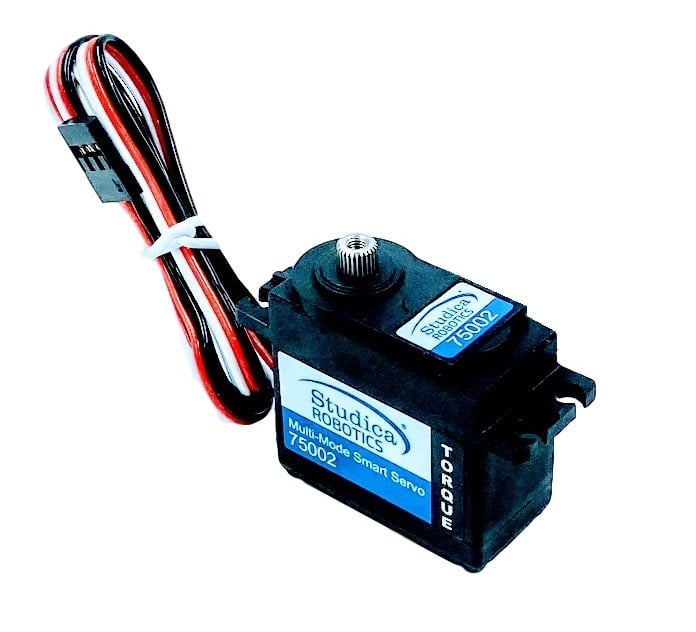

    Multi-Mode Smart Servo

    The Studica Multi-Mode Smart Servo features all-steel gears and large amounts of torque. This angular programmable Servo can fill a variety of roles on your robot or project. In standard mode, it operates on a +/- 150-degree range. Using the Studica Smart Robot Servo Programmer (sold separately) the Multi-mode Smart Servo can be configured to run in continuous, standard, and custom angular mode. In continuous rotation mode, the servo will have proportional speed control based on the PWM signal that you send with your servo controller.

    Specifications:

    Type:                             Metal Brush Motor
    Horn Gear Spline:       25T (5.9mm)
    Size:                               40mm x 20.1mm x 38.3mm
    Weight:                          65g
    Maximum Speed:        62RPM at 6V
    Stall Torque:                 20kg.cm at 6V
    Voltage:                         6-7 4V
    Cable:                             22AWG, 75cm

    # Pièce: 75002
    $33.32
    Disponibilité: 2188 en stock
    Écrivez votre propre commentaire
    • Le produit peut être examinée que après l'achat
    • Seul les utilisateurs enregistrés peuvent écrire une critique
    • Mal
    • Excellent
    Les clients ayant acheté cet article ont également acheté

    192mm Square Beam

    #76105
    $9.02
    (1196 En stock)

    The Studica Square Beam is 8mm by 8mm. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

    Specifications:

    • Material -  Anodized 6061-T6 Aluminum
    • Holes - 3.5mm diameter spaced 8mm apart
    • Length - 192mm
    • Step File

    6mm D Shape Collar Clamp

    #76320
    $6.93
    (163 En stock)

    May be used with 6mm D-Shape Shaft to secure wheels in their position.


    Specifications:

    • Φ20.0mm*8.0mm thick
    • 1*M3 thread for M3 SHCS on the clamp side
    • Φ6.0mm D hole
    • AL6061-T6
    • Step File



    Servo Horn 25T

    #76148
    $5.54
    (962 En stock)

    The Servo Horn 25T is made of anodized 6061-T6 Aluminum and is used with the Multi-Mode Smart Servo (75002) and the Studica building structure.







    Fast Multi-Mode Smart Servo

    #75007
    $34.50
    (1336 En stock)

    The Studica Fast Multi-Mode Smart Servo features all-steel gears and large amounts of torque. This angular programmable Servo can fill a variety of roles on your robot or project. In standard mode, it operates on a +/- 150-degree range. Using the Studica Smart Robot Servo Programmer (sold separately) the Fast Multi-mode Smart Servo can be configured to run in continuous, standard, and custom angular mode. In continuous rotation mode, the servo will have proportional speed control based on the PWM signal that you send with your servo controller.



    L Bracket (2 pack)

    #76087-2
    $8.32
    (580 En stock)

    Made from 3mm thick heavy 6061-T6 Aluminum, the L Bracket is 48mm x 48mm and is used outside the U Channel or Low profile channel. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

    Specifications:

    • Material - Anodized 6061-T6 Aluminum
    • Thickness - 3mm
    • Step File

    Servo Mount Offset Plate

    #76146
    $9.71
    (133 En stock)

    The Servo Mount Offset Plate is one option to mount the Multi-Mode Smart Servo (75002) to the Studica building structure.
