Specifications:

• Material: 6061-T6 Aluminum
• Number of teeth: 24
• Step File

Specifications:

• Material: 6061-T6 Aluminum
• Number of teeth: 32
• Step File

Specifications:

• Material: 6061-T6 Aluminum
• Number of teeth: 40
• Step File

Specifications:

• Material: 6061-T6 Aluminum
• Number of teeth: 48
• Step File

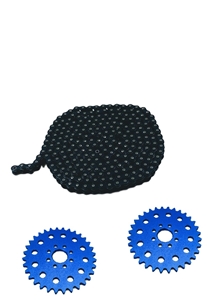

The #25 Chain with Master Links  set works with any of the Studica sprockets and other #25 sprockets. It includes 4 master links for creating various lengths of the chain.

Specifications:

• #25 Steel roller chain
• 4 master connecting links
• Length: 150cm

• Diameter: 110mm
• Width: 45mm
• Inner diameter of wheel frame: 75mm
• Hexagon connector: 12mm
• Unit weight: 128g
• 6mm axle adapter

Specifications:

• Material: 6061-T6 Aluminum
• Thickness: 6.35mm
• Hole Diameter: 14mm
• Number of teeth: 128
• Step File

Specifications:

• Material: 6061-T6 Aluminum
• Number of teeth: 13
• Step File

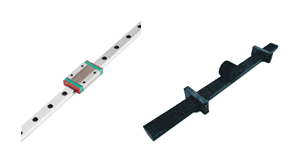

The 250mm Rail and Block Set will provide precision and low friction sliding for all your robot applications.

Specifications:

• 9mm wide x 250mm Stainless Steel Guide Rail
• Ball Bearing Block
• Step File

Specifications:

• Material: 6061-T6 Aluminum
• Number of teeth: 26
• Step File

Specifications:

• Material: 6061-T6 Aluminum
• Thickness: 6.35mm
• Hole Diameter: 14mm
• Step File

The 400mm Rail and Block Set will provide precision and low friction sliding for all your robot applications.

Specifications:

• 9mm wide x 400mm Stainless Steel Guide Rail
• Ball Bearing Block

Specifications:

• Material: 6061-T6 Aluminum
• Thickness: 6.35mm
• Hole Diameter: 14mm
• Number of teeth: 64
• Step File

The 6mm Servo Hub 25T is made of anodized 6061-T6 Aluminum and is used to connect a servo motor to a D-Shaft axel.

• Step File

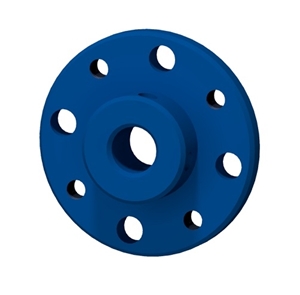

The 6mm Shaft hub is used to connect any Studica wheel and the Studica motor or any motor with a 6mm shaft.

Specifications:

• Material: 6061-T6 Aluminum
• 6mm ID
• Hole pattern for connecting to structure
• Step File

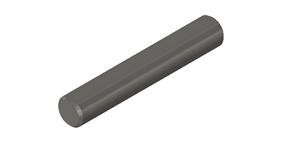

The 6mm diameter D -Shaft is made of stainless steel and is used throughout our building system as drive components. The D-Shaft profile is used with pulleys, gears and hubs when tightening the set screws and creating a non-slip connection.

Specifcation:

• Stainless Steel
• 35mm length
• 6mm OD
• 5.5mm to flat
• Step File

The 6mm diameter D -Shaft is made of stainless steel and is used throughout our building system as drive components. The D-Shaft profile is used with pulleys, gears and hubs when tightening the set screws and creating a non-slip connection.

Specifcation:

• Stainless Steel
• 432mm length
• 6mm OD
• 5.5mm to flat
• Step File

The 6mm diameter D -Shaft is made of stainless steel and is used throughout our building system as drive components. The D-Shaft profile is used with pulleys, gears and hubs when tightening the set screws and creating a non-slip connection.

Specifcation:

• Stainless Steel
• 70mm length
• 6mm OD
• 5.5mm to flat
• Step File

The 6mm diameter D -Shaft is made of stainless steel and is used throughout our building system as drive components. The D-Shaft profile is used with pulleys, gears and hubs when tightening the set screws and creating a non-slip connection.

Specifcation:

• Stainless Steel
• 96mm length
• 6mm OD
• 5.5mm to flat
• Step File

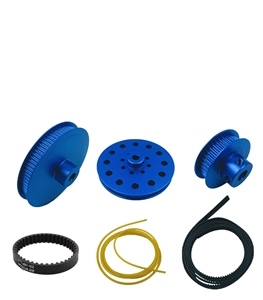

Used with Maverick DC Motor with 6mm shaft and all 6mm D-Shaft Axels. Matching belt 10mm Timing Belt, # 76233.

Specifications:

• 10 Tooth Timing Pulley
• 6mm Bore
• material: 6061 T6 Aluminum
• Step File

Use it to power the Studica Smart Robot Servo Programmer or any other device requiring 6V output and a TJC8 connector.

Specifications:

• 6V Output
• On/Off Power switch
• TJC8 connector
• Uses 4 x 1.5V AA Batteries (not included)

Includes,

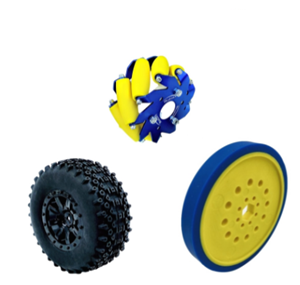

• 4 - 110mm All-Terrain Tire 2/6mm Adapter  76250

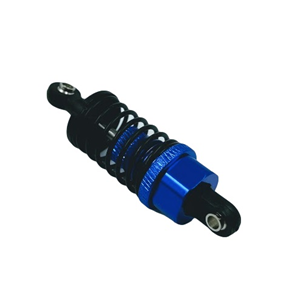

• 2 - Shock Absorber, 1/10 Aluminum, 100mm (2 pack)  76351-2
• 1 - 6mm x 96mm D-Shaft (6 pack)  76161-6
• 1 - Collar 6mm ID D-Shaft, 12mm OD (6 pack)  76304-6
• 1 - Flange Bearing 6mm ID, 14mm OD, 15mm Flange (12 pack)  76302-12
• 1 - Shaft Spacer Plastic 6mm ID x 10mm OD x 1mm L (24 pack)  76305-24

The Bronze Bushing 6mm ID x 14mm OD fits any of the channel and flat brackets having the common center hole pattern of 14mm. The inside diameter will fit any of the D-Shaft axels.

Material:  bronze
Inside Diameter: 6 mm
Outside Diameter: 14 mm

• Step File

• Step File

Includes,

• 1 - 24 Tooth - Sprocket (2 pack)  76226-2
• 1 - 32 Tooth - Sprocket (2 pack)  76227-2
• 2 - 40 Tooth - Sprocket  76228
• 2 - 48 Tooth - Sprocket  76229
• 1 - #25 Chain with Master Links, 5 feet(152cm) 76230
• 2 - 6mm Shaft Hub (4 pack)  76284-4
• 1 - Bushing Bronze 6mm ID x 8mm OD (12 Pack)  76300-12
• 1 - Bushing Bronze 6mm ID x 14mm OD (12 Pack)  76301-12
• 1 - Flange Bearing  6mm ID, 14mm OD, 15mm Flange (12 Pack)  76302
• 1 - Chain Breaker Tool  76231
• 1 - M3 x 12mm Socket Head Cap Screw (pack of 100)  76202-100
• 2 - Collar 6mm ID D-Shaft, 12mm OD (6 pack)  76304-6
• 1 - Shaft Spacer Plastic 6mm ID x 10mm OD x 1mm L (24 pack)  76305-24

The easy way to change the length of your #25 chain. (Chain not included)

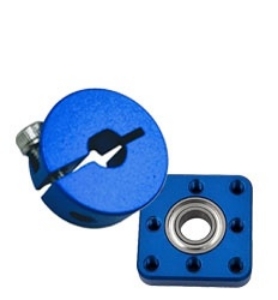

The D-Shaft Collar is 6mm ID and 12mm OD. The inside diameter will fit any of the D-Shaft axels.

Specifcations:

• Material: 6061-T6 Aluminum

• Step File

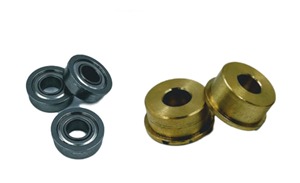

The 6mm round ID Flanged Bearing fits any of the channel and flat brackets with the common hole pattern having a center hole of 14mm. The inside diameter will fit any of the D-Shaft axels.

• Quantity: 12
• Material: AISI440C stainless steel
• Sealed Type: ZZ metal shields
• Precision: ABEC-3
• Clearance: C0
• Lubrication:Kyodo SRL Grease
• ID (inner diameter)/Bore:6 mm
• OD (outer diameter): 14 mm
• OD of Flanged Size: 15 mm
• Width: 5 mm
• Thickness of Flange: 1 mm
• Step File

Includes,

• 3 - 32 Tooth Gear (2 pack)  76220-2
• 3 - 64 Tooth Gear (2 pack)  76221-2
• 2 - 128 Tooth Gear  76222
• 4 - 6mm Shaft Hub (4 pack)  76284-4
• 1 - M3 x 12mm Socket Head Cap Screw (pack of 100)  76202-100

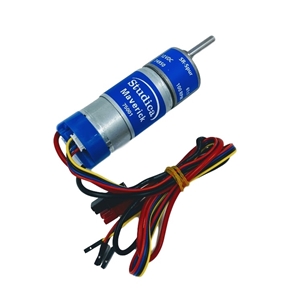

Our improved and  stronger 12-volt DC motor with 100 rpm and 708 oz-in. of torque. The motor features a built-in, high-resolution Hall effect encoder for precise motor control and comes with an encoder cable.

A 61:1 gearbox comes standard.

Output Counts per Revolution of Output Shaft (cpr) 1,464 pulses

This motor is FTC Competition Legal

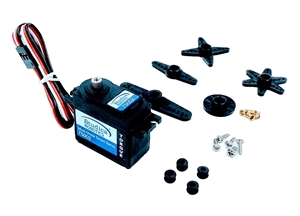

The Studica Multi-Mode Smart Servo features all-steel gears and large amounts of torque. This angular programmable Servo can fill a variety of roles on your robot or project. In standard mode, it operates on a +/- 150-degree range. Using the Studica Smart Robot Servo Programmer (sold separately) the Multi-mode Smart Servo can be configured to run in continuous, standard, and custom angular mode. In continuous rotation mode, the servo will have proportional speed control based on the PWM signal that you send with your servo controller.

Programming the Smart Servo using the Smart Servo Programmer

CAD File

• Step File

Includes,

• 2 - 13 Tooth Bevel Gear (2 pack)  76223-2
• 2 - 26 Tooth Bevel Gear (2 pack)  76224-2
• 4 - 30 Tooth Bevel Gear (2 pack)  76219-2
• 2 - Rack & Pinion  76170
• 2 - 6mm Shaft Hub (4 pack)  76284-4
• 1 - M3 x 12mm Socket Head Cap Screw (pack of 100)  76202-100

The Servo Horn 25T is made of anodized 6061-T6 Aluminum and is used with the Multi-Mode Smart Servo (75002) and the Studica building structure.

• Step File

The Servo Mount Flat Plate is one option to mount the Multi-Mode Smart Servo (75002) to the Studica building structure.

• Step File

The Servo Mount Offset Plate is one option to mount the Multi-Mode Smart Servo (75002) to the Studica building structure.

• Step File

Includes,

• 8 - Multi-Mode Smart Servo  75002
• 1 - Smart Robot Servo Programmer  75003
• 1 - 6V DC AA Battery Holder w/TJC8 Female, 22 AWG  75004
• 1 - Servo Power Block  75006
• 4 - Servo Standard Front Mount  76144
• 4 - Servo Mount Flat Plate  76145
• 4 - Servo Mount Offset Plate  76146
• 8 - Servo Horn 25T  76148
• 8 - 6mm D-Shaft Servo Hub 25T  76149

The Servo Power Block is a 6V, 60W power injector that provides proper power for RC Servos. It does not interfere with the signal, it will only replace the power to the servo with 6V.

Features,

• Built in DC-DC converter
• Over-current shutdown
• ESD protection

Specifications,

• Nominal Input Voltage: 12V
• Operational Voltage Range: 6.0V
• Number of Channels: 8
• Max Current for All Channels Combined: 10A
• Total Continuous Power: 60W
• Size: 70mm x 45mm x 16mm
• Step File

The Servo Standard Front Mounting Bracket is one option to mount the Multi-Mode Smart Servo (75002) to the Studica building structure.

• Step File

Includes,

• 2 x 76162-2 - 6mm x 432mm D-Shaft (2 pack)
• 2 x 76161-6 - 6mm x 96mm D-Shaft (6 pack)
• 2 x 76160-6 - 6mm x 70mm D-Shaft (6 pack)
• 1 x 76159-6 - 6mm x 35mm D-Shaft (6 pack)

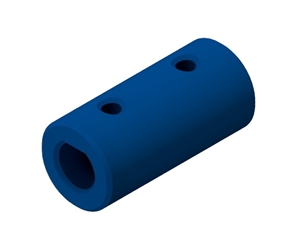

• 1 x 76303-2 - Coupling 6mm ID D-Shaft, 12mm OD (2 pack)
• 2 x 76308-6 - Shaft Spacer Plastic 6mm ID x 10mm OD x 20mm L (6 pack)
• 3 x 76304-6 - Collar 6mm ID D-Shaft, 12mm OD (6 pack)
• 2 x 76306-24 - Shaft Spacer Plastic 6mm ID x 10mm OD x 2mm L (24 pack)
• 2 x 76305-24 - Shaft Spacer Plastic 6mm ID x 10mm OD x 1mm L (24 pack)

Can be used with 6mm D-Shaft Axel and 6mm shaft DC motor.

Specifcations:

• Material: 6061-T6 Aluminum
• Inside Diameter: 6mm
• Outside Diameter: 12mm
• Step File

This 1mm Spacer is used to space gears, sprockets, wheels, and other parts along a 6mm shaft. Mix and match various spacer lengths.

SPECIFICATIONS

• Material: Nylon
• OD: 10mm
• ID: 6mm
• Length: 1mm
• Step File

This 1mm Spacer is used to space gears, sprockets, wheels, and other parts along a 6mm shaft. Mix and match various spacer lengths.

SPECIFICATIONS

• Material: Nylon
• OD: 10mm
• ID: 6mm
• Length: 20mm
• Step File

This 2mm Spacer is used to space gears, sprockets, wheels, and other parts along a 6mm shaft. Mix and match various spacer lengths.

SPECIFICATIONS

• Material: Nylon
• OD: 10mm
• ID: 6mm
• Length: 2mm
• Step File

This 5mm Spacer is used to space gears, sprockets, wheels, and other parts along a 6mm D-shaft. Mix and match various spacer lengths.

SPECIFICATIONS

• Material: Nylon
• OD: 10mm
• ID: 6mm
• Length: 5mm
• Step File

The Studica Smart Robot Servo Programmer is used for programming the Studica Multi-Model Smart Servo Motor and for testing other standard Servos. Use it to program the Studica Servo to switch between continuous mode, standard mode, or any custom angular mode.

Specifications:

• Requires 6 Volt battery pack with TJC8 connector or use the Studica 6V DC Battery Holder.
• Programming setting modes
  • Standard
  • Continuous
  • Angular

Using the Smart Servo Programmer

The XL series belt is compatible with the 6mm, 10 tooth XL pulley.

Specifications:

• Material: Neoprene with Fiberglass cords
• Length: 1 meter
• Width: 9mm

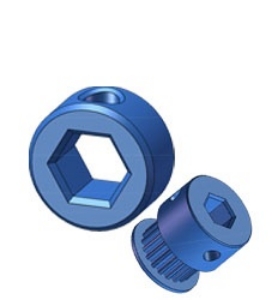

This Hub allows user that have existing Studica OMNI wheels (Part# 76260) or Mecanum Wheels (Part# 76243) to use REV Robotics 5mm Hex shafts and Hex Motors.

Sometimes you have the need for increased RPM. This 1:1 motor kit can be used with the Studica Maverick or any FTC legal motor such as the Neverest Classic (6600 RPM) or the REV HD Hex motor (6000RPM). The kit includes a faceplate which supports the Studica Robotics building platform. The shaft is press-fit onto the motor's shaft. It is recommended that the shaft be supported by a bearing (we recommend the 76302 for the Studica building system).

Whether you are constructing an intake, designing a shooter, or creating some other high-speed design, this 1:1 option allow you to get the full motor RPM output.

Specifications:

• Material - Anodized 6061-T6 Aluminum
• Step File
