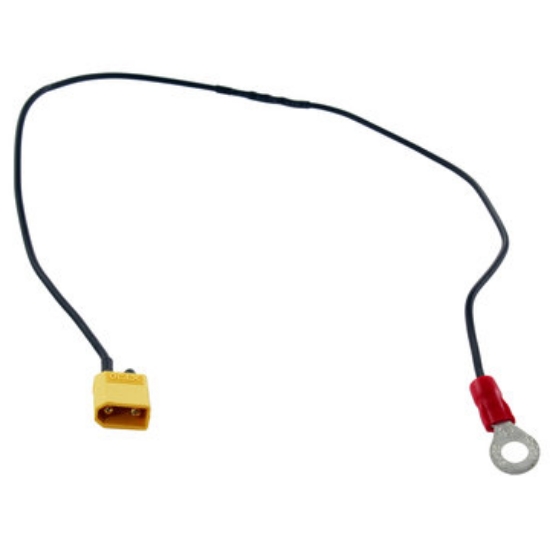

Resistive Grounding Strap

This Grounding Strap has 470Ω resistor to prevent high-current discharges and safely ground a robot's metal frame. The ring terminal should be attached to a metal surface using a #10 nut and bolt while the XT30 end is plugged into a free port on the controll system.

Specifications

• Length: 12 in.
• Resistance: 470 Ω 1/2 W 5%
• Wire Gauge: 22 AWG
