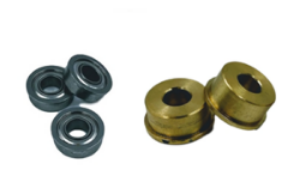

The 6mm Hex-Shaft Flanged Bearing fits any of the channel and flat brackets with the common hole pattern having a center hole of 14mm. The inside diameter will fit any of the 6mm Hex-Shaft axel.

• Quantity: 12
• Material: AISI440C stainless steel
• Sealed Type: ZZ metal shields
• Precision: ABEC-3
• Clearance: C0
• Lubrication:Kyodo SRL Grease
• ID (inner diameter)/Bore:6 mm Hex
• OD (outer diameter): 14 mm
• OD of Flanged Size: 15 mm
• Width: 5 mm
• Thickness of Flange: 1 mm

The Bronze Bushing 6mm ID x 14mm OD fits any of the channel and flat brackets having the common center hole pattern of 14mm. The inside diameter will fit any of the D-Shaft axels.

Material:  bronze
Inside Diameter: 6 mm
Outside Diameter: 14 mm

• Step File

• Step File

The 6mm round ID Flanged Bearing fits any of the channel and flat brackets with the common hole pattern having a center hole of 14mm. The inside diameter will fit any of the D-Shaft axels.

• Quantity: 12
• Material: AISI440C stainless steel
• Sealed Type: ZZ metal shields
• Precision: ABEC-3
• Clearance: C0
• Lubrication:Kyodo SRL Grease
• ID (inner diameter)/Bore:6 mm
• OD (outer diameter): 14 mm
• OD of Flanged Size: 15 mm
• Width: 5 mm
• Thickness of Flange: 1 mm
• Step File

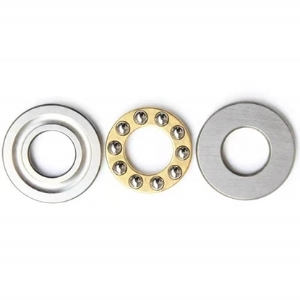

The Small Thrust Ball Bearing is used for vertical and axial loads to withstand heavy loads. These ball bearings have track grooves on the upper and lower track boards to reduce friction. Use these with structure for any hole where an axial load will be applied.

Specifications:

• Inner Diameter - 6mm
• Outer Diameter - 12mm
• Height - 4.5mm
• Material: Chrome Steel GCr15

The Studica Face Bearing Block can be mounted on any  Studica channel and bracket providing which will allow for a 6mm ID through hole for 6mm shafts (axles). It has a permanently installed Standard Sealed Bearing. Has 8 x M3 tapped through holes for easy mounting.
