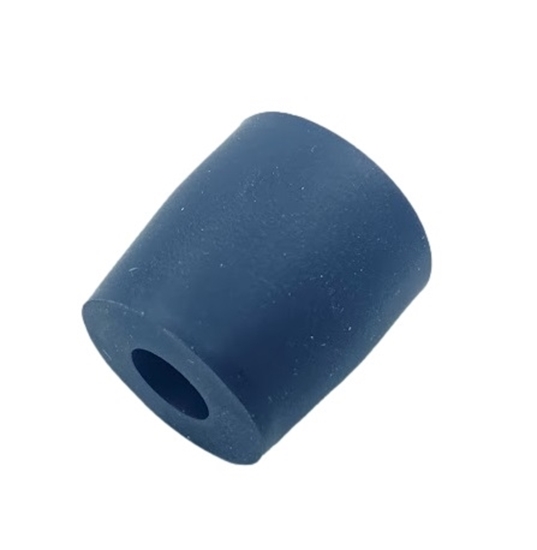

Rubber Foot (4 pack)

The NEW 40:1Tetrix Max; TorqueNADO Motor Gearboxes give more rpm when compared to the 60:1 gearbox included with the TorqueNADO motor. These gearboxes are designed with the same 37 mm diameter as the original 60:1 gearbox, while using the same 6 mm D-shaft and alignment pins, so getting the additional speed you need is a breeze.

Used with Studica Omni and Mecanum wheels for a strong axel hold.

Specifications:

• Material: 6061-T6 Aluminum
• Color: Blue
• Step File

The Studica Servo Arm Extended can be used with the Multi Mode Servo, Multi Mode Servo 200, or most servos with a 25 Tooth gear.

Specifcations:

• Spline: 25 Tooth, 3.8mm deep
• Length: 56mm
• Width: 14mm
• Height: 7.8mm
• Material: 6061-T6 Aluminum
• Step File

The Studica Servo Arm can be used with the Multi Mode Servo, Multi Mode Servo 200, or most servos with a 25 Tooth gear.

Specifcations:

• Spline: 25 Tooth, 3.8mm deep
• Length: 33mm
• Width: 14mm
• Height: 7.8mm
• Material: 6061-T6 Aluminum
• Step File

PRE-ORDER Only shipping January 2023

Φ20.0mm*8.0mm thick
2*M3 thread for M3 SHCS
on the clamp side
Φ6.0mm D hole
AL6061-T6

Φ29.0mm*16.0mm thick
6*M3 thread tapping through
(including 2*M3 thread for M3 SHCS)
Φ6.0mm D hole
AL6061-T6

Churro is a versatile extruded aluminum hex profile. The outside of this part is a 1/2 in. hex with small concave dimples which act as weight savings. There is an inside hole is sized at 0.2 in. in order to fit 1/4-20 thread forming screws. No tapping or threading is needed, as long as a thread forming screw is used. The outside hex size fits a 1/2 in. wrench or socket.

The 3-foot churro, our most popular length and the best value on shipping, is available anodized in red, blue, purple, gold and black to dress up your robot. Anodized finish is hardy and doesn't flake off or add thickness like paint, but it is possible for a scratch to expose the bare metal beneath. Take basic precautions in your shop like watching for sharp tools or overtightening this churro in a vise.

Specifications:

• Material: 6005A Aluminum
• Inside diameter: 0.231 in.
• Outside width: 0.495 in. Hex, across flats
• Length: Selectable Above
• Weight: 0.16 lbs/ft

These gearboxes are designed with the same 37 mm diameter as the original 60:1 gearbox, while using the same 6 mm D-shaft and alignment pins, so getting the additional speed you need is a breeze.

The Motor Mount Plate is used with the Maverick 12V DC Gear Motor  (Part# 75001) to attach it inside the anyone of the U Channels 76010 to 76018. This is an example of a chassis with 4 motors mounted inside the U-Channel using a Motor Mounting Plate.

• Step File

The Studica Fast Multi-Mode Smart Servo features all-steel gears and large amounts of torque. This angular programmable Servo can fill a variety of roles on your robot or project. In standard mode, it operates on a +/- 150-degree range. Using the Studica Smart Robot Servo Programmer (sold separately) the Fast Multi-mode Smart Servo can be configured to run in continuous, standard, and custom angular mode. In continuous rotation mode, the servo will have proportional speed control based on the PWM signal that you send with your servo controller.

• Step File
