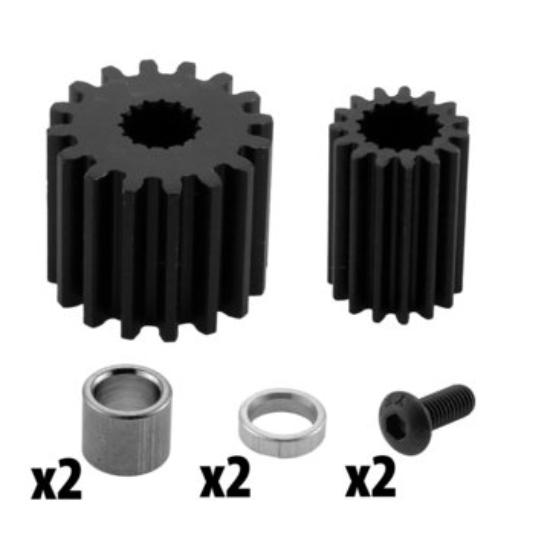

SDS MK4 L4 Kraken X60 Pinion Gear Kit

This is a Heavy Duty Hex Bearing which outperforms our previous 1/2" Hex Bearings as it has a Heavy Duty Inner Race. This FR8ZZ-HexHD bearing, 1/2" hex bore, flanged, heavy duty inner race, shielded ball bearing, has an inner race that is thicker and stronger than our recent offering of a similar bearing (am-0279). This bearing has more material between the corners of the hex bore and the edge of the race making it stronger and much less likely to crack under high load.

This bearing is guaranteed to have a stronger, thicker race. 100% of these bearings have been quality checked for a smooth fit over 1/2" hex stock here at AndyMark. Many of our long-time customers will recognize this bearing, as it is the same version we sold back in 2008-2011, and we did not have any failures. Now, it is renamed and quality checked for your high load needs - including drive chassis with cantilevered wheels.

Specifications:

• Inside diameter: 0.500-0.502 inch hex bore
• Outside diameter: 1.125 inch
• Flange thickness: 0.062 inch
• Overall thickness: 0.312 inch
• Weight: 0.05 pound

This is a heavy-duty compression lug from BURNDY for 06 AWG wire. This compression log can be easily crimped with the Cable Lug Crimping Tool.

Specifications

• Gauge: 06 AWG
• Hole Size For Stud: 0.25 in.
• Material: Copper
• Overall Length: 2.03 in.
• Tongue Width: 0.48 in.
• Weight: 0.01 lbs
• Wire Strip Length: 1.18 in.

#25 Connecting Link (Master Link)

Specifications:

• Material: Steel
• Style: Roller Chain - Spring Clip
• Type: Connecting Link
• Size: #25
• Pitch: 0.250 inch
• Weight: 0.01 lbs

#35 Connecting Link (Master Link)

Specifications:

• Material: Steel
• Style: Roller Chain - Spring Clip
• Type: Connecting Link
• Size: #35
• Pitch: 0.375 inch
• Weight: 0.01 lbs

This 20 Amp fuse is used in FIRST Tech Challenge batteries and the FIRST Robotics Competition Power Distribution Panel (am-2856).

Specifications:

• Color: Yellow
• Amps: 20
• Max Voltage: 32
• Style: MINI®
• Specification: SAE J2077
• Type: Blade Fuse

Snap action breakers are used commonly in mobile robot applications such as FIRST Robotics Competition power distribution boards. We offer several amperage versions.

Specifications

• Manufacturer: Snap Action
• Style: MINI, Auto-resetting
• Voltage: Up to 50V DC

Snap action breakers are used commonly in mobile robot applications such as FIRST Robotics Competition power distribution boards. We offer several amperage versions.

Specifications

• Manufacturer: Snap Action
• Style: MINI, Auto-resetting
• Voltage: Up to 50V DC

The MINI® Fuse is the standard for vehicle circuit protection. Its miniature design meets the need for more circuits to be protected while utilizing less space, and its ability to cope with high temperatures in adverse environments makes the MINI® Fuse of recommended choice for protection.

This mini fuse can be used in our Power Pole Distribution Board (am-3699), as well as a replacement in the Power Distribution Panel (am-2856)

This is a steel sheet metal bracket designed to mount the phd, Inc. OCG cylinders (am-3303, am-3304, am-3305).

Specifications:

• Manufacturer Part Number: 86993-01
• Bracket Material: steel
• Bracket Thickness: 1/8 inch
• Bracket Width: 1.75 inches
• Bracket Height: 1.375 inches
• Bracket Depth: 0.875 inches
• Weight: 0.1 pound (bracket and fasteners)

Included Hardware:

• One - Sheet metal bracket
• Four - #8-32 x 3/8" BHCS


This is a 25 foot section of a twisted pair of 22 AWG wire.

Specifications

• Gauge: 22 AWG
• Length: 25 feet
