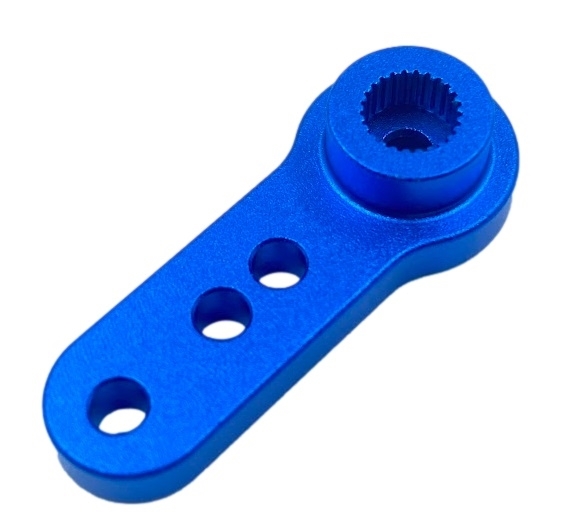

Servo Arm

The Studica Servo Hub Pro can be used with the Multi Mode Servo, Multi Mode Servo 200, or most servos with a 25 Tooth gear.

Specifcations:

• Spline: 25 Tooth, 3.8mm deep
• Height: 9mm
• OD: 30mm
• Material: 6061-T6 Aluminum
• Step File

The Motor Mount Plate is used with the Maverick 12V DC Gear Motor  (Part# 75001) to attach it inside the anyone of the U Channels 76010 to 76018. This is an example of a chassis with 4 motors mounted inside the U-Channel using a Motor Mounting Plate.

• Step File

Used with Studica Omni and Mecanum wheels for a strong axel hold.

Specifications:

• Material: 6061-T6 Aluminum
• Color: Blue
• Step File

·      450mm Length

·      3 position

·      TJC8 MH-FC on one end

·      TJC8 FH-MC on the other end

·      Twisted cable

·      Colors: White, Red, Black (red in middle)

·      24AWG Guage

Compliant Stars are the perfect thing for intake mechanisms. The soft material gives way to allow rigid objects to be manipulated easily. A line of multiple stars on a driven hex shaft creates a very effective roller that ignores variations in the objects being driven. The multiple-spoke design allows the star to act as a brush, creating more surface area to interact with and grab objects. This makes for high-performance intakes and internal conveyors. A shaft collar may be used to make absolutely sure the wheels stay clear of other mechanisms or maintain consistent spacing. Molded into the star are several guidelines. Cut the star at the lines (or elsewhere) to create more compact mechanisms.

Different durometer ratings give each Compliant Star unique characteristics. Green stars (35A durometer) are the softest and most compliant around objects, while orange (40A), maroon (45A), and blue (50A) wheels are increasingly firm. Black (60A) is quite firm, while the Gray (80A) is nearly rigid. The increased firmness also allows the latter wheels to carry a higher RPM rating

Compliant Stars are the perfect thing for intake mechanisms. The soft material gives way to allow rigid objects to be manipulated easily. A line of multiple stars on a driven hex shaft creates a very effective roller that ignores variations in the objects being driven. The multiple-spoke design allows the star to act as a brush, creating more surface area to interact with and grab objects. This makes for high-performance intakes and internal conveyors. A shaft collar may be used to make absolutely sure the wheels stay clear of other mechanisms or maintain consistent spacing. Molded into the star are several guidelines. Cut the star at the lines (or elsewhere) to create more compact mechanisms.

Different durometer ratings give each Compliant Star unique characteristics. Green stars (35A durometer) are the softest and most compliant around objects, while orange (40A), maroon (45A), and blue (50A) wheels are increasingly firm. Black (60A) is quite firm, while the Gray (80A) is nearly rigid. The increased firmness also allows the latter wheels to carry a higher RPM rating

The NEW 40:1Tetrix Max; TorqueNADO Motor Gearboxes give more rpm when compared to the 60:1 gearbox included with the TorqueNADO motor. These gearboxes are designed with the same 37 mm diameter as the original 60:1 gearbox, while using the same 6 mm D-shaft and alignment pins, so getting the additional speed you need is a breeze.

Φ29.0mm*16.0mm thick
6*M3 thread tapping through
(including 2*M3 thread for M3 SHCS)
Φ6.0mm D hole
AL6061-T6

The Studica Servo Arm Extended can be used with the Multi Mode Servo, Multi Mode Servo 200, or most servos with a 25 Tooth gear.

Specifcations:

• Spline: 25 Tooth, 3.8mm deep
• Length: 56mm
• Width: 14mm
• Height: 7.8mm
• Material: 6061-T6 Aluminum
• Step File

The Servo Horn 25T is made of anodized 6061-T6 Aluminum and is used with the Multi-Mode Smart Servo (75002) and the Studica building structure.

• Step File
