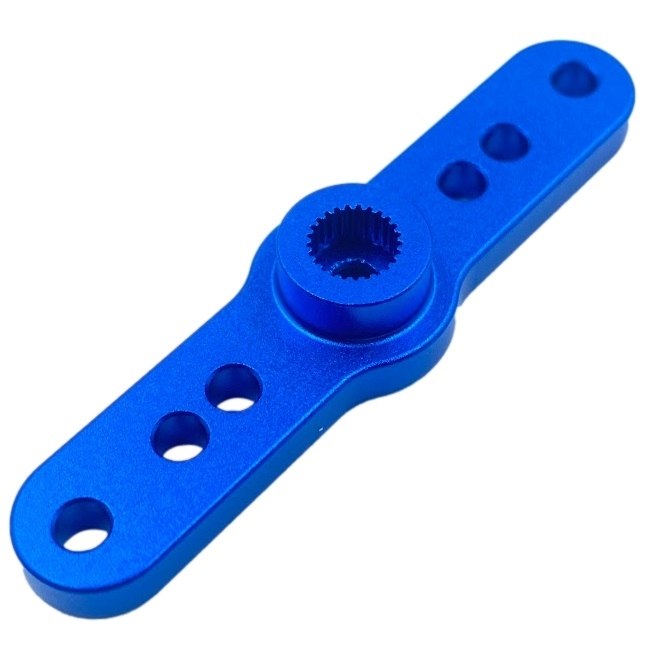

The Studica Servo Arm Extended can be used with the Multi Mode Servo, Multi Mode Servo 200, or most servos with a 25 Tooth gear.
Specifcations:
The Studica Servo Hub Pro can be used with the Multi Mode Servo, Multi Mode Servo 200, or most servos with a 25 Tooth gear.
The Studica Fast Multi-Mode Smart Servo features all-steel gears and large amounts of torque. This angular programmable Servo can fill a variety of roles on your robot or project. In standard mode, it operates on a +/- 150-degree range. Using the Studica Smart Robot Servo Programmer (sold separately) the Fast Multi-mode Smart Servo can be configured to run in continuous, standard, and custom angular mode. In continuous rotation mode, the servo will have proportional speed control based on the PWM signal that you send with your servo controller.
PRE-ORDER Only shipping January 2023
Φ20.0mm*8.0mm thick2*M3 thread for M3 SHCSon the clamp sideΦ6.0mm D holeAL6061-T6
The Studica Servo Arm can be used with the Multi Mode Servo, Multi Mode Servo 200, or most servos with a 25 Tooth gear.
· 450mm Length
· 3 position
· TJC8 MH-FC on one end
· TJC8 FH-MC on the other end
· Twisted cable
· Colors: White, Red, Black (red in middle)
· 24AWG Guage
Made of aluminum, the Studica Clamping Shaft Hub is used with flex and drive wheels
Specifcation:
Used with Studica Omni and Mecanum wheels for a strong axel hold.
Specifications:
These gearboxes are designed with the same 37 mm diameter as the original 60:1 gearbox, while using the same 6 mm D-shaft and alignment pins, so getting the additional speed you need is a breeze.
The NEW 40:1Tetrix Max; TorqueNADO Motor Gearboxes give more rpm when compared to the 60:1 gearbox included with the TorqueNADO motor. These gearboxes are designed with the same 37 mm diameter as the original 60:1 gearbox, while using the same 6 mm D-shaft and alignment pins, so getting the additional speed you need is a breeze.
Φ29.0mm*16.0mm thick6*M3 thread tapping through(including 2*M3 thread for M3 SHCS)Φ6.0mm D holeAL6061-T6
The Studica Multi-Mode Smart Servo features all-steel gears and large amounts of torque. This angular programmable Servo can fill a variety of roles on your robot or project. In standard mode, it operates on a +/- 150-degree range. Using the Studica Smart Robot Servo Programmer (sold separately) the Multi-mode Smart Servo can be configured to run in continuous, standard, and custom angular mode. In continuous rotation mode, the servo will have proportional speed control based on the PWM signal that you send with your servo controller.
Programming the Smart Servo using the Smart Servo Programmer
CAD File
The Servo Standard Front Mounting Bracket is one option to mount the Multi-Mode Smart Servo (75002) to the Studica building structure.
The Servo Mount Flat Plate is one option to mount the Multi-Mode Smart Servo (75002) to the Studica building structure.
The Servo Mount Offset Plate is one option to mount the Multi-Mode Smart Servo (75002) to the Studica building structure.
The Servo Horn 25T is made of anodized 6061-T6 Aluminum and is used with the Multi-Mode Smart Servo (75002) and the Studica building structure.
The 6mm Servo Hub 25T is made of anodized 6061-T6 Aluminum and is used to connect a servo motor to a D-Shaft axel.
