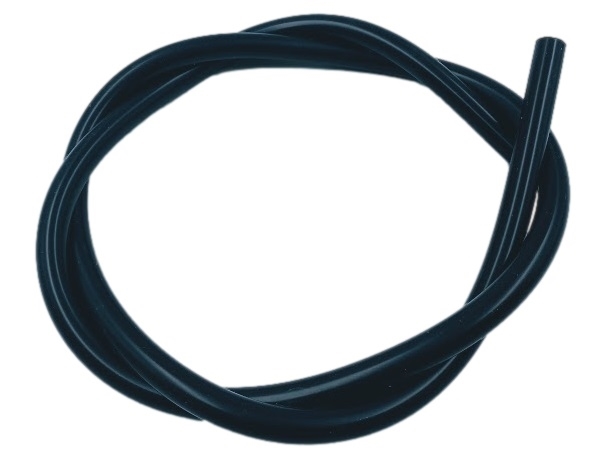

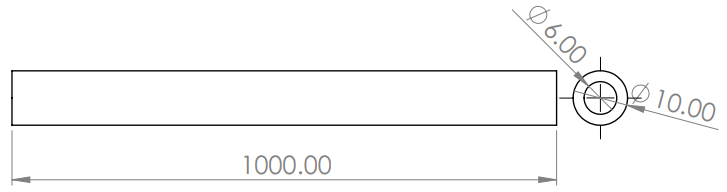

Silicone Rubber Tubing

The Intake Kit can be used to create intake systems and is ideal for the FIRST Technical Challenge (FTC) and World Robotics Olympiad (WRO). Used with the Silicone Rubber Tubing #76410

Specifications:

• Main piece
  • hex width: 20.78mm*10.0mm thick
  • 6*M6 tapped holes
  • 1*M4 tappped hole for M4 set screw
  • 6.0mm Diameter D Hole
  • Material AL6061-T6
  • Φ7.5mm*14.0mm
• Pins
  • 6PCS in a pack
  • M6*4.0mm thread
  • Material SS303
• Step file

·      450mm Length

·      3 position

·      TJC8 MH-FC on one end

·      TJC8 FH-MC on the other end

·      Twisted cable

·      Colors: White, Red, Black (red in middle)

·      24AWG Guage

The Studica Multi-Mode Smart Servo features all-steel gears and large amounts of torque. This angular programmable Servo can fill a variety of roles on your robot or project. In standard mode, it operates on a +/- 150-degree range. Using the Studica Smart Robot Servo Programmer (sold separately) the Multi-mode Smart Servo can be configured to run in continuous, standard, and custom angular mode. In continuous rotation mode, the servo will have proportional speed control based on the PWM signal that you send with your servo controller.

Programming the Smart Servo using the Smart Servo Programmer

CAD File

• Step File

This cable can be used in many ways, a power cable for the Gorgon Flex, or from a Speed Controller to a CIM motor. One end connectors are crimped with PowerPole Connectors, two crimps and a black and red housing are shipped with this cable. Tip-to-tip length is approximately 24 inches.

Specifications:

• Weight: pounds
• Length: Approximately 24 inches
• Connector Type: Anderson PowerPole PP45
• Gauge: 12 bonded

Use the Anderson Power Pole to 2-pin JST VH Adapter Cable to connect your existing motors to the REV Robotics Expansion Hub.

Connections:

• JST VH
• Anderson Power Pole

These gearboxes are designed with the same 37 mm diameter as the original 60:1 gearbox, while using the same 6 mm D-shaft and alignment pins, so getting the additional speed you need is a breeze.

The 6mm diameter D -Shaft is made of stainless steel and is used throughout our building system as drive components. The D-Shaft profile is used with pulleys, gears and hubs when tightening the set screws and creating a non-slip connection.

Specifcation:

• Stainless Steel
• 432mm length
• 6mm OD
• 5.5mm to flat
• Step File

May be used with 6mm D-Shape Shaft to secure wheels in their position.


Specifications:

• Φ20.0mm*8.0mm thick
• 1*M3 thread for M3 SHCS on the clamp side
• Φ6.0mm D hole
• AL6061-T6
• Step File

The 20 Tooth GT2-6mm Timing Belt Pulley can be used with any of the GT2 belts.

Specifications:

• 20 Tooth Timing Pulley
• 6mm Bore
• Material: 6061 T6 Aluminum
• Step File

The 40 Tooth GT2-6mm Timing Belt Pulley can be used with any of the GT2 belts.

Specifications:

• 40 Tooth Timing Pulley
• 6mm Bore
• Material: 6061 T6 Aluminum
• Step File
