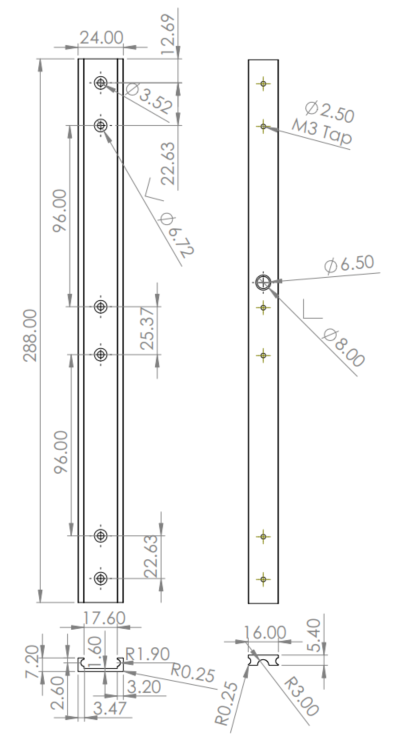

Linear Slide Rail, 288mm Length, 180mm Stroke

The 400mm Rail and Block Set will provide precision and low friction sliding for all your robot applications.

Specifications:

• 9mm wide x 400mm Stainless Steel Guide Rail
• Ball Bearing Block

The 100mm (4") Flex Wheel can be used for intake systems and conveyors.

Specifications:

• Diameter:   100mm (4")
• Axial width:  25mm
• Hub:  1/2" Inner Hex
• Inner Material: Molded Plastic in Yellow
• Outer Material: TPU Polyurethane in Green
• Outer Material Durometer: 35A
• Weight: 0.038kg
• Step File

Used with Studica Omni and Mecanum wheels for a strong axel hold.

Specifications:

• Material: 6061-T6 Aluminum
• Color: Blue
• Step File

The 50mm (2") Drive Wheel can be used as a simple wheel providing good traction on carpet and tile flooring. They can also be used for intake systems.

Use with 1/2" hex shaft of use 6mm Shaft Hub to use connect 6mm D-Shaft Axles.

Specifications:

• Diameter:   50mm (2")
• Axial width:  25mm
• Hub:  1/2" Inner Hex
• Inner Material: Molded Plastic in Yellow
• Outer Material: TPU Polyurethane in Green
• Outer Material Durometer: 35A
• Weight: 0.038kg
• Step File

These gearboxes are designed with the same 37 mm diameter as the original 60:1 gearbox, while using the same 6 mm D-shaft and alignment pins, so getting the additional speed you need is a breeze.

The Studica Multi-Mode Smart Servo features all-steel gears and large amounts of torque. This angular programmable Servo can fill a variety of roles on your robot or project. In standard mode, it operates on a +/- 150-degree range. Using the Studica Smart Robot Servo Programmer (sold separately) the Multi-mode Smart Servo can be configured to run in continuous, standard, and custom angular mode. In continuous rotation mode, the servo will have proportional speed control based on the PWM signal that you send with your servo controller.

Programming the Smart Servo using the Smart Servo Programmer

CAD File

• Step File

The Studica Servo Arm can be used with the Multi Mode Servo, Multi Mode Servo 200, or most servos with a 25 Tooth gear.

Specifcations:

• Spline: 25 Tooth, 3.8mm deep
• Length: 33mm
• Width: 14mm
• Height: 7.8mm
• Material: 6061-T6 Aluminum
• Step File

The Studica Face Bearing Block can be mounted on any  Studica channel and bracket providing which will allow for a 6mm ID through hole for 6mm shafts (axles). It has a permanently installed Standard Sealed Bearing. Has 8 x M3 tapped through holes for easy mounting.

Made of aluminum, the Studica Clamping Shaft Hub is used with flex and drive wheels

Specifcation:

• Material: 6061-T6 Aluminum
• 6mm ID
• Hole pattern for connecting to structure
• Step File

The Intake Kit can be used to create intake systems and is ideal for the FIRST Technical Challenge (FTC) and World Robotics Olympiad (WRO). Used with the Silicone Rubber Tubing #76410

Specifications:

• Main piece
  • hex width: 20.78mm*10.0mm thick
  • 6*M6 tapped holes
  • 1*M4 tappped hole for M4 set screw
  • 6.0mm Diameter D Hole
  • Material AL6061-T6
  • Φ7.5mm*14.0mm
• Pins
  • 6PCS in a pack
  • M6*4.0mm thread
  • Material SS303
• Step file
