Smart Robot Servo Programmer

The WorldSkills Mobile Robotics Collection – Shanghai 2022 by Studica is the authorized collection for the WorldSkills Mobile Robotics Competition. Featuring the Studica VMX Robotics Controller for WorldSkills, the Titan Quad Motor Controller and Servo Power Block. This comprehensive Collection also includes electronics, accessories, motors, servos, mounts, U-Channel, mounting plates, flat brackets, irregular brackets, and flat beams. You'll also find gears, sprockets, pulleys, belts, axles, slides, rack & pinion, wheels, bushings, bearings, coupling, collars, spacers, screws, nuts, and standoffs. Includes Everything You Need (Over 1500 components).

Download brochure and BOM

The WorldSkills Mobile Robotics Junior Collection by Studica is the authorized collection for the WorldSkills Asia Mobile Robotics Junior Competition. This comprehensive Collection includes over 1,400 items including controller, electronics, motors, structure, gears, sprockets, pulleys, belts, axles, slides, rack & pinion, wheels, bushings, bearings, coupling, collars, spacers, screws, nuts, and standoffs.

Includes,

• 8 - Multi-Mode Smart Servo  75002

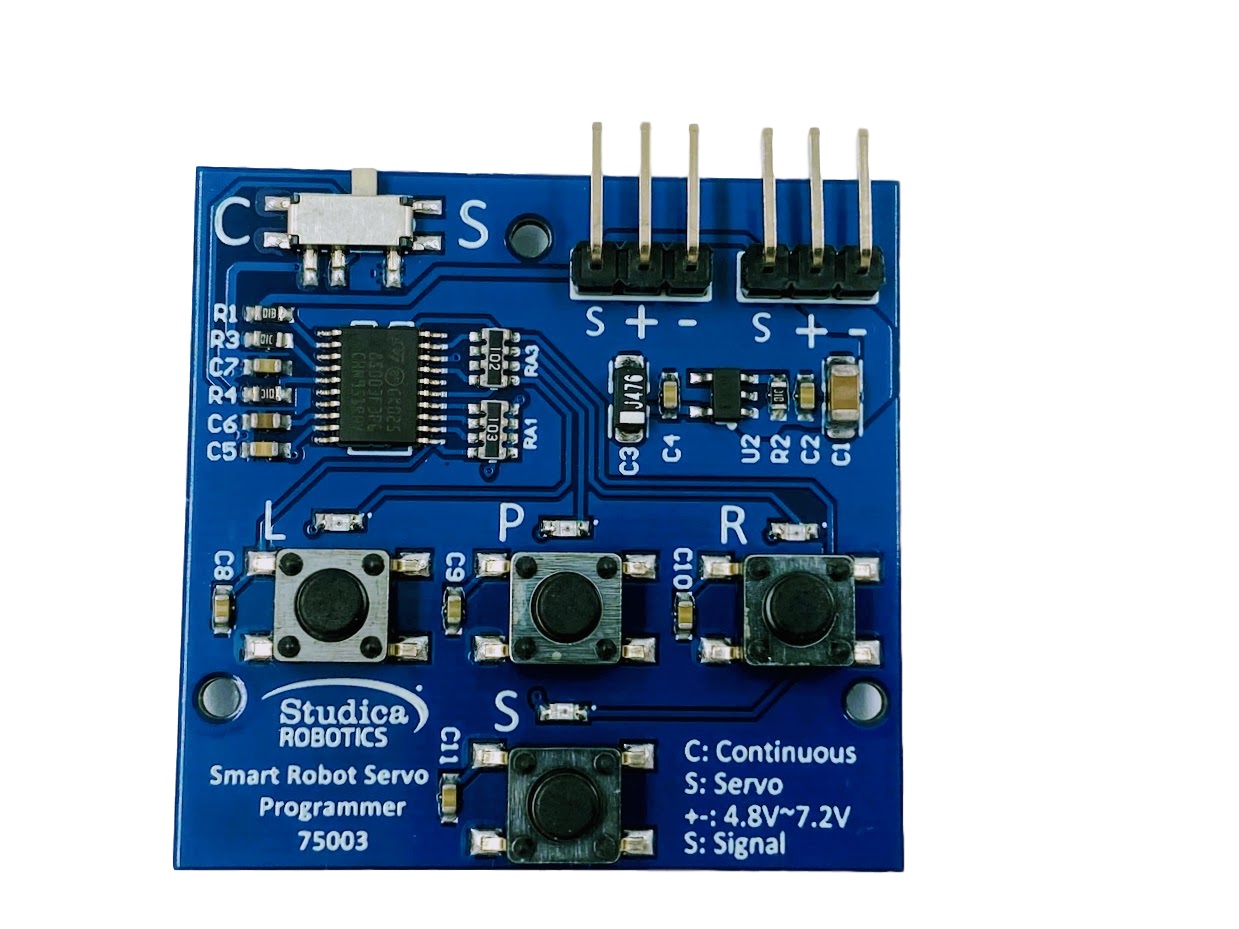

• 1 - Smart Robot Servo Programmer  75003
• 1 - 6V DC AA Battery Holder w/TJC8 Female, 22 AWG  75004
• 1 - Servo Power Block  75006
• 4 - Servo Standard Front Mount  76144
• 4 - Servo Mount Flat Plate  76145
• 4 - Servo Mount Offset Plate  76146
• 8 - Servo Horn 25T  76148
• 8 - 6mm D-Shaft Servo Hub 25T  76149

The Studica Multi-Mode Smart Servo features all-steel gears and large amounts of torque. This angular programmable Servo can fill a variety of roles on your robot or project. In standard mode, it operates on a +/- 150-degree range. Using the Studica Smart Robot Servo Programmer (sold separately) the Multi-mode Smart Servo can be configured to run in continuous, standard, and custom angular mode. In continuous rotation mode, the servo will have proportional speed control based on the PWM signal that you send with your servo controller.

Specifications:

Type:                             Metal Brush Motor
Horn Gear Spline:       25T (5.9mm)
Size:                               40mm x 20.1mm x 38.3mm
Weight:                          65g
Maximum Speed:        62RPM at 6V
Stall Torque:                 20kg.cm at 6V
Voltage:                         6-7 4V
Cable:                             22AWG, 75cm

• Step File

Use it to power the Studica Smart Robot Servo Programmer or any other device requiring 6V output and a TJC8 connector.

Specifications:

• 6V Output
• On/Off Power switch
• TJC8 connector
• Uses 4 x 1.5V AA Batteries (not included)

The Studica Servo Power Module is a 6V, 60W power injector that enables the use of high-power RC servos. The Servo Power Module passes through input signals unaltered while providing up to 60W of total output power across all eight channels.  The input and output channels accept standard 3-wire, 0.1” pitch, servo/PWM cables.

Features,

• Built in DC-DC converter
• Over-current shutdown
• ESD protection

Specifications,

• Nominal Input Voltage: 12V
• Operational Voltage Range: 6.0V
• Number of Channels: 8
• Max Current for All Channels Combined: 10A
• Total Continuous Power: 60W
• Size: 70mm x 45mm x 16mm
• Step File

The Servo Standard Front Mounting Bracket is one option to mount the Multi-Mode Smart Servo (75002) to the Studica building structure.

• Step File

The Servo Mount Flat Plate is one option to mount the Multi-Mode Smart Servo (75002) to the Studica building structure.

• Step File

The Servo Mount Offset Plate is one option to mount the Multi-Mode Smart Servo (75002) to the Studica building structure.

• Step File

The Servo Horn 25T is made of anodized 6061-T6 Aluminum and is used with the Multi-Mode Smart Servo (75002) and the Studica building structure.

• Step File

The 6mm Servo Hub 25T is made of anodized 6061-T6 Aluminum and is used to connect a servo motor to a D-Shaft axel.

• Step File
