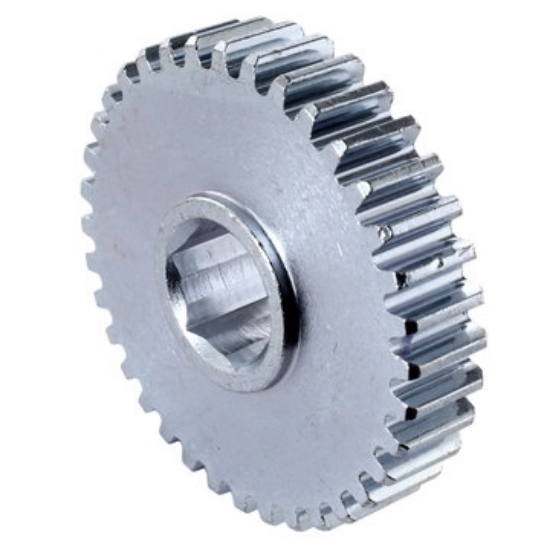

Standard 20DP Gears 1/2 in Hex, 43 Tooth

Soyez le premier a tester ce produit

20 DP gears are the most common gears used in FIRST Robotics Competition gearboxes. Want to replace one of your existing gears? Building a custom gearbox? This page is a hub for all of our standard width, symmetrical 3/8 hex and 1/2 inch hex bore 20 DP gears.

Check out our other 20 DP Gear pages for Pinion Gears and Shifting Gears and other special gears like those for the Toughbox line.

# Pièce: am-4711

$22,00

6 en stock

Quantité:

Aperçu
Commentaires

Part Number	Tooth Count	Hex Bore (in.)	Outside Dia (in.)	Pitch Dia (in.)	Weight (lbs)
am-3484	14	0.375	0.80	0.70	0.03
am-4389	15	0.375	0.85	0.75
am-4665	16	0.375	0.90	0.80	0.05
am-4390	17	0.375	0.95	0.85
am-3534	18	0.375	1.00	0.90	0.05
am-4212	18	0.500	1.00	0.90	0.05
am-3645	19	0.375	1.05	0.95	0.07
am-5131	19	0.500	1.05	0.95	0.06
am-4213	20	0.500	1.10	1.00	0.06
am-3820	20	0.375	1.10	1.00	0.07
am-3646	21	0.375	1.15	1.05	0.08
am-5132	21	0.500	1.15	1.05	0.07
am-3485	24	0.375	1.30	1.20
am-4214	24	0.500	1.30	1.20	0.11
am-3535	25	0.500	1.35	1.25	0.11
am-4391	25	0.375	1.35	1.25
am-3647	28	0.375	1.50	1.40
am-5133	28	0.500	1.50	1.40	0.14
am-4392	28	0.375	1.50	1.40
am-5134	29	0.375	1.55	1.45	0.11
am-5135	29	0.500	1.55	1.45	0.15
am-3536	30	0.375	1.60	1.50	0.11
am-4215	30	0.500	1.60	1.50	0.11
am-3815	32	0.500	1.70	1.60	0.11
am-5136	32	0.375	1.70	1.60	0.11
am-3537	34	0.375	1.80	1.70	0.13
am-5137	34	0.500	1.80	1.70	0.14
am-4186	35	0.375	1.85	1.75	0.14
am-3486	35	0.500	1.85	1.75	0.15
am-5147	35	0.500	1.85	1.75	0.05
am-5146	35	0.375	1.85	1.75	0.05
am-3816	36	0.500	1.90	1.80	0.15
am-4709	36	0.500	1.90	1.80	0.25
am-5138	36	0.375	1.90	1.80	0.13
am-3538	38	0.375	2.00	1.90	0.15
am-3718	38	0.500	2.00	1.90
am-3976	40	0.375	2.10	2.00	0.17
am-3487	40	0.500	2.10	2.00	0.18
am-4710	40	0.500	2.10	2.00	0.32
am-5148	40	0.500	2.10	2.00	0.06
am-4393	43	0.500	2.25	2.15	0.21
am-5139	43	0.375	2.25	2.15	0.19
am-5149	43	0.375	2.25	2.15	0.07
am-4711	43	0.500	2.25	2.15	0.37
am-5151	43	0.500	2.25	2.15	0.07
am-4394	45	0.500	2.35	2.25	0.20
am-4712	45	0.500	2.35	2.25	0.41
am-5140	45	0.375	2.35	2.25	0.20
am-5152	45	0.375	2.35	2.25	0.07
am-5153	45	0.500	2.35	2.25	0.07
am-5141	46	0.375	2.40	2.30	0.19
am-3819	46	0.500	2.40	2.30	0.19
am-4713	46	0.500	2.40	2.30	0.43
am-4395	48	0.500	2.50	2.40	0.26
am-4714	48	0.500	2.50	2.40	0.48
am-5142	48	0.375	2.50	2.40	0.22
am-3488	50	0.500	2.60	2.50	0.25
am-4715	50	0.500	2.60	2.50	0.50
am-4367	50	0.375	2.60	2.50	0.24
am-4720	50	0.375	2.60	2.50	0.51
am-5154	50	0.375	2.60	2.50	0.08
am-5155	50	0.500	2.6	2.5	0.09
am-4733	52	0.375	2.70	2.60
am-3821	52	0.500	2.70	2.60	0.23
am-3822	56	0.500	2.90	2.80	0.27
am-5156	56	0.375	2.90	2.80	0.01
am-5143	56	0.375	2.90	2.80	0.27
am-5157	56	0.500	2.90	2.80	0.10

Specifications

Bore: 0.501-0.507 in. Hex, 0.376-0.381 in. Hex
Diametral Pitch: 20
Face Width: 0.375 in.
Finish: Zinc Plated
Material: 4140 Steel
Width: 0.500 in.
