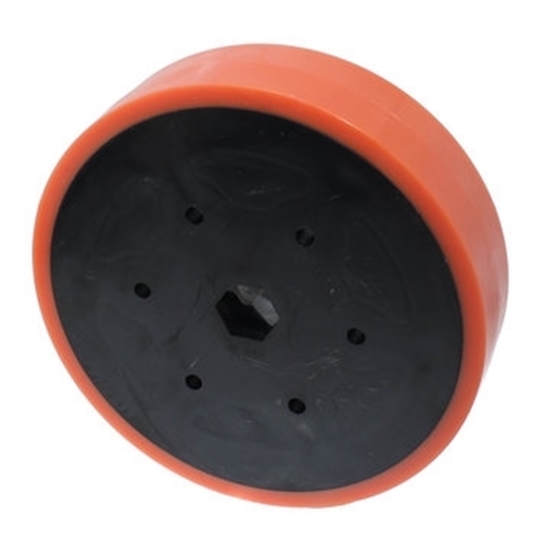

Stealth Wheels 1/2 Hex Bore, 3 Inch Dia, 40A Durometer Orange

This is a quick and reliable compact connector for flexible conductors. Splicing has never been easier. Lift the orange lever, and insert the conductor, close the lever. The lever clicks as it is lowered, actuating the CAGE CLAMP®, for superior connectivity. This tool-free connection and disconnection makes the connection simple to create and alter in the future.

These custom designed collar clamps have been designed specifically with FIRST Robotics Competition teams in mind. The one-piece collar clamp is a nice fractional 1/2 in. width to make shaft stackups easy. The clamping force is provided by a 10-32 socket head screw, which is bigger than most used in the competition marketplace.  This provides a high-strength clamping solution that shouldn't strip out when you need it most. You can even replace the 10-32 screw if it becomes lost with the screws historically used in the AM14U family of chassis. These thoughtfully designed collar clamps also have small bosses on each side. This allows these collar clamps to be installed directly adjacent to an FR8ZZ Round or FR8ZZ Hex bearing without rubbing on the outer races for smooth operation.

Specifications:

• Material: Steel
• Coating: Zinc Plated
• Thread: 10-32
• Length: 3/4"
• Head: Socket Head Cap Screw

This new custom designed collar clamp has been designed specifically with FIRST Robotics Competition teams in mind. This product is Out of Stock until Mid March

You asked, we listened! These 3" diameter HD (heavy-duty) solid-core Compliant Wheels are intended for manipulating objects where you need a little 'give' in your intake system. These wheels deform out of the way to allow rigid objects to be manipulated easily. This makes for high-performance intakes and internal conveyors. These wheels do not require the use of expensive hubs to be driven, thanks to their integrated high strength polycarbonate hubs - which are made from the same mold that creates our Hex Molded Spacers.

Different durometer ratings give each wheel unique characteristics. Green compliant wheels (35A durometer) are the softest and most compliant around objects, while maroon (45A) blue (50A) and black (60A) wheels are increasingly firm.

Specifications

• Bore: 0.375 in. Hex, 0.5 in. Hex, 5 mm Hex
• Color: Green, Black, Blue, Black
• Core Material: Polycarbonate
• Diameter: 3 in.
• Durometer: 35A (Green), 40A (Orange), 50A (Blue), 60A (Black)
• Tread Material: TPU
• Weight: 0.12 lbs
• Overall Width: 1 in.

Documents

Layout Print(s)

am-3946 3IN 375Hex Compliant Wheel REV3.PDF

am-3945 3IN 500Hex Compliant Wheel REV3.PDF

am-4537 3in 5mm Hex Molded Compliant Wheel.PDF

CAD File(s)

am-3946 3IN 375Hex Compliant Wheel REV 3.STEP

am-3945 3IN 500Hex Compliant Wheel REV 3.STEP

am-4537 3in 5mm Hex Molded Compliant Wheel.STEP

Compliant wheels are not intended for moving robots, but moving objects. Compliant wheels give way to allow rigid objects to be manipulated easily. A line of multiple wheels on a driven hex shaft creates a very effective roller that ignores variations in the objects being driven. This makes for high-performance intakes and internal conveyors. The wheels are sized for an interference fit and tend to stay in place on a shaft, though a shaft collar may be used to make absolutely sure the wheels stay clear of other mechanisms or maintain consistent spacing.

The hex bore versions of this wheel are undersized, and are intended to be an interference fit on their respective hex shafts. This interference fit allows for effective torque transfer from the hex shaft to the wheel, as well as allowing the wheel to remain in place along the shaft without the need for spacers or collar clamps:

Different durometer ratings give each wheel unique characteristics. Green wheels (35A durometer) are the softest and most compliant around objects, while orange (40A), maroon (45A), and blue (50A) wheels are increasingly firm. The increased firmness also allows the latter wheels to carry a higher RPM rating. Check out the downloads tab for a chart showing wheels and their maximum RPM.

Specifications

• Bore: 1/2 in. Hex, 3/8 in. Hex, Nub Bore
• Diameter: 2 in.
• Durometer: 35A (Green), ⠀40A (Orange), ⠀45A (Maroon), ⠀50A (Blue), 60A (Black)
• Hole Pattern: Qty 2 3.5 mm Holes on a 16 mm Circle for 8 mm bore wheels
• Material: TPU
• Maximum RPM: 6000 - 9000
• Weight: 0.035 lb.
• Width: 0.5 in.

Documents

Layout Print(s)

am-3571 2IN 375 Hex Compliant Wheel REV3.PDF

am-3462 2IN 500Hex Compliant Wheel REV3.PDF

am-3572 2IN 8mm Compliant Wheel REV4.PDF

CAD File(s)

am-3571 2IN 375Hex Compliant Wheel REV2.STEP

am-3572 2IN 8mm Compliant Wheel REV2.STEP

am-3462 2IN Molded 500Hex Compliant Wheel REV2.STEP

Additional File(s)

2 inch Compliant Wheel Expansion.pdf

The inside black portion of this wheel is made from molded polycarbonate plastic. The outer tread is TPU (Thermoplastic PolyUrethane). This robust but lightweight wheel provides good traction on carpet and soft tiles. Stealth wheels are the perfect drive wheel for smaller (<50 lb.) robots, or for intakes and other auxiliary robot mechanisms. These wheels are available in a variety of bores and durometers. 3 in. and 4 in. Stealth Wheels feature a 6 bolt pattern on a 1.875 in. bolt circle for mounting sprockets, hubs, and gears. Nub Bore Stealth Wheels feature a 4 bolt pattern on a 16 mm bolt circle found in most FIRST Tech Challenge building systems. The lower the durometer the softer the wheel is, this makes it wear away faster, but also makes it more grippy.

Machine Key, steel. Used in 2.5" CIM Motor shafts.

Specifications:

• Width: 2mm (0.078 inch)
• Length: 10mm (0.394 inch)
• Weight: 0.0008 pounds

You asked, we listened! These 3" diameter HD (heavy-duty) solid-core Compliant Wheels are intended for manipulating objects where you need a little 'give' in your intake system. These wheels deform out of the way to allow rigid objects to be manipulated easily. This makes for high-performance intakes and internal conveyors. These wheels do not require the use of expensive hubs to be driven, thanks to their integrated high strength polycarbonate hubs - which are made from the same mold that creates our Hex Molded Spacers.

Different durometer ratings give each wheel unique characteristics. Green compliant wheels (35A durometer) are the softest and most compliant around objects, while maroon (45A) blue (50A) and black (60A) wheels are increasingly firm.

Specifications

• Bore: 0.375 in. Hex, 0.5 in. Hex, 5 mm Hex
• Color: Green, Black, Blue, Black
• Core Material: Polycarbonate
• Diameter: 3 in.
• Durometer: 35A (Green), 40A (Orange), 50A (Blue), 60A (Black)
• Tread Material: TPU
• Weight: 0.12 lbs
• Overall Width: 1 in.

Documents

Layout Print(s)

am-3946 3IN 375Hex Compliant Wheel REV3.PDF

am-3945 3IN 500Hex Compliant Wheel REV3.PDF

am-4537 3in 5mm Hex Molded Compliant Wheel.PDF

CAD File(s)

am-3946 3IN 375Hex Compliant Wheel REV 3.STEP

am-3945 3IN 500Hex Compliant Wheel REV 3.STEP

am-4537 3in 5mm Hex Molded Compliant Wheel.STEP

This is a Heavy Duty Hex Bearing which outperforms our previous 1/2" Hex Bearings as it has a Heavy Duty Inner Race. This FR8ZZ-HexHD bearing, 1/2" hex bore, flanged, heavy duty inner race, shielded ball bearing, has an inner race that is thicker and stronger than our recent offering of a similar bearing (am-0279). This bearing has more material between the corners of the hex bore and the edge of the race making it stronger and much less likely to crack under high load.

This bearing is guaranteed to have a stronger, thicker race. 100% of these bearings have been quality checked for a smooth fit over 1/2" hex stock here at AndyMark. Many of our long-time customers will recognize this bearing, as it is the same version we sold back in 2008-2011, and we did not have any failures. Now, it is renamed and quality checked for your high load needs - including drive chassis with cantilevered wheels.

Specifications:

• Inside diameter: 0.500-0.502 inch hex bore
• Outside diameter: 1.125 inch
• Flange thickness: 0.062 inch
• Overall thickness: 0.312 inch
• Weight: 0.05 pound
