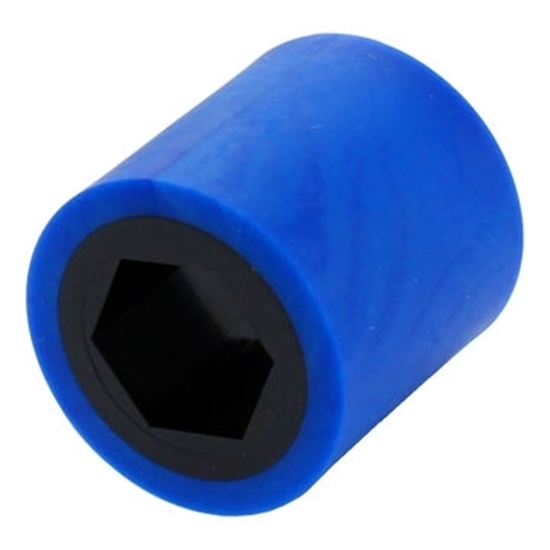

    Sushi Roller Intake Wheels - 1/2 in. Hex, 50a (Blue)

    The Sushi Roller Intake Wheels are an excellent choice for robot intakes, internal conveyors, feeder mechanisms, or anywhere you need a durable, compact and grippy roller. These rollers are made with a robust polycarbonate hex bore hub, so no external hub is necessary - just slide them onto a hex shaft, constrain them axially and you are good to go. Available in a range of durometers for a wide variety of applications, these cute little rollers are great for getting a grip on things!



    Specifications

    • Bore: 0.5 in. Hex, 5 mm Hex, 0.375 in. Hex
    • Core Material: Polycarbonate
    • Diameter: 1 in.
    • Durometer: 35A (Green), 40A (Orange), 50A (Blue), 60A (Black)
    • Tread Material: TPU
    • Weight: 0.022 lbs
    • Width: 1 in.
    # Pièce: am-4541_blue
    $6,00
    En stock
    Écrivez votre propre commentaire
    • Le produit peut être examinée que après l'achat
    • Seul les utilisateurs enregistrés peuvent écrire une critique
    *
    *
    • Mal
    • Excellent
    Les clients ayant acheté cet article ont également acheté

    4" Stealth Wheel, 1/2" Hex Bore, 50A, Blue, Durometer(am-2647_Blue)

    #am-2647_Blue
    $12,00 $12,15
    ( 68 En stock)

    The inside black portion of this wheel is made from molded polycarbonate plastic. The outer tread is TPU (Thermoplastic PolyUrethane). This robust but lightweight wheel provides good traction on carpet and soft tiles. Stealth wheels are the perfect drive wheel for smaller (<50 lb.) robots, or for intakes and other auxiliary robot mechanisms. These wheels are available in a variety of bores and durometers. 4 in. Stealth Wheels feature a 6 bolt pattern on a 1.875 in. bolt circle for mounting sprockets, hubs, and gears. Nub Bore Stealth Wheels feature a 4 bolt pattern on a 16 mm bolt circle found in most FIRST Tech Challenge building systems. The lower the durometer the softer the wheel is, this makes it wear away faster, but also makes it more grippy.

    Product Usage:
    Many thread locking materials are not compatible with polycarbonate and can eat away at the plastic. Be sure to check which adhesives are okay to use with this product.

    Specifications

    • Bore: 1/2 in. Hex, 3/8 in. Hex, Nub Bore, 5 mm Hex
    • Diameter: 2 in., 4 in.
    • Durometer: 35A (Green), ⠀40A (Orange), ⠀50A (Blue), ⠀60A (Black), ⠀80A (Gray)
    • Hole Pattern: Qty 4 3.5 mm Holes on a 16 mm Circle for 8 mm bore wheels
    • Material: TPU, Polycarbonate
    • Weight: 0.23lb, 0.1lb
    • Width: 1 in.

    Documents

    Layout Print(s)

    am-3664 2in 5mm Hex Stealth Wheel REV4.PDF

    am-3156 2IN 8mm Stealth Wheel REV3.PDF

    am-3436 2in 375Hex Stealth Wheel REV3.PDF

    am-3155 2in 500Hex Stealth Wheel REV3.PDF

    am-3665 4in 5mm Hex Stealth Wheel REV3.PDF

    am-2648 4IN 8mm Stealth Wheel REV5.PDF

    am-3435 4in 375Hex Stealth Wheel REV3.PDF

    am-2647 4in 500Hex Stealth Wheel REV3.PDF

    CAD File(s)

    am-3664 2in 5mm Hex Bore Stealth Wheel REV3.STEP

    am-3156 2IN 8mm Stealth Wheel.STEP

    am-3436 2IN 375Hex Stealth Wheel REV2.STEP

    am-3155 2IN 500Hex Stealth Wheel REV2.STEP

    am-3665 4IN 5mm Hex Stealth Wheel REV2.STEP

    am-2647 4inWheel 500 Hex REV2.STEP

    am-3435 4in Wheel Integrated Hub 375 HEX with Tread REV2.STEP

    am-2648 4inWheel 8mm Hub REV2.STEP

    Sushi Roller Intake Wheels - 1/2 in. Hex, 60a (Black)

    #am-4541_black
    $6,00
    ( 47 En stock)

    The Sushi Roller Intake Wheels are an excellent choice for robot intakes, internal conveyors, feeder mechanisms, or anywhere you need a durable, compact and grippy roller. These rollers are made with a robust polycarbonate hex bore hub, so no external hub is necessary - just slide them onto a hex shaft, constrain them axially and you are good to go. Available in a range of durometers for a wide variety of applications, these cute little rollers are great for getting a grip on things!



    Specifications

    • Bore: 0.5 in. Hex, 5 mm Hex, 0.375 in. Hex
    • Core Material: Polycarbonate
    • Diameter: 1 in.
    • Durometer: 35A (Green), 40A (Orange), 50A (Blue), 60A (Black)
    • Tread Material: TPU
    • Weight: 0.022 lbs
    • Width: 1 in.

    1 in. Quad Gusset

    #am-4159
    $5,00

    We are pleased to offer these new gussets that are suitable for 1" based building systems. These thoughtfully designed gussets are made from 1/8" thick 6061-T6 aluminum, which is a much stronger material than other 0.09" 5052 gussets. All of these framing gussets feature a 1" linear hole pattern, with holes suitable for either #10 screws or 3/16" rivets.



    On all of the angle gussets, a generous radius was used on the inside corner for maximum strength. The various angle gussets, along with the quad and tee gusset are used together to create structures and sub-assemblies for your robot. Our bearing and Sport gussets are perfect building blocks to create a massive variety of mechanisms and assemblies to suit your needs.



    Specifications

    • Hole Pattern: Plates feature 0.20 in. Holes on a 1 in. Center to Center Spacing
    • Material: 6061-T6 Aluminum
    • Thickness: 0.125 in



    Documents



    Layout Print(s)

    am-3860 90 Gusset REV2.PDF

    am-4158 1IN Tee Gusset.PDF

    am-4159 1IN Quad Gusset.PDF

    am-4160 1IN 30deg Gusset.PDF

    am-4161 1in 45deg Gusset.PDF

    am-4162 1in 60deg Gusset.PDF

    am-4163 1in 120deg Gusset.PDF

    am-4164 1in 135deg Gusset.PDF

    am-4165 1in 150deg Gusset.PDF

    am-4166 1IN Sport Double Bearing Mount.PDF

    am-4167 1IN 57Sport Side Mount Gusset.PDF

    am-4168 1IN Bearing Side Mount Gusset.PDF



    CAD File(s)

    am-3860 90 Gusset REV2.STEP

    am-4158 1IN Tee Gusset.STEP

    am-4159 1IN Quad Gusset.STEP

    am-4160 1IN 30deg Gusset.STEP

    am-4161 1in 45deg Gusset.STEP

    am-4162 1in 60deg Gusset.STEP

    am-4163 1in 120deg Gusset.STEP

    am-4164 1in 135deg Gusset.STEP

    am-4165 1in 150deg Gusset.STEP

    am-4166 1IN Sport Double Bearing Mount.STEP

    am-4167 1IN 57Sport Side Mount Gusset.STEP

    am-4168 1IN Bearing Side Mount Gusset.STEP

    90 Degree Gusset

    #am-3860
    $5,00 $6,08
    ( 40 En stock)

    We are pleased to offer these new gussets that are suitable for 1" based building systems. These thoughtfully designed gussets are made from 1/8" thick 6061-T6 aluminum, which is a much stronger material than other 0.09" 5052 gussets. All of these framing gussets feature a 1" linear hole pattern, with holes suitable for either #10 screws or 3/16" rivets.



    On all of the angle gussets, a generous radius was used on the inside corner for maximum strength. The various angle gussets, along with the quad and tee gusset are used together to create structures and sub-assemblies for your robot. Our bearing and Sport gussets are perfect building blocks to create a massive variety of mechanisms and assemblies to suit your needs.



    Specifications

    • Hole Pattern: Plates feature 0.20 in. Holes on a 1 in. Center to Center Spacing
    • Material: 6061-T6 Aluminum
    • Thickness: 0.125 in



    Documents

    Layout Print(s)

    am-3860 90 Gusset REV2.PDF

    am-4158 1IN Tee Gusset.PDF

    am-4159 1IN Quad Gusset.PDF

    am-4160 1IN 30deg Gusset.PDF

    am-4161 1in 45deg Gusset.PDF

    am-4162 1in 60deg Gusset.PDF

    am-4163 1in 120deg Gusset.PDF

    am-4164 1in 135deg Gusset.PDF

    am-4165 1in 150deg Gusset.PDF

    am-4166 1IN Sport Double Bearing Mount.PDF

    am-4167 1IN 57Sport Side Mount Gusset.PDF

    am-4168 1IN Bearing Side Mount Gusset.PDF

    CAD File(s)

    am-3860 90 Gusset REV2.STEP

    am-4158 1IN Tee Gusset.STEP

    am-4159 1IN Quad Gusset.STEP

    am-4160 1IN 30deg Gusset.STEP

    am-4161 1in 45deg Gusset.STEP

    am-4162 1in 60deg Gusset.STEP

    am-4163 1in 120deg Gusset.STEP

    am-4164 1in 135deg Gusset.STEP

    am-4165 1in 150deg Gusset.STEP

    am-4166 1IN Sport Double Bearing Mount.STEP

    am-4167 1IN 57Sport Side Mount Gusset.STEP

    am-4168 1IN Bearing Side Mount Gusset.STEP

    2" Stealth Wheel, 1/2" Hex Bore, 50A Durometer

    #am-3155_Blue
    $9,00 $10,42
    ( 84 En stock)

    The inside black portion of this wheel is made from molded polycarbonate plastic. The outer tread is TPU (Thermoplastic PolyUrethane). This robust but lightweight wheel provides good traction on carpet and soft tiles. Stealth wheels are the perfect drive wheel for smaller (<50 lb.) robots, or for intakes and other auxiliary robot mechanisms. These wheels are available in a variety of bores and durometers. 4 in. Stealth Wheels feature a 6 bolt pattern on a 1.875 in. bolt circle for mounting sprockets, hubs, and gears. Nub Bore Stealth Wheels feature a 4 bolt pattern on a 16 mm bolt circle found in most FIRST Tech Challenge building systems. The lower the durometer the softer the wheel is, this makes it wear away faster, but also makes it more grippy.

    Product Usage:
    Many thread locking materials are not compatible with polycarbonate and can eat away at the plastic. Be sure to check which adhesives are okay to use with this product.

    Specifications

    • Bore: 1/2 in. Hex, 3/8 in. Hex, Nub Bore, 5 mm Hex
    • Diameter: 2 in., 4 in.
    • Durometer: 35A (Green), ⠀40A (Orange), ⠀50A (Blue), ⠀60A (Black), ⠀80A (Gray)
    • Hole Pattern: Qty 4 3.5 mm Holes on a 16 mm Circle for 8 mm bore wheels
    • Material: TPU, Polycarbonate
    • Weight: 0.23lb, 0.1lb
    • Width: 1 in.

    Documents

    Layout Print(s)

    am-3664 2in 5mm Hex Stealth Wheel REV4.PDF

    am-3156 2IN 8mm Stealth Wheel REV3.PDF

    am-3436 2in 375Hex Stealth Wheel REV3.PDF

    am-3155 2in 500Hex Stealth Wheel REV3.PDF

    am-3665 4in 5mm Hex Stealth Wheel REV3.PDF

    am-2648 4IN 8mm Stealth Wheel REV5.PDF

    am-3435 4in 375Hex Stealth Wheel REV3.PDF

    am-2647 4in 500Hex Stealth Wheel REV3.PDF

    CAD File(s)

    am-3664 2in 5mm Hex Bore Stealth Wheel REV3.STEP

    am-3156 2IN 8mm Stealth Wheel.STEP

    am-3436 2IN 375Hex Stealth Wheel REV2.STEP

    am-3155 2IN 500Hex Stealth Wheel REV2.STEP

    am-3665 4IN 5mm Hex Stealth Wheel REV2.STEP

    am-2647 4inWheel 500 Hex REV2.STEP

    am-3435 4in Wheel Integrated Hub 375 HEX with Tread REV2.STEP

    am-2648 4inWheel 8mm Hub REV2.STEP

    0.5 in. Round Thin Line Collar Clamp

    #am-3792
    $6,92 $7,82
    ( 7 En stock)

    This collar clamp is a one-piece shaft collar with a 1/2 in. bore, 0.984 in. OD, and 0.236 in. width. The thin line design reduces weight and allows for use in confined spaces. It has the clamp style benefits of not marring the shaft, easy removability, and indefinite adjustability while commonly being used for guiding, spacing, stopping, mounting, and component alignment.

    Specifications:

    • Material: 2024 Aluminum
    • Bore: 0.500 in.
    • Outside Diameter: 0.984 in.
    • Thickness: 0.236 in.
    • Weight: 0.017 Pounds
    • Clamping Screws: M2 5x8 SHCS

    1 in. Tee Gusset

    #am-4158
    $5,00
    (En stock)

    We are pleased to offer these new gussets that are suitable for 1" based building systems. These thoughtfully designed gussets are made from 1/8" thick 6061-T6 aluminum, which is a much stronger material than other 0.09" 5052 gussets. All of these framing gussets feature a 1" linear hole pattern, with holes suitable for either #10 screws or 3/16" rivets.



    On all of the angle gussets, a generous radius was used on the inside corner for maximum strength. The various angle gussets, along with the quad and tee gusset are used together to create structures and sub-assemblies for your robot. Our bearing and Sport gussets are perfect building blocks to create a massive variety of mechanisms and assemblies to suit your needs.



    Specifications

    • Hole Pattern: Plates feature 0.20 in. Holes on a 1 in. Center to Center Spacing
    • Material: 6061-T6 Aluminum
    • Thickness: 0.125 in





    2" Compliant Wheel, 1/2 inch Hex, 35 Durometer Green

    #am-3462_green
    $8,00 $10,42
    ( 59 En stock)

    Compliant wheels are not intended for moving robots, but moving objects. Compliant wheels give way to allow rigid objects to be manipulated easily. A line of multiple wheels on a driven hex shaft creates a very effective roller that ignores variations in the objects being driven. This makes for high-performance intakes and internal conveyors. The wheels are sized for an interference fit and tend to stay in place on a shaft, though a shaft collar may be used to make absolutely sure the wheels stay clear of other mechanisms or maintain consistent spacing.



    The hex bore versions of this wheel are undersized, and are intended to be an interference fit on their respective hex shafts. This interference fit allows for effective torque transfer from the hex shaft to the wheel, as well as allowing the wheel to remain in place along the shaft without the need for spacers or collar clamps:



    Compliant Wheel Sizing



    Different durometer ratings give each wheel unique characteristics. Green wheels (35A durometer) are the softest and most compliant around objects, while orange (40A), maroon (45A), and blue (50A) wheels are increasingly firm. The increased firmness also allows the latter wheels to carry a higher RPM rating. Check out the downloads tab for a chart showing wheels and their maximum RPM.





    Specifications



    • Bore: 1/2 in. Hex, 3/8 in. Hex, Nub Bore
    • Diameter: 2 in.
    • Durometer: 35A (Green), ⠀40A (Orange), ⠀45A (Maroon), ⠀50A (Blue), 60A (Black)
    • Hole Pattern: Qty 2 3.5 mm Holes on a 16 mm Circle for 8 mm bore wheels
    • Material: TPU
    • Maximum RPM: 6000 - 9000
    • Weight: 0.035 lb.
    • Width: 0.5 in.



    Documents

    Layout Print(s)

    am-3571 2IN 375 Hex Compliant Wheel REV3.PDF

    am-3462 2IN 500Hex Compliant Wheel REV3.PDF

    am-3572 2IN 8mm Compliant Wheel REV4.PDF

    CAD File(s)

    am-3571 2IN 375Hex Compliant Wheel REV2.STEP

    am-3572 2IN 8mm Compliant Wheel REV2.STEP

    am-3462 2IN Molded 500Hex Compliant Wheel REV2.STEP

    Additional File(s)

    2 inch Compliant Wheel Expansion.pdf
