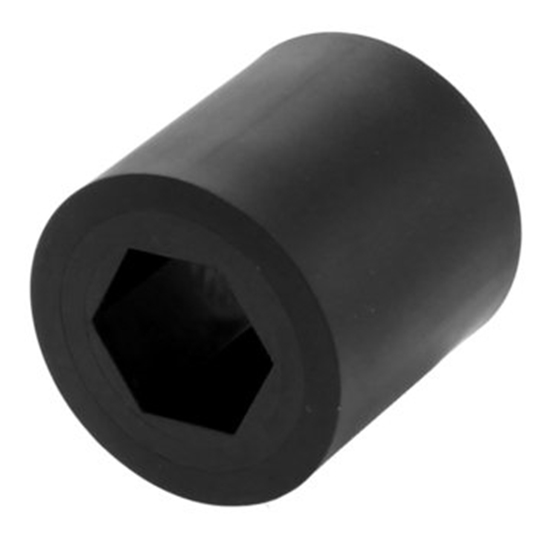

    Sushi Roller Intake Wheels - 1/2 in. Hex, 60a (Black)

    The Sushi Roller Intake Wheels are an excellent choice for robot intakes, internal conveyors, feeder mechanisms, or anywhere you need a durable, compact and grippy roller. These rollers are made with a robust polycarbonate hex bore hub, so no external hub is necessary - just slide them onto a hex shaft, constrain them axially and you are good to go. Available in a range of durometers for a wide variety of applications, these cute little rollers are great for getting a grip on things!



    Specifications

    • Bore: 0.5 in. Hex, 5 mm Hex, 0.375 in. Hex
    • Core Material: Polycarbonate
    • Diameter: 1 in.
    • Durometer: 35A (Green), 40A (Orange), 50A (Blue), 60A (Black)
    • Tread Material: TPU
    • Weight: 0.022 lbs
    • Width: 1 in.
    # Pièce: am-4541_black
    $6.00
    Disponibilité: 42 en stock
