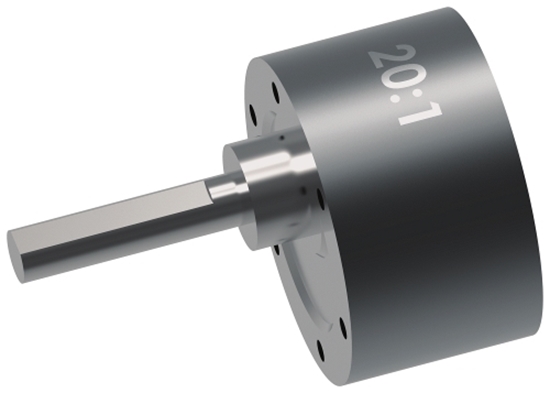

TETRIX MAX TorqueNADO Motor Gearbox 20:1

Take your TETRIX robots to the next level with a stronger 12-volt DC motor with 100 rpm and 700 oz-in. of torque. The motor features a built-in, high-resolution Hall effect encoder for precise motor control. Based on user feedback and created specifically to withstand the stress of intense robotics competitions, this is our strongest TETRIX motor yet. TorqueNADO is compatible with allTetrix Max; DC Motor Mounts.

Specs:

• Weight: 324 grams
• Operating Voltage: 12 volts
• Length: 134.1 mm/5.29 inches
• Gear Ratios: 60:1
• Diameter: 37 mm

May be used with 6mm D-Shape Shaft to secure wheels in their position.


Specifications:

• Φ20.0mm*8.0mm thick
• 1*M3 thread for M3 SHCS on the clamp side
• Φ6.0mm D hole
• AL6061-T6
• Step File

The NEW 40:1Tetrix Max; TorqueNADO Motor Gearboxes give more rpm when compared to the 60:1 gearbox included with the TorqueNADO motor. These gearboxes are designed with the same 37 mm diameter as the original 60:1 gearbox, while using the same 6 mm D-shaft and alignment pins, so getting the additional speed you need is a breeze.

The Motor Mount Plate is used with the Maverick 12V DC Gear Motor  (Part# 75001) to attach it inside the anyone of the U Channels 76010 to 76018. This is an example of a chassis with 4 motors mounted inside the U-Channel using a Motor Mounting Plate.

• Step File

Used to change motor to axle motion 90 degrees. This can be used in between the U-channel.

Specifications:

• Material: Steel
• Number of teeth: 30
• Set of 2 for 1-1 drives
• Step File

The D-Shaft Collar is 6mm ID and 12mm OD. The inside diameter will fit any of the D-Shaft axels.

Specifcations:

• Material: 6061-T6 Aluminum

• Step File

Φ29.0mm*16.0mm thick
6*M3 thread tapping through
(including 2*M3 thread for M3 SHCS)
Φ6.0mm D hole
AL6061-T6

The Studica U Channel is 3mm thick and has a 48mm x 48mm profile. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

Specifications:

• Material: 6061-T6 Aluminum
• Thickness - 3mm
• Height - 48mm
• Width - 48mm
• Length - 336mm
• Hole pattern - 7
• Step File

TETRIX MAX Motor Shaft Hubs attaches wheels and gears to motor shafts. Each hub comes with a screw and is made of heavy-duty aluminum.

• Quantity: pkg of 2
• Size: 6 mm
• Material: 7005 Aluminum
• Note: Includes 10-32 set screw

The 20 Tooth GT2-6mm Timing Belt Pulley can be used with any of the GT2 belts.

Specifications:

• 20 Tooth Timing Pulley
• 6mm Bore
• Material: 6061 T6 Aluminum
• Step File
