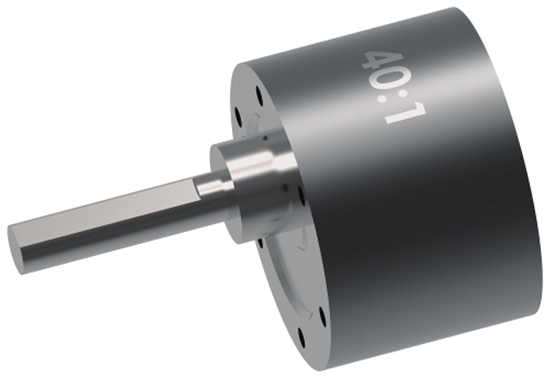

TETRIX MAX TorqueNADO Motor Gearbox 40:1

These gearboxes are designed with the same 37 mm diameter as the original 60:1 gearbox, while using the same 6 mm D-shaft and alignment pins, so getting the additional speed you need is a breeze.

Used with Studica Omni and Mecanum wheels for a strong axel hold.

Specifications:

• Material: 6061-T6 Aluminum
• Color: Blue
• Step File

Made of aluminum, the Studica Clamping Shaft Hub is used with flex and drive wheels

Specifcation:

• Material: 6061-T6 Aluminum
• 6mm ID
• Hole pattern for connecting to structure
• Step File

Take your TETRIX robots to the next level with a stronger 12-volt DC motor with 100 rpm and 700 oz-in. of torque. The motor features a built-in, high-resolution Hall effect encoder for precise motor control. Based on user feedback and created specifically to withstand the stress of intense robotics competitions, this is our strongest TETRIX motor yet. TorqueNADO is compatible with allTetrix Max; DC Motor Mounts.

Specs:

• Weight: 324 grams
• Operating Voltage: 12 volts
• Length: 134.1 mm/5.29 inches
• Gear Ratios: 60:1
• Diameter: 37 mm

The D-Shaft Collar is 6mm ID and 12mm OD. The inside diameter will fit any of the D-Shaft axels.

Specifcations:

• Material: 6061-T6 Aluminum

• Step File

The Motor Mount Plate is used with the Maverick 12V DC Gear Motor  (Part# 75001) to attach it inside the anyone of the U Channels 76010 to 76018. This is an example of a chassis with 4 motors mounted inside the U-Channel using a Motor Mounting Plate.

• Step File

The 100mm (4") Flex Wheel can be used for intake systems and conveyors.

Specifications:

• Diameter:   100mm (4")
• Axial width:  25mm
• Hub:  1/2" Inner Hex
• Inner Material: Molded Plastic in Yellow
• Outer Material: TPU Polyurethane in Green
• Outer Material Durometer: 35A
• Weight: 0.038kg
• Step File

The 50mm (2") Drive Wheel can be used as a simple wheel providing good traction on carpet and tile flooring. They can also be used for intake systems.

Use with 1/2" hex shaft of use 6mm Shaft Hub to use connect 6mm D-Shaft Axles.

Specifications:

• Diameter:   50mm (2")
• Axial width:  25mm
• Hub:  1/2" Inner Hex
• Inner Material: Molded Plastic in Yellow
• Outer Material: TPU Polyurethane in Green
• Outer Material Durometer: 35A
• Weight: 0.038kg
• Step File

The Flange Bearing 14mm OD fits any of the channel and flat brackets with the common hole pattern having a center hole of 14mm. The inside diameter will fit any of the D-Shaft axels.

• Quantity: 1 or 12
• Material: AISI440C stainless steel
• Sealed Type: ZZ metal shields
• Precision: ABEC-3
• Clearance: C0
• Lubrication:Kyodo SRL Grease
• ID (inner diameter)/Bore:6 mm
• OD (outer diameter): 14 mm
• OD of Flanged Size: 15 mm
• Width: 5 mm
• Thickness of Flange: 1 mm
• Step File

The Intake Kit can be used to create intake systems and is ideal for the FIRST Technical Challenge (FTC) and World Robotics Olympiad (WRO). Used with the Silicone Rubber Tubing #76410

Specifications:

• Main piece
  • hex width: 20.78mm*10.0mm thick
  • 6*M6 tapped holes
  • 1*M4 tappped hole for M4 set screw
  • 6.0mm Diameter D Hole
  • Material AL6061-T6
  • Φ7.5mm*14.0mm
• Pins
  • 6PCS in a pack
  • M6*4.0mm thread
  • Material SS303
• Step file
