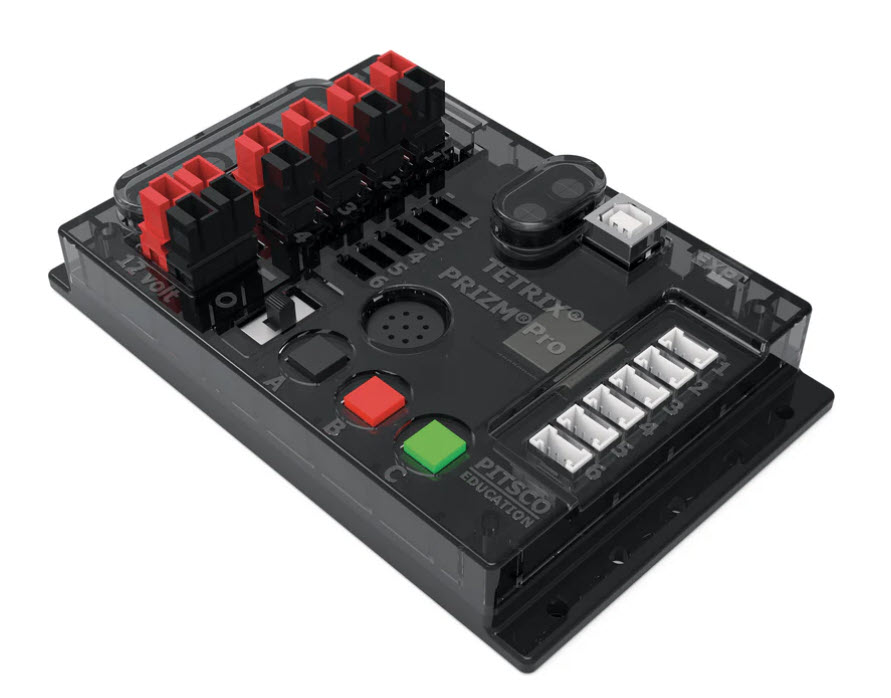

TETRIX PRIZM Pro Controller

Level up your bot with TETRIX^® PRIZM^® Pro, our newest robotics controller.

Use PRIZM Pro alongside the TETRIX MAX robotics system to build and code smart, precise robots that are as real world as it gets. This user-friendly robotics controller makes it easy for teachers to engage their students in hands-on programming and robotics activities. The plug-and-play design, combined with a wide range of inputs and outputs, opens the door for learners to explore concepts such as sensors, power, gear ratios, and more.

# Pièce: 93146

$359,00

Rupture de stock - en rupture de stock et sera expédié une fois en stock.

Quantité:

Aperçu

Building upon the solid foundation of its predecessor, PRIZM Pro offers educators and students enhanced features, improved performance, and support for additional programming languages. For example, the PRIZM Pro comes with two additional DC motors ports, bringing the total number to four. This allows students to build and control four-wheel-drive Mecanum and omni-directional-drive robots without the need for an additional motor controller.

PRIZM Pro includes:

8 MB flash programmable memory
240 MHz processor
Bluetooth 5 LE and 2.4 GHz Wi-Fi, allowing for wireless monitoring of sensor and motor encoder data
Four DC motor ports and four encoder ports
Six sensor ports, configurable for analog input, digital input/output, and other I2C data types
Three programmable LEDs
Built-in speaker and power on/off switch
Support for Arduino C, Blockly, and MicroPython programming languages
Compatible with AI camera vision (sold separately)

PRIZM Pro includes programming support for the Pitsco Learning Portal, Arduino Software (IDE), and Arduino Web Editor.

PRIZM Pro is compatible with the TETRIX Tele-Op Control Module in combination with PS5® DualSense® wireless controller.

A également acheté

Servo Hub Pro

#76152

$7,73

(En stock)

The Studica Servo Hub Pro can be used with the Multi Mode Servo, Multi Mode Servo 200, or most servos with a 25 Tooth gear.

Specifcations:

Spline: 25 Tooth, 3.8mm deep
Height: 9mm
OD: 30mm
Material: 6061-T6 Aluminum
Step File

TETRIX MAX TorqueNADO Motor Gearbox 20:1

#45424

$17,25

( 2 En stock)

These gearboxes are designed with the same 37 mm diameter as the original 60:1 gearbox, while using the same 6 mm D-shaft and alignment pins, so getting the additional speed you need is a breeze.

336mm U-Channel

#76012

$18,30

( 155 En stock)

The Studica U Channel is 3mm thick and has a 48mm x 48mm profile. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

Specifications:

Material: 6061-T6 Aluminum
Thickness - 3mm
Height - 48mm
Width - 48mm
Length - 336mm
Hole pattern - 7
Step File

Motor Mount Plate

#76140

$9,14

( 680 En stock)

The Motor Mount Plate is used with the Maverick 12V DC Gear Motor (Part# 75001) to attach it inside the anyone of the U Channels 76010 to 76018. This is an example of a chassis with 4 motors mounted inside the U-Channel using a Motor Mounting Plate.

Step File

30 Tooth Bevel Gear x 1-to-1 Set (2 pack)

#76219-2

$31,99 $41,66

( 2448 En stock)

Used to change motor to axle motion 90 degrees. This can be used in between the U-channel.
