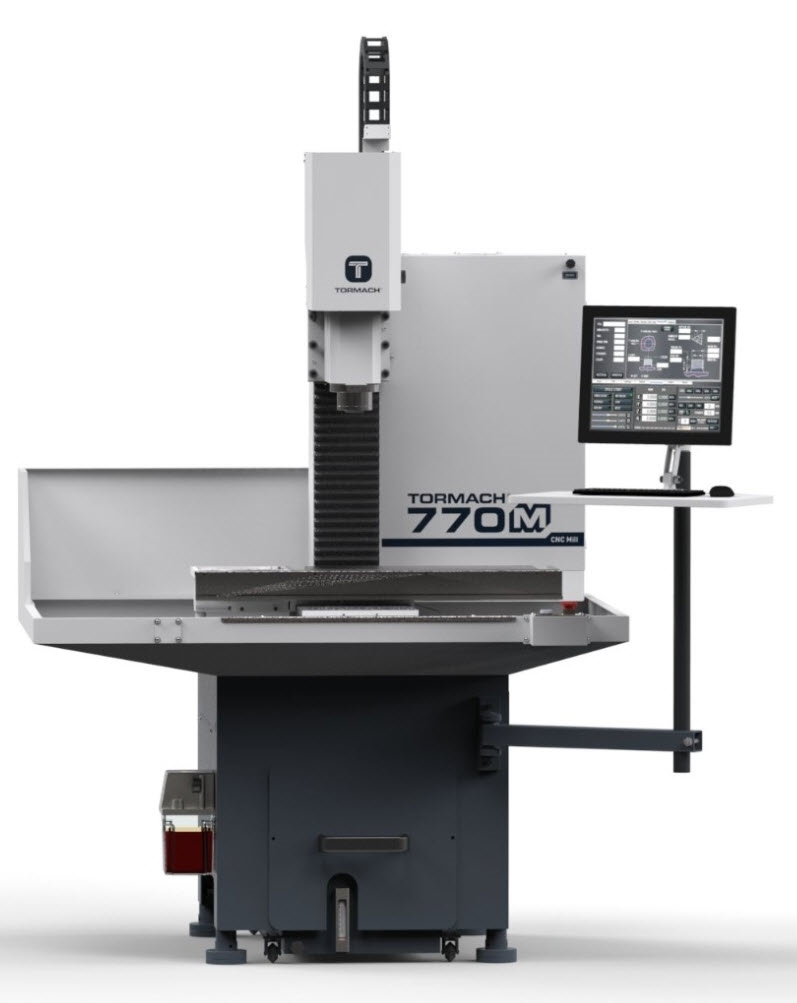

Tormach 770M CNC MILL - Starter Package

Soyez le premier a tester ce produit

The Tormach 770M is a Compact 3-Axis CNC mill with PathPilot controller. The Starter Package for the 770M has everything you need to get started. Comes with a mill stand, tooling, and PathPilot controller.

Includes:

770M Mill

Printed manual for 770M Mill

Lyndex TTS™ Adapter Collet: R8

770MX / 770M Stand

770M Chip Tray

Manual Oil Pump

770M Backsplash Kit

Lifting Bar Kit

Machine Way Oil (1 Gallon)

PathPilot Controller

PathPilot Controller VESA Mount

Standard LCD Monitor

Waterproof Mouse

Waterproof Mini-Keyboard

Jog Shuttle Controller

Controller Arm

5 in. (127 mm) CNC Vise

TTS™ CNC Operator Set with Tormach Tool Assistant

# Pièce: 38251-SP

Demander un devis

Quantité:

Aperçu
Commentaires

Ideal for one-offs, short-run production, rapid prototyping, secondary operations, and educational institutions alike, our 770M mill enables you to:

Cut tough metals like titanium, stainless steel, and hardened tool steel as well as softer materials like aluminum, plastics, and wood with the 10,000 rpm, 1.5 hp (1.1 kW) spindle
Expand your capabilities as you grow with plug-and-play accessories, such as a power drawbar, automatic tool changer, and 4th axis
Easily set up and run jobs with PathPilot, our exclusive, user-friendly CNC control system that gives you:
- Industry-standard G-code programming that works with all major CAM packages
- Powerful conversational interface for walk-up, shop-floor programming
- Intuitive, integrated probing and tool setting routines
- Support for 4-axis continuous machining
- Built-in Dropbox support for seamlessly transferring programs from your CAM workstation

Some assembly required.

Requirements

Installation:
- 1500 lb (680 kg) capacity lifting apparatus, such as an engine hoist or gantry crane
- Lifting Bar Kit (sold separately for 770M Entry Package; included with all others)
- Pallet jack
NOTE: For small spaces, we recommend also using the Moving Kit (sold separately).
Power:
- Primary Power: 115 Vac, 50/60 Hz, single-phase
- Required Circuit Amperage: 15 A
Space:
NOTE: For detailed space planning information, refer to the 770M Machine Footprint.
- Minimum Depth: 48.5 in. (1.2 m)
- Minimum Height: 89 in. (2.3 m)
- Minimum Width: 76 in. (1.9 m)

Specifications

Travels	X-Axis: 14 in. (356 mm) Y-Axis: 7.5 in. (191 mm) Z-Axis: 13.25 in. (337 mm)
Spindle	Spindle Power: 1.5 hp (1.1 kW) Maximum Speed: 10,000 rpm Transmission: Poly-V belt Spindle Taper: R8 Thread Machining: Tension/compression, thread mill
Feed Rate	X-Axis and Y-Axis: 135 in./min (3.43 m/min) Z-Axis: 110 in./min (2.79 m/min)
Dimensions	Table Size: 26 in. × 8 in. (660 mm x 203 mm) Table Slots: 5/8 in. (15.9 mm); three slots Spindle Nose to Table Max. Clearance: 13.25 in. (337 mm) Spindle Centerline to Machine Column: 8.6 in. (218 mm) Typical System Footprint: 56 in. × 48.5 in. (1.4 m x 1.2 m) Overall System Height: 88 in. (2.2 m) Typical System Weight: 950 lb (431 kg)
Controller	PathPilot

What’s In the Box?

The 770M comes with:

Cable kit
Factory inspection and certification report
Installation tools
Operator manual
PathPilot Controller
PN 50568 TTS Adapter Collet: R8
