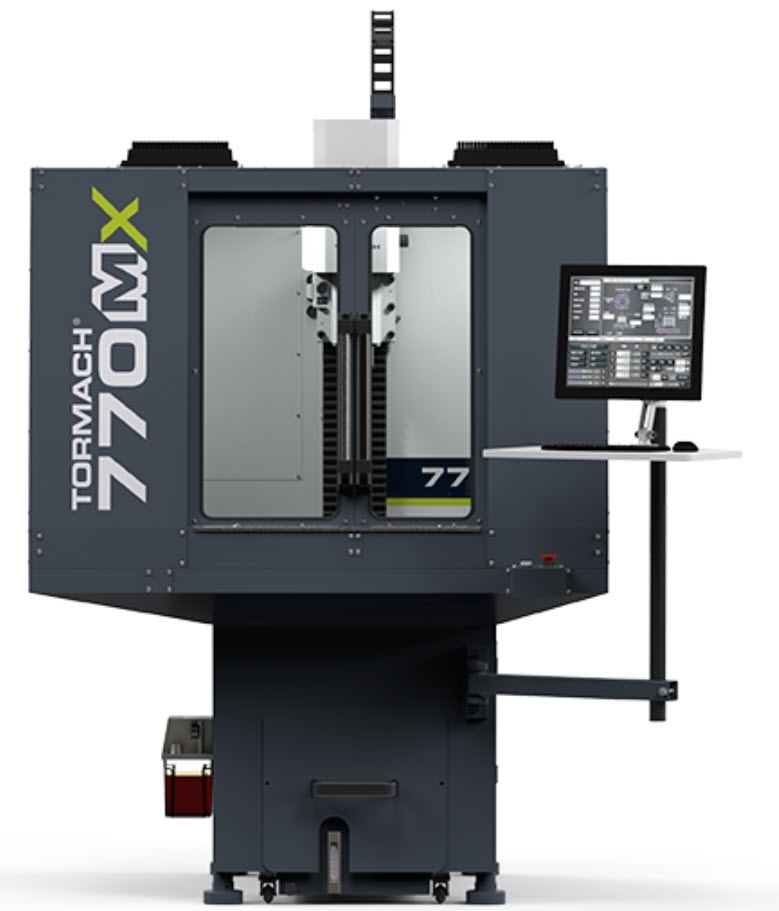

    Tormach 770MX - Standard Package

    The 770MX is equipped with a trio of servo motors, an encoder for rigid tapping, and a BT30 spindle. Faster travel speeds cut down program times, and a beefier spindle chews through aluminum, titanium, hardened steels, and alloys without a concern of tool pullout.



    The 770MX Standard Package includes a stand, enclosure, power drawbar, touchscreen, tooling, and more.



    Includes:



    770MX Mill

    770MX / 770M Stand

    770MX Chip Tray

    770MX Enclosure Kit

    Manual Oil Pump

    Lifting Bar Kit

    770MX Owner's Kit

    PathPilot Controller - Rev. C

    Touch Screen Kit

    Waterproof Mouse

    Waterproof Mini-Keyboard

    Jog Shuttle Controller

    Controller Arm

    BT30 Operator's Kit (Inch)















    # Pièce: 39315-SP
    Demander un devis

    Ideal for one-offs, short-run production, rapid prototyping, secondary operations, and educational institutions alike, our 770MX mill enables you to:

    • Cut tough metals like titanium, stainless steel, and hardened tool steel as well as softer materials like aluminum, plastics, and wood with the 10,000 rpm, 1.5 hp (1.12 kW) spindle
    • Expand your capabilities as you grow with plug-and-play accessories, such as an automatic tool changer or a 4th axis
    • Easily set up and run jobs with PathPilot, our exclusive, user-friendly CNC control system that gives you:
      • Industry-standard G-code programming that works with all major CAM packages
      • Powerful conversational interface for walk-up, shop-floor programming
      • Intuitive, integrated probing and tool setting routines
      • Support for 4-axis continuous machining
      • Built-in Dropbox support for seamlessly transferring programs from your CAM workstation
    • Rigid tap like a champ

    Some assembly required.

    Please allow 6-8 weeks for delivery

    Requirements

    • Installation:
      • 1500 lb (680 kg) capacity lifting apparatus, such as an engine hoist or gantry crane
      • Lifting Bar Kit (sold separately)
      • Pallet jack

      NOTE: For small spaces, we recommend also using the Moving Kit (sold separately).

    • Power:
      • Primary Power: 115 Vac, 50/60 Hz, single-phase
      • Required Circuit Amperage: 15 A
    • Space:

      NOTE: For detailed space planning information, refer to the Documents section below.

      • Minimum Depth: 48.5 in. (1.2 m)
      • Minimum Height: 89 in. (2.3 m)
      • Minimum Width: 76 in. (1.9 m)

    Specifications

    Travels

    • X-Axis: 14 in. (356 mm)
    • Y-Axis: 7.5 in. (191 mm)
    • Z-Axis: 13.25 in. (337 mm)

    Spindle

    • Spindle Power: 1.5 hp (1.12 kW)
    • Maximum Speed: 10,000 rpm
    • Transmission: Poly-V belt
    • Spindle Taper: BT30
    • Thread Machining: Rigid tapping, tension/compression, thread mill

    Maximum Feed Rate

    • X-Axis and Y-Axis: 300 IPM (7.62 m/min)
    • Z-Axis: 250 IPM (6.35 m/min)

    Machine Specifications

    • Table Size: 26 in. × 8 in. (660 mm x 203 mm)
    • Table Slots: 5/8 in. (15.9 mm); three slots
    • Spindle Nose to Table Max. Clearance: 12.75 in. (324 mm)
    • Spindle Centerline to Machine Column: 8.6 in. (218 mm)
    • Typical System Footprint: 56 in. × 48.5 in. (1422mm x 1232 mm)
    • Overall System Height: 88 in. (2234 mm)
    • Typical System Weight: 950 lb (431 kg)
    • Power Drawbar: Pre-installed

    Frame

    • Frame and Table: Cast iron frame and table, with hand-scraped hydrodynamic ways and tapered adjustment gibs
    • Way Surfaces: Low-friction PTFE-filled, Acetyl-bonded sliding surface. Similar to Rulon® and Turcite®.

    Controller

    • PathPilot - Premium Features Included

    What’s In the Box?

    The 770MX comes with:

    • Cable kit
    • Factory inspection and certification report
    • Installation tools
    • Operator manual
    • PathPilot Controller

    Downloads & Resources
