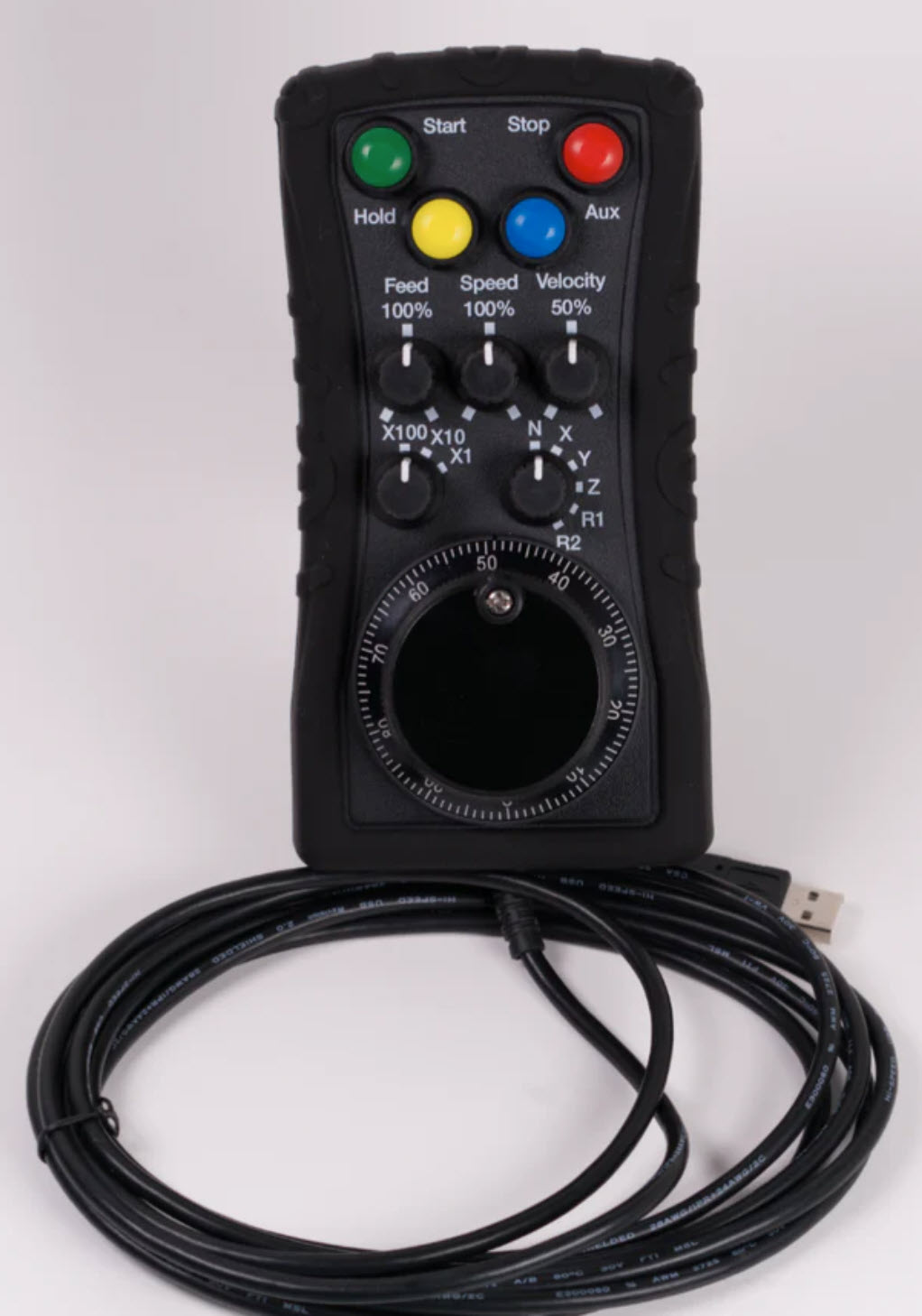

Tormach Path Pilot Hand Held Console

CNC Control Pendant that functions as a hand held console for Tormach Path Pilot CNC machines. It is 100% plug and play, requiring no modifications to the Path Pilot controller software. It connects to Path Pilot via a USB cable.

Includes a black rubber boot and 2 neodymium magnets for securely holding to your machine.

Requirements:

Path Pilot 2.5.1 or higher.
1 Available USB Port on your Path Pilot Controller

# Pièce: HTC01-WG2-WIC

$379,00

Rupture de stock - en rupture de stock et sera expédié une fois en stock.

Quantité:

Aperçu

Machine Compatibility:

Full plug and play compatibility for machines that Tormach does not offer an Operators Console, is it at Tormach's discretion. Please email [email protected] if you have any questions.

All M Series Mills**
All 770 Series Mills
PCNC 440 Mill
All Series 3 Mills (PCNC 1100 serial number 2000 or higher)
Series 2 Mills that have the Series 3 Motion Control Upgrade installed*
15L Slant Pro and 8L Lathes
24R
1300PL Plasma Table

*future testing planned to confirm if Series 2 Mills without the Series 3 Motion Control Upgrade are compatible.

** The Hand Held Console is not compatible with machines that have a Tormach Operators Console attached.

Features:

Feed Override (0% - 200%)
Spindle Speed Override (0% - 200%)
Rapid Override (0% - 100%)
Jog Axis Selection*
Jog Step Selection
Jog Wheel
Cycle Start Button
Feed Hold Button
Program Stop
Coolant On/Off*
