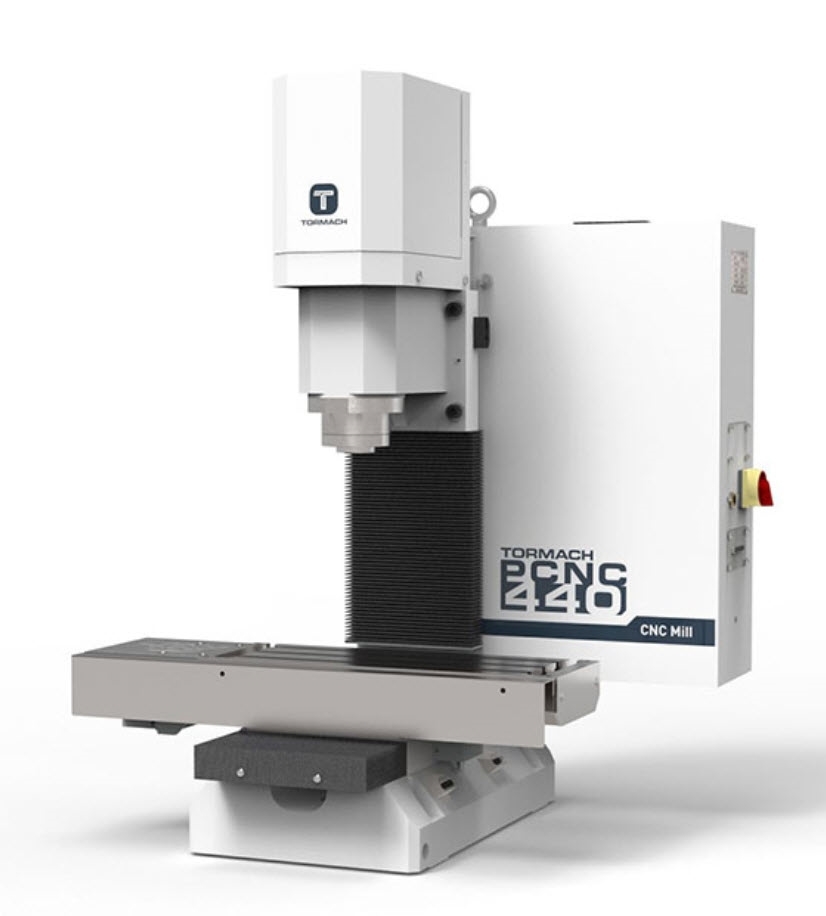

    Tormach PCNC 440 CNC Mill - Entry Package

    Tormach’s PCNC 440 Entry Package is the foundation that you will need to get started. This package includes mill, controller, and owners kit.



    Includes:



    PCNC 440 Mill

    Machine Owner's Kit for PCNC 440

    PathPilot Controller for 15L Lathe and PCNC Mills



    Note: This item will incur additional freight charges that will be quoted.



    # Pièce: 37236-EP
    Demander un devis

    Ideal for one-offs, short-run production, rapid prototyping, secondary operations, and educational institutions alike, our PCNC 440 mill enables you to:

    • Cut tough metals like titanium, stainless steel, and hardened tool steel as well as softer materials like aluminum, plastics, and wood with the 10,000 rpm, 0.75 hp (560 W) spindle
    • Expand your capabilities as you grow with plug-and-play accessories, such as a power drawbar and automatic tool changer
    • Easily set up and run jobs with PathPilot (sold separately), our exclusive, user-friendly CNC control system that gives you:
      • Industry-standard G-code programming that works with all major CAM packages
      • Powerful conversational interface for walk-up, shop-floor programming
      • Intuitive, integrated probing and tool setting routines
      • Support for 4-axis continuous machining
      • Built-in Dropbox support for seamlessly transferring programs from your CAM workstation

    Some assembly required.

    Requirements

    NOTE: For detailed site requirements, refer to the PCNC 440 Operator Manual.

    • Controller: PathPilot (sold separately)
    • Installation:
      • 1000 lb (455 kg) capacity lifting apparatus, such as an engine hoist or gantry crane
      • Pallet jack
    • Power:
      • Primary Power: 115 Vac, 50/60 Hz, single-phase
      • Required Circuit Amperage: 15 A
    • Space:
      • Minimum Depth: 24 in. (0.6 m)
      • Minimum Height: 44 in. (1.1 m)
      • Minimum Width: 40 in. (1.0 m)

    Specifications

    Travels

    • X-Axis: 10 in. (254 mm)
    • Y-Axis: 6.25 in. (159 mm)
    • Z-Axis: 10 in. (254 mm)

    Spindle

    • Spindle Power: 0.75 hp (560 W)
    • Maximum Speed: 10,000 rpm
    • Transmission: Poly-V belt
    • Spindle Taper: R8
    • Thread Machining: Thread mill

    NOTE: This machine’s spindle is not bi-directional. Thread forming operations can be accomplished via thread milling.

    Feed Rate

    • X-Axis and Y-Axis: 135 in./min (3.43 m/min)
    • Z-Axis: 110 in./min (2.7 m/min)

    Dimensions

    • Table Size: 18 in. × 6.3 in. (457 mm x 160 mm)
    • Table Slots: 3/8 in. (9.5 mm); three slots
    • Spindle Nose to Table Max. Clearance: 11 in. (279 mm)
    • Spindle Centerline to Machine Column: 6.5 in. (165 mm)
    • Typical System Footprint: 42 in. × 36 in. (1.1 m x 0.9 m)
    • Overall System Height: 72 in. (1.8 m)
    • Typical System Weight: 600 lb (272 kg)

    NOTE: This machine’s spindle is not bi-directional. Thread forming operations can be accomplished via thread milling.

    What's In The Box?

    • PN 50568 Lyndex TTS Adapter Collet: R8
    Écrivez votre propre commentaire
    • Le produit peut être examinée que après l'achat
    • Seul les utilisateurs enregistrés peuvent écrire une critique
    *
    *
    • Mal
    • Excellent

    Ideal for one-offs, short-run production, rapid prototyping, secondary operations, and educational institutions alike, our PCNC 440 mill enables you to:

    • Cut tough metals like titanium, stainless steel, and hardened tool steel as well as softer materials like aluminum, plastics, and wood with the 10,000 rpm, 0.75 hp (560 W) spindle
    • Expand your capabilities as you grow with plug-and-play accessories, such as a power drawbar and automatic tool changer
    • Easily set up and run jobs with PathPilot (sold separately), our exclusive, user-friendly CNC control system that gives you:
      • Industry-standard G-code programming that works with all major CAM packages
      • Powerful conversational interface for walk-up, shop-floor programming
      • Intuitive, integrated probing and tool setting routines
      • Support for 4-axis continuous machining
      • Built-in Dropbox support for seamlessly transferring programs from your CAM workstation

    Some assembly required.

    Requirements

    NOTE: For detailed site requirements, refer to the PCNC 440 Operator Manual.

    • Controller: PathPilot (sold separately)
    • Installation:
      • 1000 lb (455 kg) capacity lifting apparatus, such as an engine hoist or gantry crane
      • Pallet jack
    • Power:
      • Primary Power: 115 Vac, 50/60 Hz, single-phase
      • Required Circuit Amperage: 15 A
    • Space:
      • Minimum Depth: 24 in. (0.6 m)
      • Minimum Height: 44 in. (1.1 m)
      • Minimum Width: 40 in. (1.0 m)

    Specifications

    Travels

    • X-Axis: 10 in. (254 mm)
    • Y-Axis: 6.25 in. (159 mm)
    • Z-Axis: 10 in. (254 mm)

    Spindle

    • Spindle Power: 0.75 hp (560 W)
    • Maximum Speed: 10,000 rpm
    • Transmission: Poly-V belt
    • Spindle Taper: R8
    • Thread Machining: Thread mill

    NOTE: This machine’s spindle is not bi-directional. Thread forming operations can be accomplished via thread milling.

    Feed Rate

    • X-Axis and Y-Axis: 135 in./min (3.43 m/min)
    • Z-Axis: 110 in./min (2.7 m/min)

    Dimensions

    • Table Size: 18 in. × 6.3 in. (457 mm x 160 mm)
    • Table Slots: 3/8 in. (9.5 mm); three slots
    • Spindle Nose to Table Max. Clearance: 11 in. (279 mm)
    • Spindle Centerline to Machine Column: 6.5 in. (165 mm)
    • Typical System Footprint: 42 in. × 36 in. (1.1 m x 0.9 m)
    • Overall System Height: 72 in. (1.8 m)
    • Typical System Weight: 600 lb (272 kg)

    NOTE: This machine’s spindle is not bi-directional. Thread forming operations can be accomplished via thread milling.

    What's In The Box?

    • PN 50568 Lyndex TTS Adapter Collet: R8
