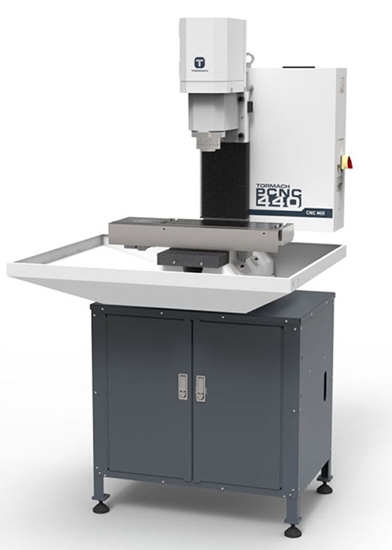

Tormach PCNC 440 CNC Mill - Starter Package

Soyez le premier a tester ce produit

The Starter Package for the PCNC 440 builds on the basics of the Entry Package by adding on a stand, chip pan, controller arm, monitor, keyboard, mouse, tooling, and vise.

Includes:

PCNC 440 Mill

Machine Owner's Kit for PCNC 440

PCNC 440 Stand

PCNC 440 Chip Pan

Machine Way Oil (1 Gallon)

PathPilot Controller for 15L Lathe and PCNC Mills

Standard LCD Monitor

Waterproof Mini-Keyboard

Jog Shuttle Controller

Waterproof Mouse

Controller Arm

4 in. CNC Vise

Manual Operator Set (Inch)

Cutting Tool Starter Set #1

Note: This item will incur additional freight charges that will be quoted.

# Pièce: 37236-SP

Demander un devis

Quantité:

Aperçu
Commentaires

Ideal for one-offs, short-run production, rapid prototyping, secondary operations, and educational institutions alike, our PCNC 440 mill enables you to:

Cut tough metals like titanium, stainless steel, and hardened tool steel as well as softer materials like aluminum, plastics, and wood with the 10,000 rpm, 0.75 hp (560 W) spindle
Expand your capabilities as you grow with plug-and-play accessories, such as a power drawbar and automatic tool changer
Easily set up and run jobs with PathPilot (sold separately), our exclusive, user-friendly CNC control system that gives you:
- Industry-standard G-code programming that works with all major CAM packages
- Powerful conversational interface for walk-up, shop-floor programming
- Intuitive, integrated probing and tool setting routines
- Support for 4-axis continuous machining
- Built-in Dropbox support for seamlessly transferring programs from your CAM workstation

Some assembly required.

Requirements

NOTE: For detailed site requirements, refer to the PCNC 440 Operator Manual.

Controller: PathPilot (sold separately)
Installation:
- 1000 lb (455 kg) capacity lifting apparatus, such as an engine hoist or gantry crane
- Pallet jack
Power:
- Primary Power: 115 Vac, 50/60 Hz, single-phase
- Required Circuit Amperage: 15 A
Space:
- Minimum Depth: 24 in. (0.6 m)
- Minimum Height: 44 in. (1.1 m)
- Minimum Width: 40 in. (1.0 m)

Specifications

Travels	X-Axis: 10 in. (254 mm) Y-Axis: 6.25 in. (159 mm) Z-Axis: 10 in. (254 mm)
Spindle	Spindle Power: 0.75 hp (560 W) Maximum Speed: 10,000 rpm Transmission: Poly-V belt Spindle Taper: R8 Thread Machining: Thread mill NOTE: This machine’s spindle is not bi-directional. Thread forming operations can be accomplished via thread milling.
Feed Rate	X-Axis and Y-Axis: 135 in./min (3.43 m/min) Z-Axis: 110 in./min (2.7 m/min)
Dimensions	Table Size: 18 in. × 6.3 in. (457 mm x 160 mm) Table Slots: 3/8 in. (9.5 mm); three slots Spindle Nose to Table Max. Clearance: 11 in. (279 mm) Spindle Centerline to Machine Column: 6.5 in. (165 mm) Typical System Footprint: 42 in. × 36 in. (1.1 m x 0.9 m) Overall System Height: 72 in. (1.8 m) Typical System Weight: 600 lb (272 kg)

NOTE: This machine’s spindle is not bi-directional. Thread forming operations can be accomplished via thread milling.

What's In The Box?

PN 50568 Lyndex TTS Adapter Collet: R8
