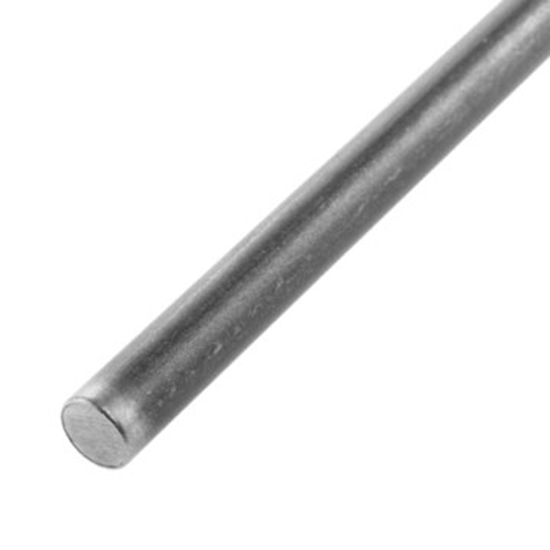

    0.25 in. Dia. 15 in. Long Rod

    This Rod is used in the 2024 Everybot Intake to guide the NOTE properly into the intake.



    Specifications



    • Diameter: 0.25 in.
    • Length: 15 in.
    • Material: Steel
    MFR Part #: am-5207
    $8.00
    2 in stock
    Write your own review
    • Product can be reviewed only after purchasing it
    • Only registered users can write reviews
    *
    *
