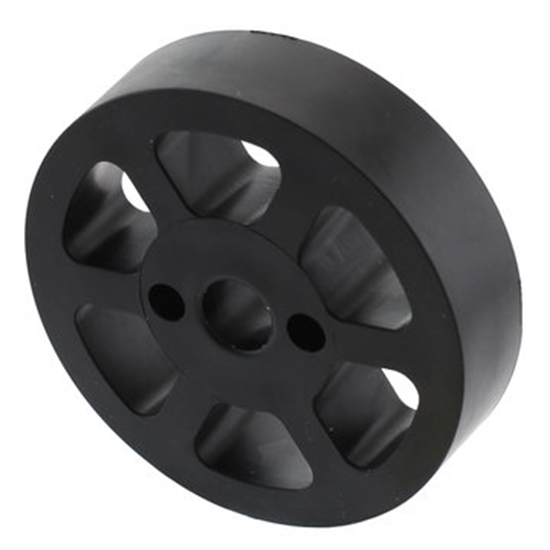

    2" Compliant Wheel, Nub Bore, 60 Durometer Black

    Compliant wheels are not intended for moving robots, but moving objects. Compliant wheels give way to allow rigid objects to be manipulated easily. A line of multiple wheels on a driven hex shaft creates a very effective roller that ignores variations in the objects being driven. This makes for high-performance intakes and internal conveyors. The wheels are sized for an interference fit and tend to stay in place on a shaft, though a shaft collar may be used to make absolutely sure the wheels stay clear of other mechanisms or maintain consistent spacing.



    The hex bore versions of this wheel are undersized, and are intended to be an interference fit on their respective hex shafts. This interference fit allows for effective torque transfer from the hex shaft to the wheel, as well as allowing the wheel to remain in place along the shaft without the need for spacers or collar clamps:



    Compliant Wheel Sizing



    Different durometer ratings give each wheel unique characteristics. Green wheels (35A durometer) are the softest and most compliant around objects, while orange (40A), maroon (45A), and blue (50A) wheels are increasingly firm. The increased firmness also allows the latter wheels to carry a higher RPM rating. Check out the downloads tab for a chart showing wheels and their maximum RPM.





    Specifications



    • Bore: 1/2 in. Hex, 3/8 in. Hex, Nub Bore
    • Diameter: 2 in.
    • Durometer: 35A (Green), ⠀40A (Orange), ⠀45A (Maroon), ⠀50A (Blue), 60A (Black)
    • Hole Pattern: Qty 2 3.5 mm Holes on a 16 mm Circle for 8 mm bore wheels
    • Material: TPU
    • Maximum RPM: 6000 - 9000
    • Weight: 0.035 lb.
    • Width: 0.5 in.



    Documents

    Layout Print(s)

    am-3571 2IN 375 Hex Compliant Wheel REV3.PDF

    am-3462 2IN 500Hex Compliant Wheel REV3.PDF

    am-3572 2IN 8mm Compliant Wheel REV4.PDF

    CAD File(s)

    am-3571 2IN 375Hex Compliant Wheel REV2.STEP

    am-3572 2IN 8mm Compliant Wheel REV2.STEP

    am-3462 2IN Molded 500Hex Compliant Wheel REV2.STEP

    Additional File(s)

    2 inch Compliant Wheel Expansion.pdf



    MFR Part #: am-3572_black
    $8.00
