    8 in. HD Pneumatic Wheel Hub Assembly 0.5 in. Hex Bore

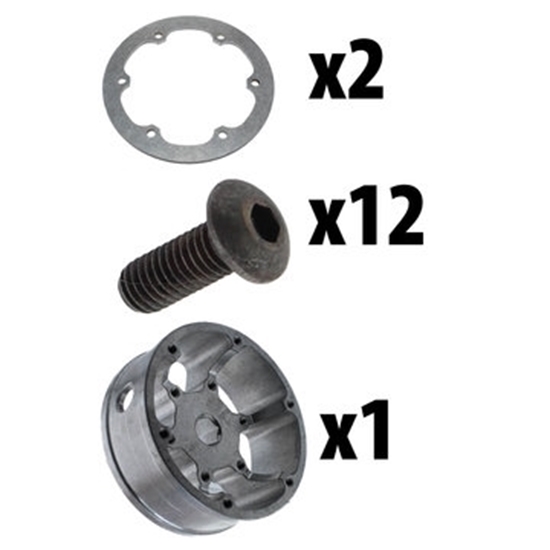

    This pneumatic wheel hub offers a significant strength improvement over our popular plastic-hubbed 8in. Pneumatic WheelThis variant of this strong hub features a 1/2 hex bore, which is a perfect choice for building a WCD style drivetrain, or any live 1/2 hex axle style drive configuration. This product ships without a tube or tire, allowing you to choose your own adventure with any 200x50mm pneumatic tire, such as our 8in tire. The hub of the wheel is comprised of a machined aluminum core, with two flat machined plates bolted to it to retain the tube and tire. This product is great for both FRC drivetrain applications, or non-FIRST outdoor applications as well.


    This product ships as an unassembled kit.



    CAD File(s)

    am-3934 8IN HD Pneumatic Wheel Hub Assembly 500IN Hex Bore.STEP

    Layout Print(s)

    am-3934 8IN HD Pneumatic 500IN Hex Bore Wheel Hub Assembly.PDF

    MFR Part #: am-3934
