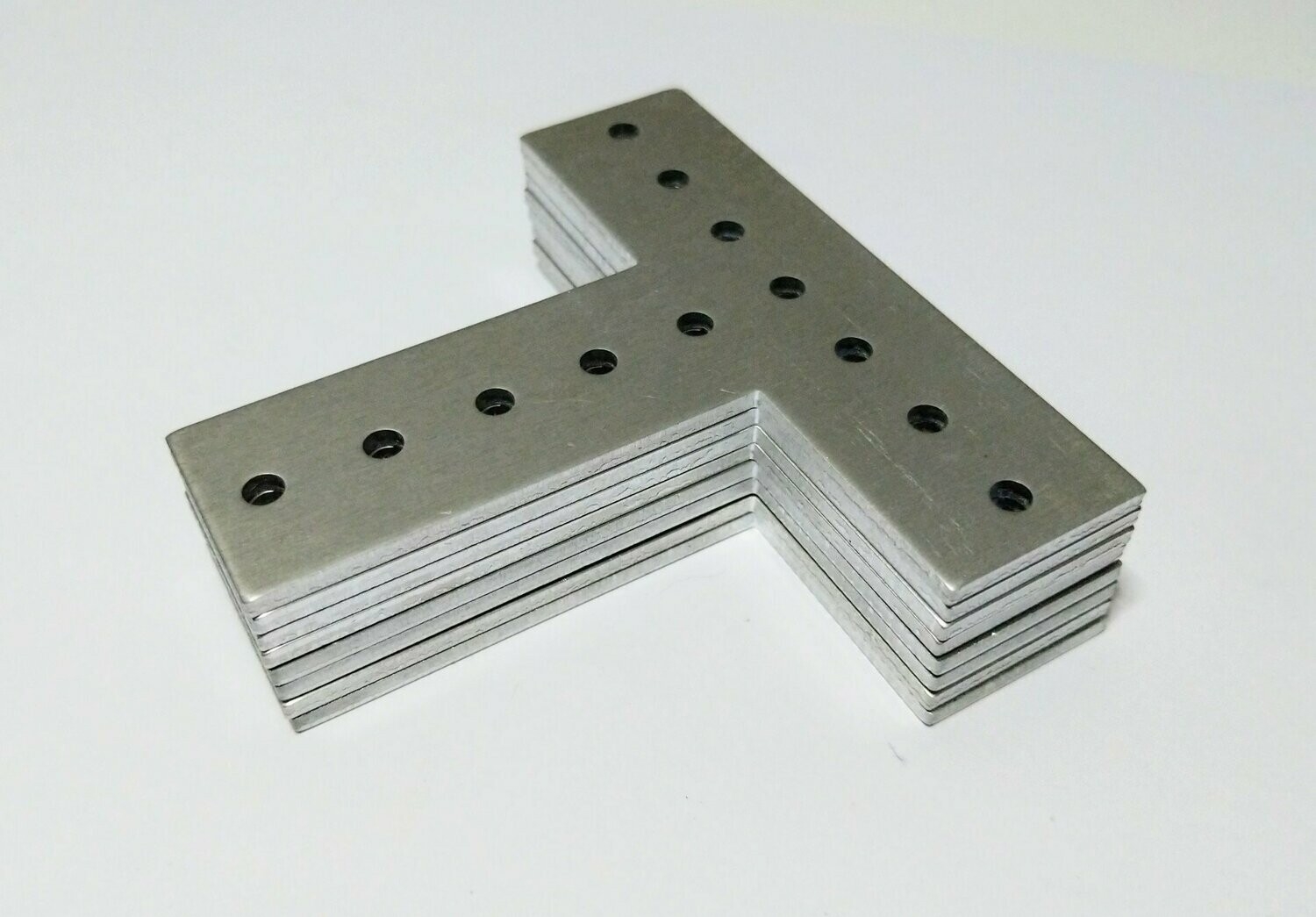

    Aluminum T Gussets - QTY 8

    This 8 pack of 2.5mm thick T gussets can be used to assemble frames or other mechanisms commonly used in competitive robotics.



    • 3.50 in. x 3.25 in. with 1 inch wide ends
    • .163" holes spaced 1/2 an inch apart, perfect for 5/32 rivets
    • 2.5mm (0.098 in.) thick, made from 6061-T6 aluminum
    • .055 lbs per L gusset
    • Sold in 8 packs



    CAD model available

    # Pièce: TTB-0012
    $27,77
    Disponibilité: 30 en stock
    Écrivez votre propre commentaire
    • Le produit peut être examinée que après l'achat
    • Seul les utilisateurs enregistrés peuvent écrire une critique
    *
    *
    • Mal
    • Excellent
    Les clients ayant acheté cet article ont également acheté

    10-32 Nylock Jam Nut

    #am-1063
    $0,11
    ( 325 En stock)

    Must be ordered in mulitples of 25



    1/4-20 Nylock Nut

    #am-1015
    $0,11
    ( 500 En stock)

    Specifications:

    • Material: Steel
    • Coating: Zinc plated
    • Thread: 1/4-20
    • Width across hex: 7/16"

    Aluminum L Gussets - QTY 8

    #TTB-0007
    $27,77
    ( 20 En stock)

    This 8 pack of 2.5mm thick L gussets can be used to assemble frames or other mechanisms commonly used in competitive robotics.

    • 2.75 in. x 2.75 in. with 1 inch wide ends
    • .163" holes spaced 1/2 an inch apart, perfect for 5/32 rivets
    • 2.5mm (0.098 in.) thick, made from 6061-T6 aluminum
    • .04 lbs per L gusset
    • Sold in 8 packs



    CAD model available

    11 Tooth HTD Motor Output Pulley - Falcon Motor Bore

    #TTB-0062
    $16,66
    ( 18 En stock)

    These aluminum 5M HTD Pulleys work great for creating belt reductions directly off the motor. Use a 15mm wide belt or two 9mm wide belts as the inside pulley teeth are 18.5mm wide. Choose either 8mm keyed bore or spline bore depending on the motor type you're using.

    2" Stealth Wheel, 1/2" Hex Bore, 35A, Green, Durometer (am-3155_green)

    #am-3155_green
    $9,00 $9,32
    ( 72 En stock)

    The inside black portion of this wheel is made from molded polycarbonate plastic. The outer tread is TPU (Thermoplastic PolyUrethane). This robust but lightweight wheel provides good traction on carpet and soft tiles. Stealth wheels are the perfect drive wheel for smaller (<50 lb.) robots, or for intakes and other auxiliary robot mechanisms. These wheels are available in a variety of bores and durometers. 4 in. Stealth Wheels feature a 6 bolt pattern on a 1.875 in. bolt circle for mounting sprockets, hubs, and gears. Nub Bore Stealth Wheels feature a 4 bolt pattern on a 16 mm bolt circle found in most FIRST Tech Challenge building systems. The lower the durometer the softer the wheel is, this makes it wear away faster, but also makes it more grippy.

    Product Usage:
    Many thread locking materials are not compatible with polycarbonate and can eat away at the plastic. Be sure to check which adhesives are okay to use with this product.

    Specifications

    • Bore: 1/2 in. Hex, 3/8 in. Hex, Nub Bore, 5 mm Hex
    • Diameter: 2 in., 4 in.
    • Durometer: 35A (Green), ⠀40A (Orange), ⠀50A (Blue), ⠀60A (Black), ⠀80A (Gray)
    • Hole Pattern: Qty 4 3.5 mm Holes on a 16 mm Circle for 8 mm bore wheels
    • Material: TPU, Polycarbonate
    • Weight: 0.23lb, 0.1lb
    • Width: 1 in.

    Documents

    Layout Print(s)

    am-3664 2in 5mm Hex Stealth Wheel REV4.PDF

    am-3156 2IN 8mm Stealth Wheel REV3.PDF

    am-3436 2in 375Hex Stealth Wheel REV3.PDF

    am-3155 2in 500Hex Stealth Wheel REV3.PDF

    am-3665 4in 5mm Hex Stealth Wheel REV3.PDF

    am-2648 4IN 8mm Stealth Wheel REV5.PDF

    am-3435 4in 375Hex Stealth Wheel REV3.PDF

    am-2647 4in 500Hex Stealth Wheel REV3.PDF

    CAD File(s)

    am-3664 2in 5mm Hex Bore Stealth Wheel REV3.STEP

    am-3156 2IN 8mm Stealth Wheel.STEP

    am-3436 2IN 375Hex Stealth Wheel REV2.STEP

    am-3155 2IN 500Hex Stealth Wheel REV2.STEP

    am-3665 4IN 5mm Hex Stealth Wheel REV2.STEP

    am-2647 4inWheel 500 Hex REV2.STEP

    am-3435 4in Wheel Integrated Hub 375 HEX with Tread REV2.STEP

    am-2648 4inWheel 8mm Hub REV2.STEP

    Aluminum 1/2 Inch Hex Bore Split Clamping Collar - QTY 5

    #TTB-0002
    $27,78
    ( 22 En stock)

    Tired of hex clamp collars that cost an arm and a leg? Tired of stripping out the set screw on your clamp collar? Need to add a collar in an assembly and don't want to remove everything from your hex shaft?

    Me too! I've ran into all of the above scenarios multiple times building multiple robots. These collars are the holy grail -

    • split so they can easily be added or removed
    • lightweight 6061 aluminum
    • .5 oz (.031 lbs) for one hex collar
    • uses two 8-32 socket head cap screws that require a 9/64" allen wrench
    • $4.00 per collar, sold in 5 packs
    • anodized black for awesomeness



    General Dimensions:
