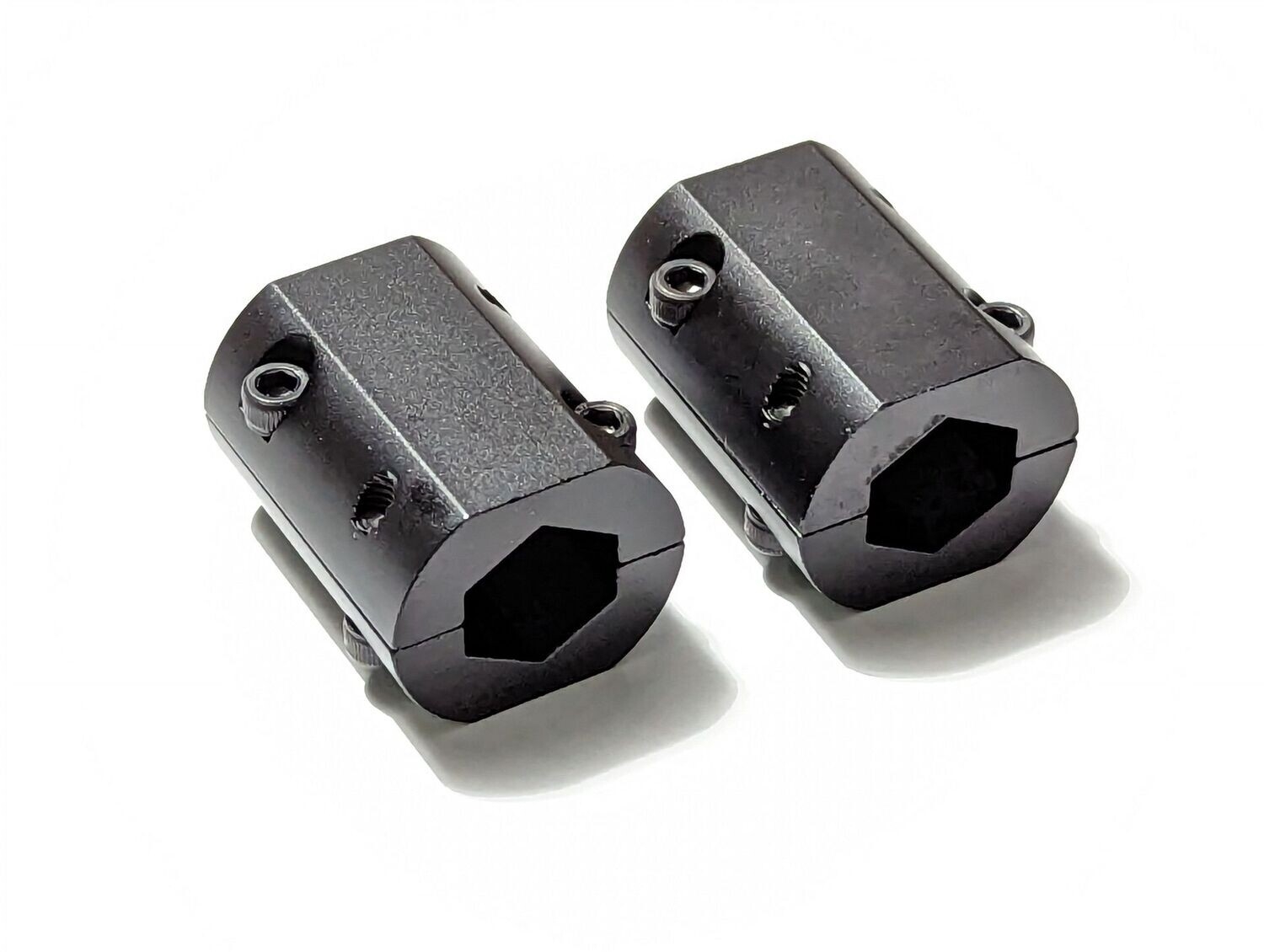

This product includes two 1.25 inch long half inch hex couplers. This product has been verified to clamp all the various standards of 1/2" hex, rounded hex and AM churro with significant clamping force.
These custom designed collar clamps have been designed specifically with FIRST Robotics Competition teams in mind. The one-piece collar clamp is a nice fractional 1/2 in. width to make shaft stackups easy. The clamping force is provided by a 10-32 socket head screw, which is bigger than most used in the competition marketplace. This provides a high-strength clamping solution that shouldn't strip out when you need it most. You can even replace the 10-32 screw if it becomes lost with the screws historically used in the AM14U family of chassis. These thoughtfully designed collar clamps also have small bosses on each side. This allows these collar clamps to be installed directly adjacent to an FR8ZZ Round or FR8ZZ Hex bearing without rubbing on the outer races for smooth operation.
This is a 1/2 in. hex bore bearing that is shielded. This Ball Bearing is a great way to make things spin fast!
Specifications:
This item can only be purchased in multiples of 25
Tired of hex clamp collars that cost an arm and a leg? Tired of stripping out the set screw on your clamp collar? Need to add a collar in an assembly and don't want to remove everything from your hex shaft?
Me too! I've ran into all of the above scenarios multiple times building multiple robots. These collars are the holy grail -
General Dimensions:
Nylon washer with a 1/2 in. inside diameter.
This item can only be purchased in multiples of 10
This retainer clip is used to hold objects (such as gears) in place on shafts. Example: This product can be used to hold a gear onto a CIM motor shaft. Specification:
Affordable and durable 2 inch squish wheels are now available. These wheels are commonly used by competitive robotics teams to move game pieces throughout their robot.
These wheels ship in packs of 10 for $3 per wheel and feature:
Note: Molded plastic cases have begun shipping with all encoder orders!
The Thrifty Absolute Magnetic Encoder was designed to provide teams a lower cost option for absolute position sensing. Simply plug the included 3-wire PWM style cable into your controller of choice and read the included magnet's absolute position. This device can connect directly to the RoboRIO as well as the REV Spark Max or CTRE Talon SRX.
Encoder Revision Updates Include -
Half inch hex hubs are often used to transfer motion between components in competition robots. This hub includes a thicker quarter inch flange that allows for tapping 10-24 / 10-32 holes or drilling and tapping to 1/4-20 sized holes. The Thrifty Hub is offered as a blank hex hub to teams to do further machining or leave stock as-is.
