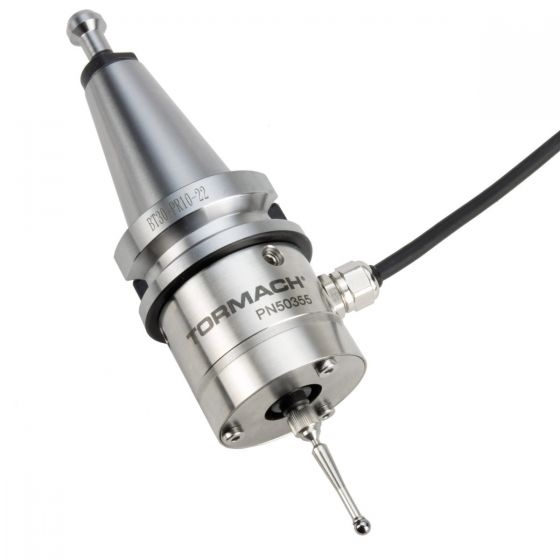

    Passive Probe Kit (BT30)

    Soyez le premier a tester ce produit

    Quickly and automatically set work offsets using PathPilot’s integrated probing routines. Compatible with the Renishaw M4 stylus family, this economical kit features:

    • 3D touch trigger probe
    • Indicator light when triggered
    • Plug-and-play integration with Tormach mills

    Compatibility

    • 1100MX
    • 770MX

    Requirements

    • PathPilot controller

    Specifications



    Measuring Direction ±X, ±Y, & +Z
    Repeatability 0.00059 in. (0.015 mm)
    Maximum Over-Travel In +Z + .1968 in. (5.0 mm)
    Maximum Angular Displacement ± 15°
    Radial (X-Y) Trigger Force 30-60 g
    Axial Trigger Force 500 ± 30 g
    Water Resistance IP66



    What's In the Box?



    In addition to the probe, the kit includes:

    • BT30 Tool Holder, Probe, 10mm
    • Stainless steel tip
    • Installation wrenches:
      • 2 mm hex
      • 2 mm pin
      • 2.5 mm hex
    # Pièce: 39295
