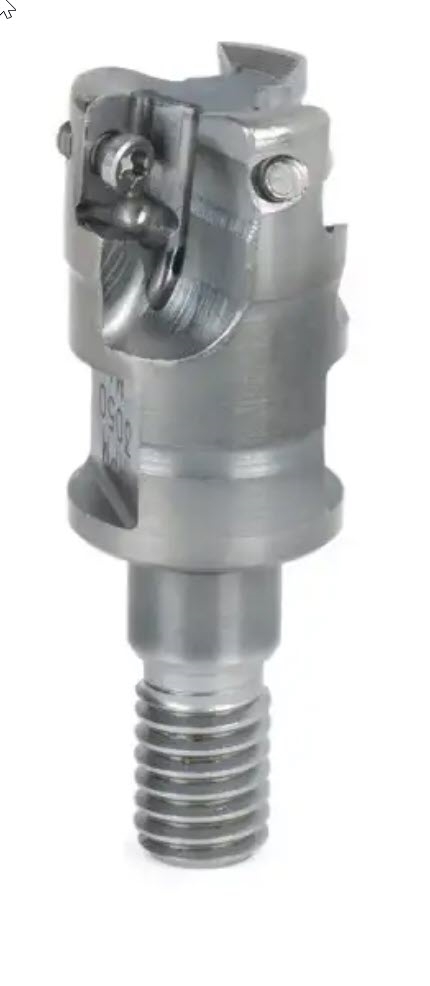

The QM mini is a multi-purpose cutter that can high feed, square up and finish. A variety of inserts all fit into the same body allowing you to machine a vast majority of materials, while being economical.

Cutting Diameter: 1/2 in.
Compatible Inserts:

INSERT CODE	DESCRIPTION	Corner Radius	PN
EOMT060210ZER	High Feed Milling - General Purpose <50Rc	1.0	38161-10
EOMW060210ZER	High Feed Milling- Unfavorable Conditions <50Rc	1.0	37992-10
EOHW060210ZTR	High Hardened Steel Milling >50Rc	1.0	37996-10
EOHW060220ZTR	High Hardened Steel Milling >50Rc	2.0	37997-10
ZOMT060202ZER	Shoulder Milling	0.2	37993-10
ZOMT060204ZER	Shoulder Milling	0.4	37994-10
ZOMT060208ZER	Shoulder Milling	0.8	37995-10

No. of Inserts: 3
Thread: M6 x 1
Insert Wrench: 35626
Insert Screw: 38162

Includes: Insert Screw (x3) and Insert Wrench. Inserts Sold Separately.
