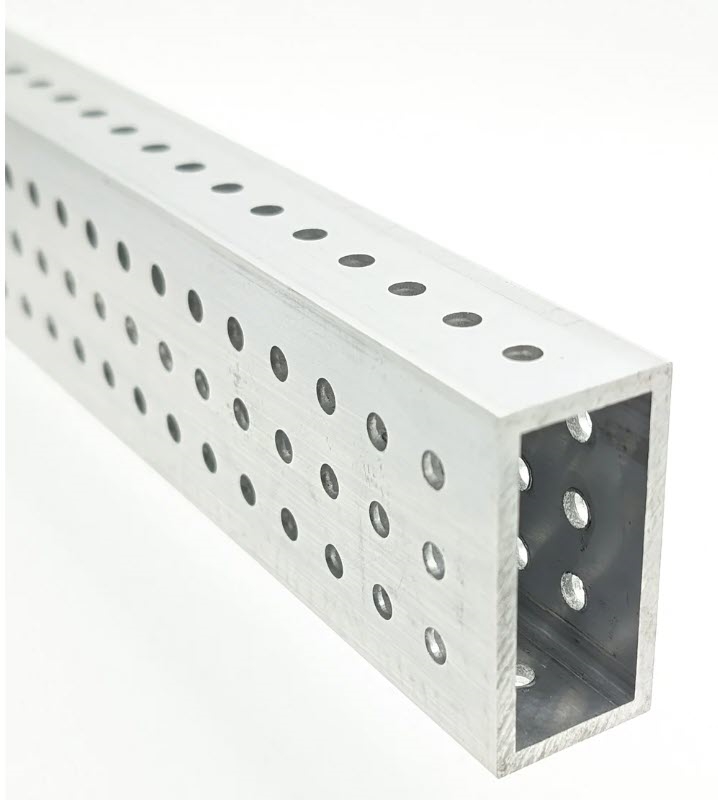

    Thrifty 2" x 1" Grid Pattern Aluminum Extrusion

    Expand your robot's capabilities and build easier with the Thrifty Grid Pattern Aluminum Extrusion.



    Tubes are 47" long. Holes are 5mm (.197) in diameter with 1/2" grid spacing. Material is 6061 T-6 aluminum.



    Style: .125" Wall Thickness

    # Pièce: TTB-0094
    $52,19
    Disponibilité: 12 en stock
    Écrivez votre propre commentaire
    • Le produit peut être examinée que après l'achat
    • Seul les utilisateurs enregistrés peuvent écrire une critique
    *
    *
    • Mal
    • Excellent
