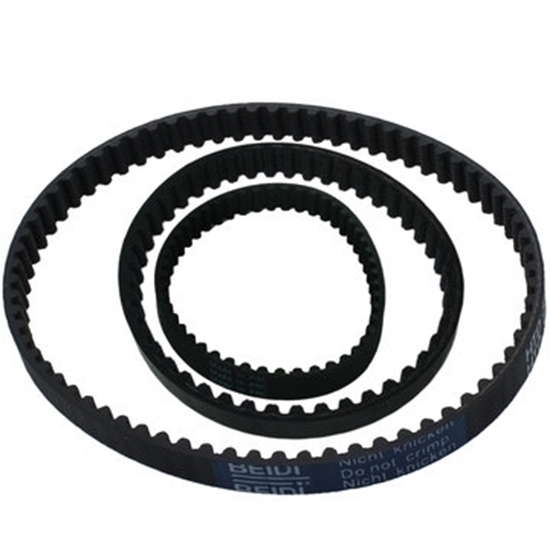

    AndyMark 100 Tooth 9 mm Wide 5 mm Pitch HTD Timing Belt

    These are all of our 9 mm wide 5 mm pitch HTD synchronous timing belt offerings. All of these belts are a composite of flexible rubber with a fiberglass tensile member throughout. Synchronous timing belts, also known as a toothed belt or synchronous belt, are designed to eliminate slippage and keep any number of objects rotating at a constant rate. We offer genuine Gates brand belts, AndyMark branded belts, as well as lower-cost generic brand belts.



    Current Belt Offerings



    Parts are organized by the following scheme: (Tooth Count - Trade Number - AndyMark part number)



    AndyMark Brand Belts

    • 30T - 150-HTD-5M-9 - am-5209_30T
    • 35T - 175-HTD-5M-9 - am-5209_35T
    • 40T - 200-HTD-5M-9 - am-5209_40T
    • 45T - 225-HTD-5M-9 - am-5209_45T
    • 50T - 250-HTD-5M-9 - am-5209_50T
    • 55T - 275-HTD-5M-9 - am-5209_55T
    • 60T - 300-HTD-5M-9 - am-5209_60T
    • 64T - 320-HTD-5M-9 - am-5209_64T
    • 65T - 325-HTD-5M-9 - am-5209_65T
    • 70T - 350-HTD-5M-9 - am-5209_70T
    • 75T - 375-HTD-5M-9 - am-5209_75T
    • 80T - 400-HTD-5M-9 - am-5209_80T
    • 85T - 425-HTD-5M-9 - am-5209_85T
    • 90T - 450-HTD-5M-9 - am-5209_90T
    • 91T - 455-HTD-5M-9 - am-5209_91T
    • 93T - 465-HTD-5M-9 - am-5209_93T
    • 95T - 475-HTD-5M-9 - am-5209_95T
    • 100T - 500-HTD-5M-9 - am-5209_100T
    • 105T - 525-HTD-5M-9 - am-5209_105T
    • 106T - 530-HTD-5M-9 - am-5209_106T
    • 110T - 550-HTD-5M-9 - am-5209_110T
    • 115T - 575-HTD-5M-9 - am-5209_115T
    • 120T - 600-HTD-5M-9 - am-5209_120T
    • 121T - 605-HTD-5M-9 - am-5209_121T
    • 125T - 625-HTD-5M-9 - am-5209_125T
    • 130T - 650-HTD-5M-9 - am-5209_130T
    • 135T - 675-HTD-5M-9 - am-5209_135T
    • 136T - 680-HTD-5M-9 - am-5209_136T
    • 140T - 700-HTD-5M-9 - am-5209_140T
    • 145T - 725-HTD-5M-9 - am-5209_145T
    • 150T - 750-HTD-5M-9 - am-5209_150T
    • 152T - 760-HTD-5M-9 - am-5209_152T
    • 160T - 800-HTD-5M-9 - am-5209_160T
    • 167T - 835-HTD-5M-9 - am-5209_167T
    • 170T - 850-HTD-5M-9 - am-5209_170T
    • 180T - 900-HTD-5M-9 - am-5209_180T
    • 190T - 950-HTD-5M-9 - am-5209_190T
    • 200T - 1000-HTD-5M-9 - am-5209_200T
    • 225T - 1125-HTD-5M-9 - am-5209_225T
    • 250T - 1250-HTD-5M-9 - am-5209_250T
    MFR Part #: am-5209_100T
    $14.50
    5 in stock
    Write your own review
