4" Stealth Wheel, 1/2 Hex Bore, Orange,40A Durometer (am-2647_orange)

This item can only be purchased in multiples of 25

Specifications:

• Material: Steel
• Coating: Zinc Plated
• Thread: #10-32
• Thickness: 0.249"
• Thread: Fine
• Thread Size: 32
• Type: Nylon Insert Lock Nut
• Wrench Size: 3/8"

This is a quick and reliable compact connector for flexible conductors. Splicing has never been easier. Lift the orange lever, and insert the conductor, close the lever. The lever clicks as it is lowered, actuating the CAGE CLAMP®, for superior connectivity. This tool-free connection and disconnection makes the connection simple to create and alter in the future.

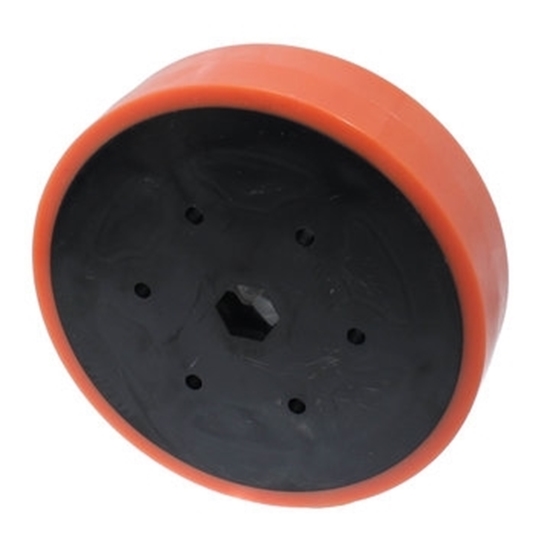

The inside black portion of this wheel is made from molded polycarbonate plastic. The outer tread is TPU (Thermoplastic PolyUrethane). This robust but lightweight wheel provides good traction on carpet and soft tiles. Stealth wheels are the perfect drive wheel for smaller (<50 lb.) robots, or for intakes and other auxiliary robot mechanisms. These wheels are available in a variety of bores and durometers. 4 in. Stealth Wheels feature a 6 bolt pattern on a 1.875 in. bolt circle for mounting sprockets, hubs, and gears. Nub Bore Stealth Wheels feature a 4 bolt pattern on a 16 mm bolt circle found in most FIRST Tech Challenge building systems. The lower the durometer the softer the wheel is, this makes it wear away faster, but also makes it more grippy.

Product Usage:
Many thread locking materials are not compatible with polycarbonate and can eat away at the plastic. Be sure to check which adhesives are okay to use with this product.

Specifications

• Bore: 1/2 in. Hex, 3/8 in. Hex, Nub Bore, 5 mm Hex
• Diameter: 2 in., 4 in.
• Durometer: 35A (Green), ⠀40A (Orange), ⠀50A (Blue), ⠀60A (Black), ⠀80A (Gray)
• Hole Pattern: Qty 4 3.5 mm Holes on a 16 mm Circle for 8 mm bore wheels
• Material: TPU, Polycarbonate
• Weight: 0.23lb, 0.1lb
• Width: 1 in.

Documents

Layout Print(s)

am-3664 2in 5mm Hex Stealth Wheel REV4.PDF

am-3156 2IN 8mm Stealth Wheel REV3.PDF

am-3436 2in 375Hex Stealth Wheel REV3.PDF

am-3155 2in 500Hex Stealth Wheel REV3.PDF

am-3665 4in 5mm Hex Stealth Wheel REV3.PDF

am-2648 4IN 8mm Stealth Wheel REV5.PDF

am-3435 4in 375Hex Stealth Wheel REV3.PDF

am-2647 4in 500Hex Stealth Wheel REV3.PDF

CAD File(s)

am-3664 2in 5mm Hex Bore Stealth Wheel REV3.STEP

am-3156 2IN 8mm Stealth Wheel.STEP

am-3436 2IN 375Hex Stealth Wheel REV2.STEP

am-3155 2IN 500Hex Stealth Wheel REV2.STEP

am-3665 4IN 5mm Hex Stealth Wheel REV2.STEP

am-2647 4inWheel 500 Hex REV2.STEP

am-3435 4in Wheel Integrated Hub 375 HEX with Tread REV2.STEP

am-2648 4inWheel 8mm Hub REV2.STEP

Compliant wheels are not intended for moving robots, but moving objects. Compliant wheels give way to allow rigid objects to be manipulated easily. A line of multiple wheels on a driven hex shaft creates a very effective roller that ignores variations in the objects being driven. This makes for high-performance intakes and internal conveyors. The wheels are sized for an interference fit and tend to stay in place on a shaft, though a shaft collar may be used to make absolutely sure the wheels stay clear of other mechanisms or maintain consistent spacing.

The hex bore versions of this wheel are undersized, and are intended to be an interference fit on their respective hex shafts. This interference fit allows for effective torque transfer from the hex shaft to the wheel, as well as allowing the wheel to remain in place along the shaft without the need for spacers or collar clamps:

Different durometer ratings give each wheel unique characteristics. Green wheels (35A durometer) are the softest and most compliant around objects, while orange (40A), maroon (45A), and blue (50A) wheels are increasingly firm. The increased firmness also allows the latter wheels to carry a higher RPM rating. Check out the downloads tab for a chart showing wheels and their maximum RPM.

Specifications

• Bore: 1/2 in. Hex, 3/8 in. Hex, Nub Bore
• Diameter: 2 in.
• Durometer: 35A (Green), ⠀40A (Orange), ⠀45A (Maroon), ⠀50A (Blue), 60A (Black)
• Hole Pattern: Qty 2 3.5 mm Holes on a 16 mm Circle for 8 mm bore wheels
• Material: TPU
• Maximum RPM: 6000 - 9000
• Weight: 0.035 lb.
• Width: 0.5 in.

Documents

Layout Print(s)

am-3571 2IN 375 Hex Compliant Wheel REV3.PDF

am-3462 2IN 500Hex Compliant Wheel REV3.PDF

am-3572 2IN 8mm Compliant Wheel REV4.PDF

CAD File(s)

am-3571 2IN 375Hex Compliant Wheel REV2.STEP

am-3572 2IN 8mm Compliant Wheel REV2.STEP

am-3462 2IN Molded 500Hex Compliant Wheel REV2.STEP

Additional File(s)

2 inch Compliant Wheel Expansion.pdf

Don't see what you need?

These custom designed collar clamps have been designed specifically with FIRST Robotics Competition teams in mind. The one-piece collar clamp is a nice fractional 1/2 in. width to make shaft stackups easy. The clamping force is provided by a 10-32 socket head screw, which is bigger than most used in the competition marketplace.  This provides a high-strength clamping solution that shouldn't strip out when you need it most. You can even replace the 10-32 screw if it becomes lost with the screws historically used in the AM14U family of chassis. These thoughtfully designed collar clamps also have small bosses on each side. This allows these collar clamps to be installed directly adjacent to an FR8ZZ Round or FR8ZZ Hex bearing without rubbing on the outer races for smooth operation.

errules are crimped on the metal contact rather than through the insulation like standard connectors. This means there is more contact between the wire strands and the contact point. This Ferrule can be crimped using the am-3739 crimp tool.

This item can only be purchased in multiples of 25

Specifications:

• Material: Steel
• Coating: Zinc plated
• Thread: 10-32
• Length: 5/8 inch
• Head: Socket Head Cap Screw
• Yellow Nylon Thread Lock Patch

Specifications:

• Material: Steel
• Coating: Zinc Plated
• Thread: 10-32
• Length: 3/4"
• Head: Socket Head Cap Screw

Specifications

• Drive: 5/32 in. Hex
• Finish: Zinc
• Head: Socket Cap
• Length: 1.5 in.
• Material: Steel
• Thread: 10-32
• Weight: 0.02 lbs

This item can only be purchased in multiples of 10
