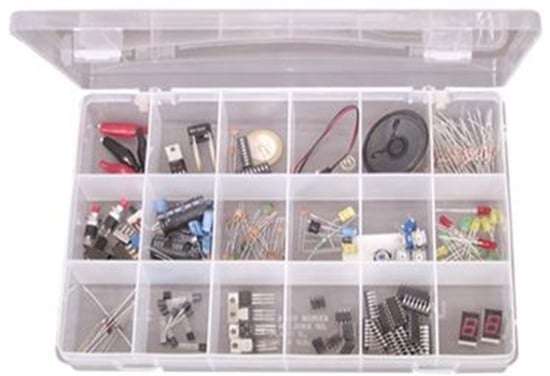

    Basic Parts Kit for NI myDAQ

    This Basic Parts Kit for the NI myDAQ provides you with 100's of parts to aid you in your prototype needs. Perform experiments first hand and develop a greater understanding of key concepts.
    MFR Part #: CK-1000.
    $122.94

    The Basic Parts Kit for the NI myDAQ includes:





    Resistors (1/4W, 5%, 5 each)



    • 10Ω, 100Ω, 470Ω, 1kΩ, 2.2kΩ, 4.7kΩ, 8.2kΩ, 10kΩ, 18kΩ, 27kΩ, 47kΩ, 82kΩ, 100kΩ, 220kΩ, 330kΩ, 470kΩ, 1MΩ



    Resistors (Trim Pot):

    • 500Ω, 1kΩ, 5kΩ, 50kΩ, 100kΩ, 500kΩ, 1MΩ



    Capacitators (10%, 50V Disc, 2 each):

    • 2.2pF, 5pF, 10pF, 15pF, 22pF, 47pF, 100pF, 220pF, 470pF, 680pF



    Capacitators (10% 100V Mylar, 2 each):

    • 0.001µF, 0.0047µF, 0.01µF, 0.047µF, 0.1µF, 0.33µF



    Capacitators (50V Lytic Radial, 2 each):

    • 1µF, 4.7µF, 10µF, 100µF, 470µF, 1000µF (35V)



    Semiconductors:

    • Bridge rectifier 1.5A
    • Diodes:
      • 1N34A, 1N4148, 1N4001, 1N4728, 1N4739, 1N4743, 1N4747
    • SCR: C106B1
    • Transistors:
      • 2N2222A, 2N2907, 2N3055, 2N3904, 2N3906, 2N5457
    • ICs:
      • LM386N-1, NE555, LM1741CP1, CD4013BE, 4017, LM7805CT, LM7812CV, 74LS00, 74LS02, 74LS08, 74LS10, 74LS74, 74LS86
    • Photo cell



    LEDs (4 each):

    • Red, Green, White, Yellow, 7-segment display



    Inductors:

    • Choke:
      • 10mH, 470µH, 1000µH/1mH, 4.7µH, 10µH, 47µH, 100µH, 33mH
    • 5V Relay



    Wire (22ga. solid, 5'):

    • Black, Red, Orange, Yellow, Green



    Miscellaneous:

    • Push button switch
    • SPDT slide switch
    • DPDT slide switch
    • 8-pole DIP switch
    • condencer microphone
    • 9V battery snap
    • 8Ω speaker
    • buzzer
    • black & red alligator clips
