    Brackets

    Brackets

    View as Grid List
    Sort by
    Display per page

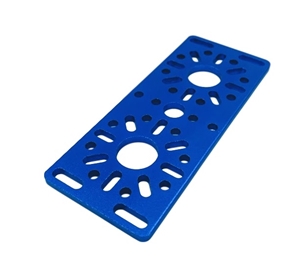

    144mm x 40mm Flat Bracket (2 pack)

    #76064-2
    $12.66 $12.49
    ( 567 In stock)

    The Studica Flat Bracket is a very strong  3mm x 40mm wide. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

    Specifications:

    • Material: 6061-T6 Aluminum
    • Thickness - 3mm
    • Width - 40mm
    • Length - 144mm
    • Hole Pattern - 3
    • Step File



    192mm x 40mm Flat Bracket (2 pack)

    #76063-2
    $14.92 $14.71
    ( 482 In stock)

    The Studica Flat Bracket is a very strong  3mm x 40mm wide. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

    Specifications:

    • Material: 6061-T6 Aluminum
    • Thickness - 3mm
    • Width - 40mm
    • Length - 192mm
    • Hole Pattern - 4
    • Step File



    192mm x 96mm Flat Bracket (2 pack)

    #76066-2
    $22.52 $22.21
    ( 1602 In stock)

    The Studica 192mm x 96mm Flat Bracket is a very strong  3mm. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

    Specifications:

    • Material - Anodized 6061-T6 Aluminum
    • Thickness - 3mm
    • Width - 96mm
    • Length - 192mm
    • Step File



    240mm x 40mm Flat Bracket

    #76062
    $8.86 $8.74
    ( 889 In stock)

    The Studica Flat Bracket is a very strong  3mm x 40mm wide. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

    Specifications:

    • Material: 6061-T6 Aluminum
    • Thickness - 3mm
    • Width - 40mm
    • Length - 240mm
    • Hole Pattern - 5
    • Step File



    288mm x 40mm Flat Bracket (2 pack)

    #76061-2
    $19.14 $18.88
    ( 1143 In stock)

    The Studica Flat Bracket is a very strong  3mm x 40mm wide. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

    Specifications:

    • Material: 6061-T6 Aluminum
    • Thickness - 3mm
    • Width - 40mm
    • Length - 288mm
    • Hole Pattern - 6
    • Step File



    336mm x 40mm Flat Bracket

    #76060
    $13.37 $13.18
    ( 589 In stock)

    The Studica Flat Bracket is a very strong  3mm x 40mm wide. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

    Specifications:

    • Material: 6061-T6 Aluminum
    • Thickness - 3mm
    • Width - 40mm
    • Length - 336mm
    • Hole Pattern - 7
    • Step File





    384mm x 40m Flat Bracket

    #76059
    $14.77 $14.57
    ( 512 In stock)

    The Studica Flat Bracket is a very strong  3mm x 40mm wide. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

    Specifications:

    • Material: 6061-T6 Aluminum
    • Thickness - 3mm
    • Width - 40mm
    • Length - 384mm
    • Hole Pattern - 8
    • Step File



    432mm x 40mm Flat Bracket

    #76058
    $16.18 $15.96
    ( 622 In stock)

    The Studica Low Profile U Channel is 3mm thick and has a 48mm x 14mm profile. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

    Specifications:

    • Material: 6061-T6 Aluminum
    • Thickness - 3mm
    • Height - 14mm
    • Width - 48mm
    • Length - 432mm
    • Hole pattern - 9
    • Step File



    96mm Adjustable Flat Bracket (2 pack)

    #76083-2
    $7.73 $7.63
    ( 173 In stock)

    The Studica Adjustable Angle Flat Bracket is perfect for connecting two channels pieces together at various angles. It is 3mm thick and as with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

    Specifications:

    • Material - Anodized 6061-T6 Aluminum
    • Thickness - 3mm
    • Width - 48mm
    • Length - 96mm
    • Step File

    96mm x 40mm Flat Bracket (2 pack)

    #76065-2
    $9.28 $9.15
    ( 936 In stock)

    The Studica Flat Bracket is a very strong  3mm x 40mm wide. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

    Specifications:

    • Material: 6061-T6 Aluminum
    • Thickness - 3mm
    • Width - 40mm
    • Length - 96mm
    • Step File

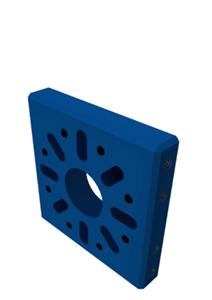

    End Piece Plate (2 pack)

    #76143-2
    $14.07 $13.88
    ( 3906 In stock)

    The Studica End Piece Plate is commonly fastened to the inside end of the U Channel. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

    Specifications:



    Motor Mount Clamp Kit

    #76141
    $15.48 $15.27
    ( 1005 In stock)

    Use the Motor Mount Clamp kit when fastening motors on body and attaching kit to channel and other structure.





    Motor Mount Plate

    #76140
    $9.14 $9.02
    ( 1214 In stock)

    The Motor Mount Plate is used with the Maverick 12V DC Gear Motor  (Part# 75001) to attach it inside the anyone of the U Channels 76010 to 76018. This is an example of a chassis with 4 motors mounted inside the U-Channel using a Motor Mounting Plate.











    Motor Mount Plate Leaf

    #76139
    $7.03 $6.93
    ( 827 In stock)

    Robot Base Plate

    #74001
    $54.92 $54.16
    ( 548 In stock)

    The Studica Robot Base Plate is 3mm thick and as with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

    Specifications:

    • Material - Anodized 6061-T6 Aluminum
    • Thickness - 3mm
    • Width - 288mm
    • Length - 336mm
    • Step File

    Servo Mount Flat Plate

    #76145
    $9.14 $9.02
    ( 2416 In stock)

    The Servo Mount Flat Plate is one option to mount the Multi-Mode Smart Servo (75002) to the Studica building structure.





    Servo Mount Offset Plate

    #76146
    $9.85 $9.71
    ( 448 In stock)

    The Servo Mount Offset Plate is one option to mount the Multi-Mode Smart Servo (75002) to the Studica building structure.





    1-1 Motor Kit, 5mm Hex Shaft

    #76289
    $11.25 $11.10
    ( 478 In stock)

    Sometimes you have the need for increased RPM. This 1:1 motor kit can be used with the Studica Maverick or any FTC legal motor such as the Neverest Classic (6600 RPM) or the REV HD Hex motor (6000RPM). The kit includes a faceplate which supports the Studica Robotics building platform. The shaft is press-fit onto the motor's shaft. It is recommended that the shaft be supported by a bearing (we recommend the 76302 for the Studica building system).

    Whether you are constructing an intake, designing a shooter, or creating some other high-speed design, this 1:1 option allow you to get the full motor RPM output.

    Specifications:

    • Material - Anodized 6061-T6 Aluminum
    • Step File

    6mm D-Shaft 1-1 Motor Kit

    #76290
    $11.25 $11.10
    ( 470 In stock)

    Sometimes you have the need for increased RPM. This 1:1 motor kit can be used with the Studica Maverick or any FTC legal motor such as the Neverest Classic (6600 RPM) or the REV HD Hex motor (6000RPM). The kit includes a faceplate which supports the Studica Robotics building platform. The shaft is press-fit onto the motor's shaft. It is recommended that the shaft be supported by a bearing (we recommend the 76302 for the Studica building system).

    Whether you are constructing an intake, designing a shooter, or creating some other high-speed design, this 1:1 option allow you to get the full motor RPM output.

    Specifications:

    • Material - Anodized 6061-T6 Aluminum
    • Step File

    Threaded Joiner Plate (6 pack)

    #76502-6
    $18.30 $18.04
    (In stock)

    The Studica Threaded Joiner Plate can be used to join two different structure components together, such as U Channel and brackets.



    Specifications:

    • Length: 24mm
    • Width: 22mm
    • Height: 3mm
    • Holes: 10 x M3 x 3mm Tap Through
    • Material: 6061-T6 Aluminum, Blue Anodized
    • Step File

    Threaded Pattern Plate (6 pack)

    #76503-6
    $18.30 $18.04
    (In stock)

    The Studica Threaded Pattern Plate can be used to join two different structure components together.



    Specifications:

    • OD: 28mm
    • ID: 14mm
    • Thickness: 3mm
    • Holes: 8 x M3 x 3mm Tap Through
    • Material: 6061-T6 Aluminum, Blue Anodized
    • Step File
