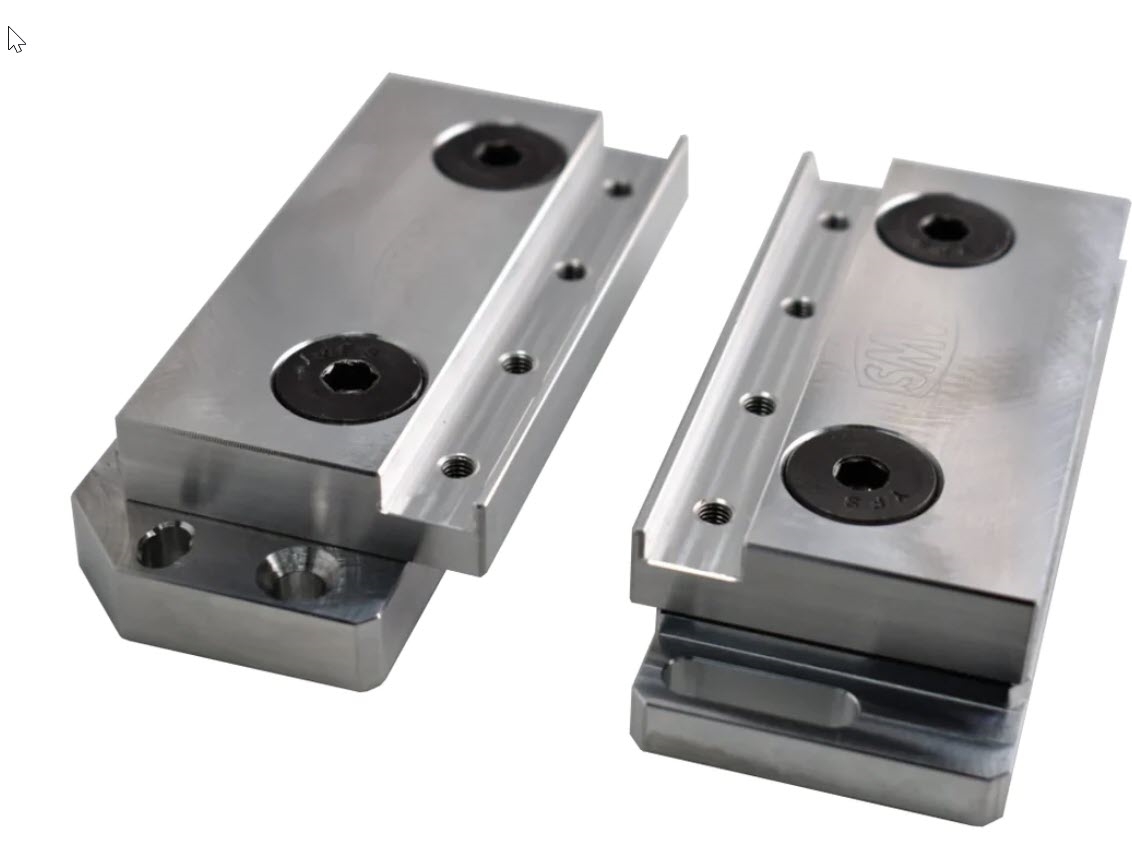

SMW FIXTURE PLATE ACCESSORY KITS (Hobby)

1/4" Mod Vise	1
1/4" Fixturing Pins	2
Soft Jaws	1 Pair
Talon Grips	4
Reversible Jaw Insert

MFR Part #: MVSH

$429.00

Qty:

Specifications
Reviews

SMW Modular Vise uses low profile clamping for a versatile workholding and fixturing system in combination with the Saunders Machine Works Taig Fixture Plate, Machinist Mini Pallet, or other 1/4" or M6 hole pattern fixture plates. Available in 1/4" or M6 sizes for our Inch and Metric hobby plates.

Product Details:

Aluminum body and jaws machined in-house by SMW.
The fixed position Mod Vise uses countersinks or dowel pins for quick alignment with the Fixture Plate's bolt pattern. Note: not all 1/4" and M6 fixture plates contain locating bores. The Mod Vise can still be used with these plates without dowel pins.
Video Tutorial on How to Use the Mod Vise.
Included mounting hardware intended for use with 1/4" & M6 fixture plates- Longer hardware is recommended for use with Mini Pallets due to their extended dowel pin bores.
Jaws can be used with standard vise parallels without our Reversible Insert Bars or Mitee-bite Talon Grips, however to use built in parallels one or the other must be used (sold separately).
