Motor Mount Plates

This lightweight aluminum adapter allows conversion of 0.375 inch hex shafts into 0.500 inch hex shafts or 0.500 inch hex holes into 0.375 inch hex holes. This component is not recommended for extremely high torque applications.

Specifications:

• Material: 6061 Aluminum
• OD: 0.499 in. Hex
• ID: 0.376 in. Hex
• Length: 0.50 in.
• Weight: 0.004 Pounds

Machine Key, steel. Used in 2.5" CIM Motor shafts.

Specifications:

• Width: 2mm (0.078 inch)
• Length: 10mm (0.394 inch)
• Weight: 0.0008 pounds

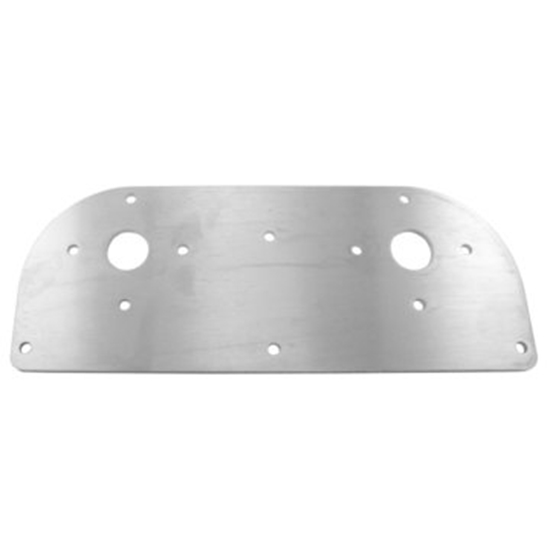

These plates are included in the 2024 KitBot. Made from 0.125 in. Aluminum, these Plates are used for various structures throughout the KitBot.

Quantity of each plate included in the 2024 KitBot:

• 2 - Top Corner Bracket (am-5294)
• 2 - Tube Mounting Plate (am-5296)
• 1 - Motor Mount Plate (am-5295)

Specifications

• Material: Aluminum
• Thickness: 0.125 in.

These plates are included in the 2024 KitBot. Made from 0.125 in. Aluminum, these Plates are used for various structures throughout the KitBot.

Quantity of each plate included in the 2024 KitBot:

• 2 - Top Corner Bracket (am-5294)
• 2 - Tube Mounting Plate (am-5296)
• 1 - Motor Mount Plate (am-5295)

Specifications

• Material: Aluminum
• Thickness: 0.125 in.

Documents

CAD File(s)

am-5294 KitBot 2024 Top Corner Bracket.STEP

am-5295 KitBot 2024 Motor Mount Plate.STEP

am-5296 KitBot 2024 Tube Mounting Plate.STEP
