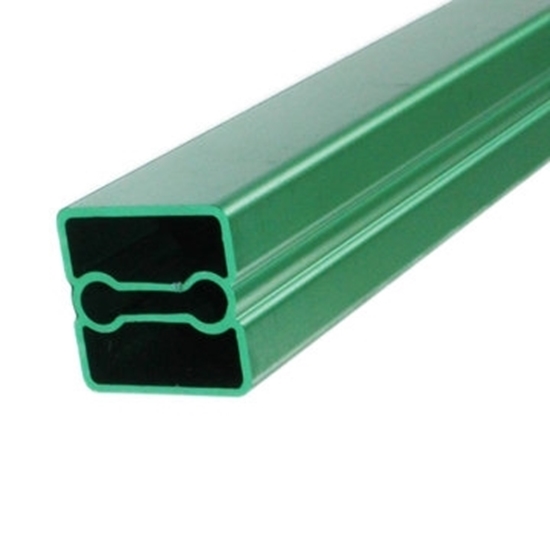

Peanut Extrusion is the 1"x1" installment of our easy-to-use structure system. The profile of this extrusion looks like a peanut, and has two holes sized for 1/4-20 thread-forming screws. The added mid-spans are positioned to flank a pair of bolts that self thread into an adjoining piece pf Peanut Extrusion. These spans prevent the extrusion from getting crushed by over-tightening. Enjoy the ease of creating rigid corner joints without gussets, with a closed profile that prevents dust and debris build up. Whether you are making a table in your shop or a strong frame for a robot, this extrusion is the one for you!
Walnut Extrusion is the 2"x1" iteration of the Peanut profile.
Specifications
- Height: 1.0 in.
- Hole Size: Sized for 1/4-20 Thread-Forming Screw
- Length: Selectable Above (+/- 1")
- Material: 6063-T6 Aluminum
- Wall Thickness: 0.050 in.
- Weight Per Foot: 0.325 Pounds
- Width: 1.0 in.
Documents
CAD File(s)
am-3090-1 One Foot Peanut Extrusion.STEP
Layout Print(s)
am-3090 Peanut Extrusion.PDF
