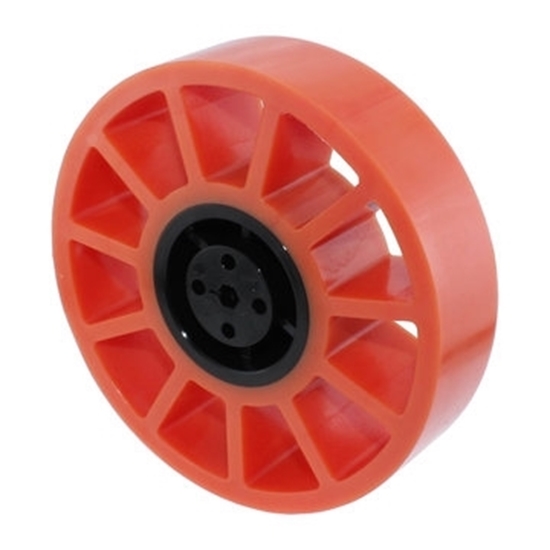

4" Compliant Wheel, 5mm Hex Bore, 40A Durometer, Orange

Soyez le premier a tester ce produit

Compliant wheels are not intended for moving robots, but moving objects. Compliant wheels give way to allow rigid objects to be manipulated easily. A line of multiple wheels on a driven hex axle creates a very effective roller that ignores variations in the objects being driven. This makes for high-performance intakes and internal conveyors.

Different durometer ratings give each wheel unique characteristics. Green wheels (35A durometer) are the softest and most compliant around objects, while orange (40A), maroon (45A), blue (50A), and black (60A) wheels are increasingly firm. The increased firmness also allows the latter wheels to carry a higher RPM rating. Check out the downloads tab for a chart showing wheels and their maximum RPM.

Please note maroon wheels are only intended for use in FTC. If more powerful motors are used to drive it the spokes may fail.

Specifications

Bore: 1/2 in. Hex, 3/8 in. Hex, Nub Bore, 5 mm Hex
Diameter: 4 in.
Durometer: 35A (Green), ⠀40A (Orange), ⠀45A (Maroon), ⠀50A (Blue), ⠀60A (Black), ⠀80A (Gray)
Hole Pattern: Qty 4 3.5 mm Holes on a 16 mm Circle for 8 mm bore wheels
Material: TPU, ⠀Polycarbonate
Maximum RPM: 3000-9000
Weight: 0.228 - 0.269 Lbs
Width: 1 in.

Documents

Layout Print(s)

am-3562 4IN 375Hex Compliant Wheel REV3.PDF

am-3563 4IN 8mm Compliant Wheel REV4.PDF

am-3480 4IN 500Hex Compliant Wheel REV3.PDF

am-4538 4IN 5mm Hex Compliant Wheel.PDF

CAD File(s)

am-3562 4IN 375Hex Bore Compliant Wheel REV2.STEP

am-3563 4IN 8mm Round Compliant Wheel REV2.STEP

am-3480 4IN 500Hex Bore Compliant Wheel REV2.STEP

am-4538 4IN 5mm Hex Compliant Wheel.STEP

Guide(s)

4 inch Compliant Wheel Expansion.pdf

# Pièce: am-4538_orange

$14,00

Quantité:

Commentaires

Écrivez votre propre commentaire

Le produit peut être examinée que après l'achat
Seul les utilisateurs enregistrés peuvent écrire une critique

A également acheté

775 RedLine Motor

#am-3775a

$27,00

( 11 En stock)

This updated version of the AndyMark 775 RedLine Motor is an even faster and more powerful version of this popular 775-class motor platform. With a power rating of up to 382W, this motor is capable of delivering even more immense power in the same small lightweight package over the previous version. This ball-bearing supported, air cooled motor is best used in high-speed applications where the motor will not be stalled for long periods such as shooters, conveyors, and intake mechanisms. With sufficient care and attention to your application's traction limit, this motor can be effective in FRC drive applications as well.

Product Usage:

Motors need air flow to keep cool. A hot motor won't last nearly as long, or deliver the power it once did new. To keep a RedLine cool and in great shape, use a 775 Vent Plate Spacer, am-3650 when mounting to a custom gearbox. All of our gearboxes that use this motor have vent plate spacers included with your purchase or include sufficient venting machined in.

Useful Additional Parts:

RedLine Encoder Kit, am-3773
12 Tooth 32 DP Pinion, am-3657
M4 x 0.7 10 mm Mounting Screw, am-1264
Vent Plate for keeping this motor cool and functional - 775 Vent Plate Spacer, am-3650
Fantastic Gearbox Pairing Options:

Motor has the following information laser etched on the flux ring:
Manufacturer Part number: DF-30F-2003
Logo: AndyMark Logo
AndyMark Part Number: am-3775a
Voltage: 12VDC
Date Code: YYWWD

Specifications

Bolt Pattern: 2 M4x0.7 Holes on a 29 mm diameter bolt circle
Diameter: 1.744 in.
Length: 3.455 in.
Maximum Power: 380 Watts (+/- 10%)
No Load Current: 3.8 A
No Load RPM: 21020 RPM (+/- 10%)
Output Shaft Diameter: 5 mm
Output Shaft Length: 0.346 in.
Stall Current: 130 A
Stall Torque: 0.7 N-m (6.2 in-lbs) (+/- 10%)
Voltage: 12 VDC
Weight: 0.806 lb
